Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
100B510JT500XT1KCAP CER 51PF 500V P90 1111 |
2,313 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 51 pF | ±5% | 500V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
.jpg)
|
222523K65P60BQTAF9LMCAP CER 5.6PF 3.6KV C0G/NP0 2225 |
425 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 5.6 pF | ±0.1pF | 3600V (3.6kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.224" L x 0.248" W (5.70mm x 6.30mm) | - | 0.165" (4.20mm) | - | - |
|
M39014/02-1407VCAP CER AXIAL |
842 |
|
Datasheet |
Military, MIL-PRF-39014, CKR06 | Bulk | Active | 1 µF | ±10% | 50V | BX | -55°C ~ 125°C | - | - | High Reliability | M (1%) | Through Hole | Radial | 0.290" L x 0.090" W (7.37mm x 2.29mm) | 0.300" (7.62mm) | - | 0.200" (5.08mm) | Straight |
|
C2220X333JDGACAUTOCAP CER 2220 33NF 1000V C0G 5% |
1,165 |
|
Datasheet |
SMD Auto C0G HV Flex | Tape & Reel (TR) | Active | 0.033 µF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.232" L x 0.197" W (5.90mm x 5.00mm) | - | 0.106" (2.70mm) | - | - |
.jpg)
|
700A102KW50XT1KCAP CER 1000PF 50V C0G/NP0 0505 |
3,370 |
|
Datasheet |
ATC 700A | Tape & Reel (TR) | Active | 1000 pF | ±10% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0505 (1313 Metric) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | - | 0.057" (1.45mm) | - | - |
|
|
100B820JW500XT1KCAP CER 82PF 500V P90 1111 |
5,885 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 82 pF | ±5% | 500V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|

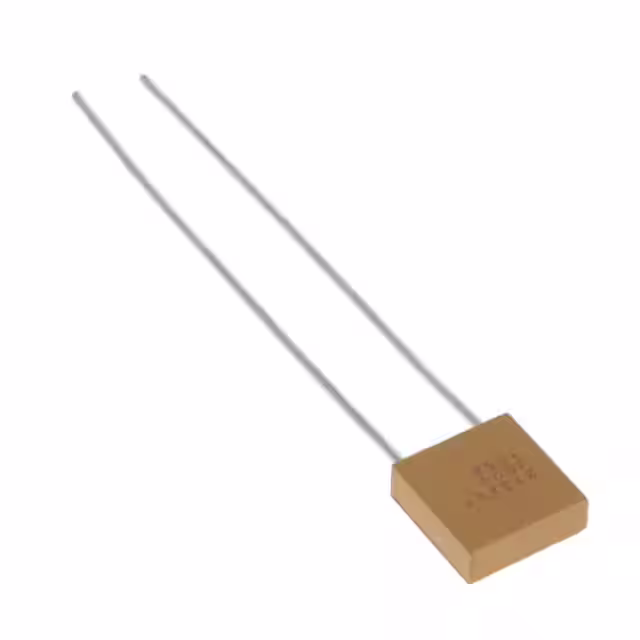

M39014/02-1411CAP CER 1UF 50V 10% RADIAL |
107 |
|
Datasheet |
Military, MIL-PRF-39014, CKR06 | Bag | Active | 1 µF | ±10% | 50V | BX | -55°C ~ 125°C | - | - | High Reliability | P (0.1%) | Through Hole | Radial | 0.290" L x 0.090" W (7.37mm x 2.29mm) | 0.300" (7.62mm) | - | 0.200" (5.08mm) | Straight |
|
|
100B160FT500XT1KCAP CER 16PF 500V P90 1111 |
1,964 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 16 pF | ±1% | 500V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
SR505C105KARCAP CER 1UF 50V X7R RADIAL |
430 |
|
Datasheet |
SkyCap® SR | Bulk | Active | 1 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.500" L x 0.200" W (12.70mm x 5.08mm) | 0.560" (14.22mm) | - | 0.400" (10.16mm) | Straight |
|
CKC21C683FWGACAUTOCAP CER 68NF 650V C0G 2220 |
252 |
|
Datasheet |
KC Link Auto C0G | Tape & Reel (TR) | Active | 0.068 µF | ±1% | 650V | C0G, NP0 | -55°C ~ 150°C | Low ESL, High Voltage, High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.087" (2.20mm) | - | - |
|
|
800A1R5BT250XT4KCAP CER 1.5PF 250V C0G/NP0 0505 |
9,088 |
|
Datasheet |
ATC 800A | Tape & Reel (TR) | Active | 1.5 pF | ±0.1pF | 250V | C0G, NP0 | -55°C ~ 125°C | Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0505 (1313 Metric) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | - | 0.057" (1.45mm) | - | - |
|
M3253504E1Z103JZMBTRCAP CER 10000PF 25V C0G/NP0 0805 |
1,892 |
|
Datasheet |
Military, MIL-PRF-32535 | Tape & Reel (TR) | Active | 10000 pF | ±5% | 25V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | High Reliability | M (1%) | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.050" W (2.01mm x 1.27mm) | - | 0.060" (1.52mm) | - | - |
|
|
100B820GT500XT1KCAP CER 82PF 500V P90 1111 |
918 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 82 pF | ±2% | 500V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
CKC21C823FWGACAUTOCAP CER 82NF 650V C0G 2220 |
866 |
|
Datasheet |
KC Link Auto C0G | Tape & Reel (TR) | Active | 0.082 µF | ±1% | 650V | C0G, NP0 | -55°C ~ 150°C | Low ESL, High Voltage, High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.087" (2.20mm) | - | - |
|
ES2211N471K502NTMCAP CER 470PF 250VAC C0G 2211 |
3,623 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | 470 pF | ±10% | 250VAC | C0G, NP0 | -55°C ~ 125°C | - | X1, Y2 | Safety | - | Surface Mount, MLCC | 2211 (5728 Metric) | 0.220" L x 0.110" W (5.58mm x 2.79mm) | - | 0.110" (2.79mm) | - | - |
|
100A390FW150XT1KCAP CER 39PF 150V P90 0505 |
1,935 |
|
Datasheet |
Porcelain Superchip® ATC 100A | Tape & Reel (TR) | Active | 39 pF | ±1% | 150V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0505 (1313 Metric) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | - | 0.057" (1.45mm) | - | - |
|
|
C2220Y103JDGACAUTOCAP CER 10000PF 1KV C0G 2220 |
768 |
|
Datasheet |
SMD Auto C0G FF | Tape & Reel (TR) | Active | 10000 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | Floating Electrode, Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.232" L x 0.197" W (5.90mm x 5.00mm) | - | 0.087" (2.20mm) | - | - |
|
|
100B181JTN300XT1KCAP CER 180PF 300V P90 1111 |
2,305 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 180 pF | ±5% | 300V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
KTJ500B336M76BFT00CAP CER 33UF 50V X7R SMD |
277 |
|
Datasheet |
KTJ, NTJ | Tape & Reel (TR) | Active | 33 µF | ±20% | 50V | X7R | -55°C ~ 125°C | Low ESL (Stacked) | - | Bypass, Decoupling | - | Surface Mount, MLCC | Stacked SMD, 2 J-Lead | 0.307" L x 0.260" W (7.80mm x 6.60mm) | - | 0.335" (8.50mm) | - | J-Lead |
|
|
800B8R2JT500XT1KCAP CER 8.2PF 500V NP0 1111 |
2,949 |
|
Datasheet |
ATC 800B | Tape & Reel (TR) | Active | 8.2 pF | ±5% | 500V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.070" (1.78mm) | - | - |
