Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
100B1R0BW500XT1KCAP CER 1PF 500V P90 1111 |
15,802 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 1 pF | ±0.1pF | 500V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
|
800B1R8BT500XT1KCAP CER 1.8PF 500V C0G/NP0 1111 |
11,175 |
|
Datasheet |
ATC 800B | Tape & Reel (TR) | Active | 1.8 pF | ±0.1pF | 500V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.070" (1.78mm) | - | - |
|
|
100B1R5BW500XT1KCAP CER 1.5PF 500V P90 1111 |
9,121 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 1.5 pF | ±0.1pF | 500V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
M39014/22-0776CAP CER 10000PF 100V X7R 2-DIP |
200 |
|
Datasheet |
Military, MIL-PRF-39014, CKR22 | Tube | Active | 10000 pF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | High Reliability | R (0.01%) | Through Hole | 2-DIP | 0.260" L x 0.092" W (6.60mm x 2.34mm) | 0.175" (4.45mm) | - | 0.325" (8.25mm) | - |
|

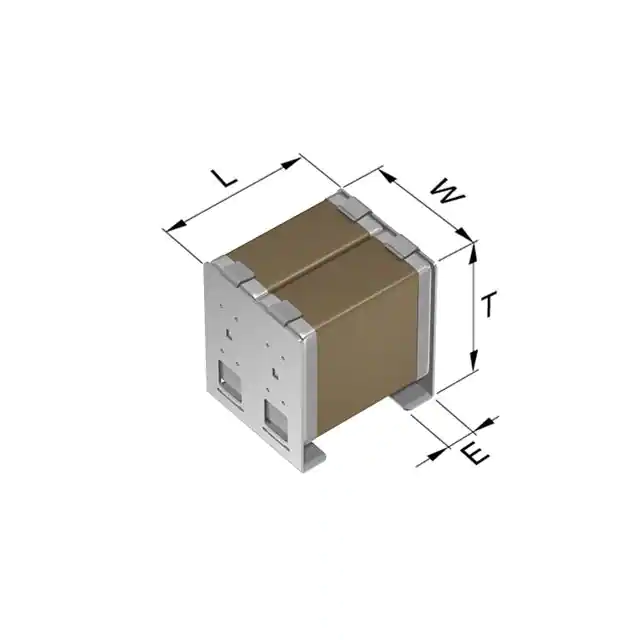

CAA572X7T2J105M640LHCAP CER 1UF 630V X7T SMD |
495 |
|
Datasheet |
MEGACAP, CA | Tape & Reel (TR) | Active | 1 µF | ±20% | 630V | X7T | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | Stacked SMD, 2 J-Lead | 0.236" L x 0.197" W (6.00mm x 5.00mm) | - | 0.268" (6.80mm) | - | J-Lead |
|
CAA572X7T2V225M640LHCAP CER 2.2UF 350V X7T SMD |
252 |
|
Datasheet |
MEGACAP, CA | Tape & Reel (TR) | Active | 2.2 µF | ±20% | 350V | X7T | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | Stacked SMD, 2 L-Lead | 0.236" L x 0.220" W (6.00mm x 5.60mm) | - | 0.272" (6.90mm) | - | J-Lead |
|
|
100B4R3BW500XT1KCAP CER 4.3PF 500V P90 1111 |
488 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 4.3 pF | ±0.1pF | 500V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
|
100B181JW300XTCAP CER 180PF 300V P90 1111 |
623 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 180 pF | ±5% | 300V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
.jpg)
|
222523K68P20BQTAF9LMCAP CER 8.2PF 3.6KV C0G/NP0 2225 |
1,189 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 8.2 pF | ±0.1pF | 3600V (3.6kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.224" L x 0.248" W (5.70mm x 6.30mm) | - | 0.165" (4.20mm) | - | - |
|
KTJ250B686M76BFT00CAP CER 68UF 25V X7R SMD |
494 |
|
Datasheet |
KTJ, NTJ | Tape & Reel (TR) | Active | 68 µF | ±20% | 25V | X7R | -55°C ~ 125°C | Low ESL (Stacked) | - | Bypass, Decoupling | - | Surface Mount, MLCC | Stacked SMD, 2 J-Lead | 0.307" L x 0.260" W (7.80mm x 6.60mm) | - | 0.335" (8.50mm) | - | J-Lead |
|
|
222523K69P10BQTAF9LMCAP CER 9.1PF 3.6KV C0G/NP0 2225 |
168 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 9.1 pF | ±0.1pF | 3600V (3.6kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.224" L x 0.248" W (5.70mm x 6.30mm) | - | 0.165" (4.20mm) | - | - |
-4,2mm-Tan.jpg)
|
222523K66P20BQTAF9LMCAP CER 6.2PF 3.6KV C0G/NP0 2225 |
163 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 6.2 pF | ±0.1pF | 3600V (3.6kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.224" L x 0.248" W (5.70mm x 6.30mm) | - | 0.165" (4.20mm) | - | - |
-4,2mm-Tan.jpg)
|
2220YA250472KETB16CAP CER 4700PF 250V X7R 2220 |
9,284 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Not For New Designs | 4700 pF | ±10% | 250V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200, X1, Y2 | Safety, Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.098" (2.50mm) | - | - |
|
|
100B560GT500XT1KCAP CER 56PF 500V P90 1111 |
1,406 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 56 pF | ±2% | 500V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
.jpg)
|
800A5R6BT250XT4KCAP CER 5.6PF 250V C0G/NP0 0505 |
3,870 |
|
Datasheet |
ATC 800A | Tape & Reel (TR) | Active | 5.6 pF | ±0.1pF | 250V | C0G, NP0 | -55°C ~ 125°C | Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0505 (1313 Metric) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | - | 0.057" (1.45mm) | - | - |
|
|
100B360JP500XTCAP CER 36PF 500V P90 1111 |
623 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 36 pF | ±5% | 500V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
|
100B151JT300XT1KCAP CER 150PF 300V P90 1111 |
6,980 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 150 pF | ±5% | 300V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
|
100B270JP500XT1KCAP CER 27PF 500V P90 1111 |
1,971 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 27 pF | ±5% | 500V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
2220Y1K50473KZTCAP CER 0.047UF 1.5KV 2220 |
625 |
|
Datasheet |
Hiteca™ | Tape & Reel (TR) | Active | 0.047 µF | ±10% | 1500V (1.5kV) | - | -55°C ~ 125°C | Low ESL, Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.157" (4.00mm) | - | - |
|
|
100B2R7BT500XTCAP CER 2.7PF 500V P90 1111 |
2,829 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 2.7 pF | ±0.1pF | 500V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
