Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-1,45mm.jpg)
|
HMK432B7155KM-TCAP CER 1.5UF 100V X7R 1812 |
450 |
|
Datasheet |
M | Tape & Reel (TR) | Active | 1.5 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.106" (2.70mm) | - | - |
|
C1812X335K1RACTUCAP CER 3.3UF 100V X7R 1812 |
450 |
|
Datasheet |
SMD Comm X7R Flex | Tape & Reel (TR) | Active | 3.3 µF | ±10% | 100V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.083" (2.10mm) | - | - |
-0,61mm.jpg)
|
LD16ZC224KAB2ACAP CER 0.22UF 10V X7R 0306 |
4,995 |
|
Datasheet |
LD | Tape & Reel (TR) | Active | 0.22 µF | ±10% | 10V | X7R | -55°C ~ 125°C | Low ESL (Reverse Geometry) | - | General Purpose | - | Surface Mount, MLCC | 0306 (0816 Metric) | 0.032" L x 0.063" W (0.81mm x 1.60mm) | - | 0.024" (0.61mm) | - | - |
|
|
VPDR501W473K1GV001ECAP CER 0.047UF 500V X7R 1812 |
2,862 |
|
Datasheet |
HVS-PME | Tape & Reel (TR) | Active | 0.047 µF | ±10% | 500V | X7R | -55°C ~ 125°C | High Voltage | - | SMPS Filtering | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.125" W (4.50mm x 3.18mm) | - | 0.110" (2.80mm) | - | - |
-3,20x1,60x1,80mm.jpg)
|
C1206X475K8RAC7800CAP CER 4.7UF 10V X7R 1206 |
2,000 |
|
Datasheet |
SMD Comm X7R Flex | Tape & Reel (TR) | Active | 4.7 µF | ±10% | 10V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
-2,80mm.jpg)
|
18121C334KAZ2ACAP CER 0.33UF 100V X7R 1812 |
1,786 |
|
Datasheet |
FLEXITERM® | Tape & Reel (TR) | Active | 0.33 µF | ±10% | 100V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.090" (2.29mm) | - | - |
|
|
GCM32E5C3A223JX0ALCAP CER 0.022UF 1KV C0G/NP0 1210 |
895 |
|
Datasheet |
GCM | Tape & Reel (TR) | Active | 0.022 µF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.112" (2.85mm) | - | - |
|
GRM32D5C2J123GWA1LCAP CER 0.012UF 630V C0GNP0 1210 |
890 |
|
Datasheet |
GRM | Tape & Reel (TR) | Active | 0.012 µF | ±2% | 630V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.089" (2.25mm) | - | - |
|
|
564R2DF0T22CAP CER 220PF 2KV N2800 RADIAL |
783 |
|
Datasheet |
Cera-Mite 564R | Bulk | Active | 220 pF | ±10% | 2000V (2kV) | N2800 | -25°C ~ 105°C | Low Dissipation Factor | - | General Purpose | - | Through Hole | Radial, Disc | 0.291" Dia (7.40mm) | 0.480" (12.20mm) | - | 0.252" (6.40mm) | Straight |
|
|
C1210C272KCGACTUCAP CER 2700PF 500V C0G/NP0 1210 |
397 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 2700 pF | ±10% | 500V | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
.jpg)
|

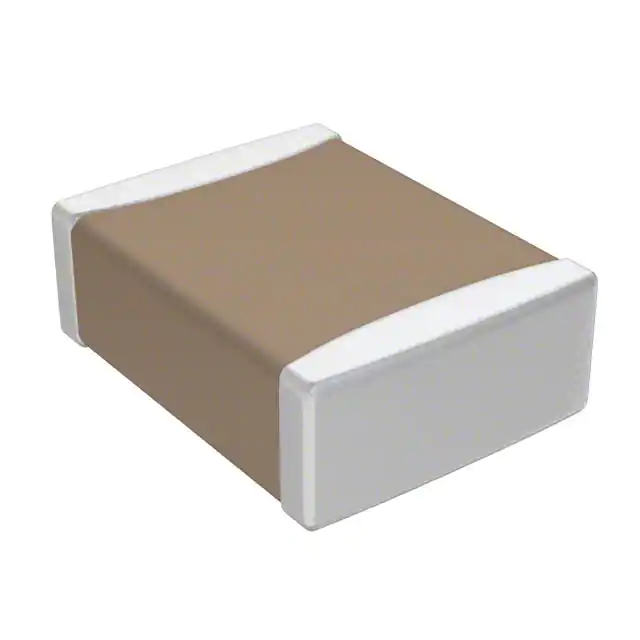

KTF500B225M32NHT00CAP CER 2.2UF 50V X7R 1210 |
1,600 |
|
Datasheet |
NTF | Tape & Reel (TR) | Active | 2.2 µF | ±20% | 50V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.102" (2.60mm) | - | - |
|
|
1812HC102KAZ2ACAP CER SMD |
494 |
|
Datasheet |
FLEXITERM® | Tape & Reel (TR) | Active | 1000 pF | ±10% | 3000V (3kV) | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | - | - | - |
|
|
1812HC222KAZ2ACAP CER SMD |
220 |
|
Datasheet |
FLEXITERM® | Tape & Reel (TR) | Active | 2200 pF | ±10% | 3000V (3kV) | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | - | - | - |
|
|
564RAA602EF221MA16CAP CER 220PF 6KV RADIAL |
170 |
|
Datasheet |
Cera-Mite 564R | Bulk | Active | 220 pF | ±20% | 6000V (6kV) | - | -25°C ~ 105°C | Low Dissipation Factor | - | General Purpose | - | Through Hole | Radial, Disc | - | - | - | - | Straight |
|
|
KGA05AR50J104MHCAP CER 0.1UF 6.3V X5R 0204 |
17,960 |
|
Datasheet |
LG12 (LGA) | Tape & Reel (TR) | Active | 0.1 µF | ±20% | 6.3V | X5R | -55°C ~ 85°C | Low ESL (Reverse Geometry) | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0204 (0510 Metric) | 0.020" L x 0.039" W (0.50mm x 1.00mm) | - | 0.022" (0.55mm) | - | - |
.jpg)
|
MM055C104KCZ2ACAP CER 0.1UF 50V X7R 0805 |
7,725 |
|
Datasheet |
MM | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | Medical, Non-Critical | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | - | 0.029" (0.74mm) | - | - |
-2,30mm.jpg)
|
GRM43QR72E154KW01KCAP CER 0.15UF 250V X7R 1812 |
3,945 |
|
Datasheet |
GRM | Tape & Reel (TR) | Active | 0.15 µF | ±10% | 250V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.059" (1.50mm) | - | - |
|
|
1812HC681KAT2ACAP CER 680PF 3KV X7R 1812 |
1,922 |
|
Datasheet |
KGM - HV | Tape & Reel (TR) | Active | 680 pF | ±10% | 3000V (3kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.181" L x 0.126" W (4.60mm x 3.20mm) | - | 0.087" (2.21mm) | - | - |
|
562R10TSD20CAP CER 2000PF 1KV X5F RADIAL |
1,363 |
|
Datasheet |
Cera-Mite 562R | Bulk | Active | 2000 pF | ±10% | 1000V (1kV) | X5F | -55°C ~ 105°C | - | - | General Purpose | - | Through Hole | Radial, Disc | 0.488" Dia (12.40mm) | 0.613" (15.58mm) | - | 0.374" (9.50mm) | Straight |
-3,20x1,60x1,90mm.jpg)
|
C1206W333KBRAC7800CAP CER 0.033UF 630V X7R 1206 |
771 |
|
Datasheet |
ArcShield SMD Comm X7R HV | Tape & Reel (TR) | Active | 0.033 µF | ±10% | 630V | X7R | -55°C ~ 125°C | Soft Termination, High Voltage, ArcShield™ | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.075" (1.90mm) | - | - |
