Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VPDP102W183K1GV001ECAP CER 0.018UF 1KV X7R 1808 |
629 |
|
Datasheet |
HVS-PME | Tape & Reel (TR) | Active | 0.018 µF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | High Voltage | - | SMPS Filtering | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.185" L x 0.080" W (4.70mm x 2.03mm) | - | 0.085" (2.16mm) | - | - |
-2,80mm.jpg)
|
1812HC122KAT2ACAP CER 1200PF 3KV X7R 1812 |
230 |
|
Datasheet |
KGM - HV | Tape & Reel (TR) | Active | 1200 pF | ±10% | 3000V (3kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.181" L x 0.126" W (4.60mm x 3.20mm) | - | 0.087" (2.21mm) | - | - |
|
|
KGQ32DCG2A102KTCAP CER 1000PF 100V NP0 1210 |
3,960 |
|
Datasheet |
KGQ | Tape & Reel (TR) | Active | 1000 pF | ±10% | 100V | C0G, NP0 | -55°C ~ 125°C | Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.49mm) | - | 0.055" (1.40mm) | - | - |
|
|
C1210S272JDGACAUTOCAP CER 2700PF 1KV C0G/NP0 1210 |
1,864 |
|
Datasheet |
SMD Auto C0G FE | Tape & Reel (TR) | Active | 2700 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | Floating Electrode | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.130" L x 0.102" W (3.30mm x 2.60mm) | - | 0.110" (2.80mm) | - | - |
-3,20x1,60x0,88mm.jpg)
|
C1206C153J1GACAUTOCAP CER 0.015UF 100V C0G 1206 |
6,000 |
|
Datasheet |
SMD Auto C0G | Tape & Reel (TR) | Active | 0.015 µF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.035" (0.88mm) | - | - |
|
|
600L2R4AW200T4KCAP CER 2.4PF 200V NP0 0402 |
3,433 |
|
Datasheet |
ATC 600L | Tape & Reel (TR) | Active | 2.4 pF | ±0.05pF | 200V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.040" L x 0.020" W (1.02mm x 0.51mm) | - | 0.024" (0.60mm) | - | - |
|
|
C1206C392G5GACTUCAP CER 3900PF 50V C0G/NP0 1206 |
1,468 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 3900 pF | ±2% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.039" (1.00mm) | - | - |
|
|
GCM32E5C3A123JX01LCAP CER 0.012UF 1KV C0G/NP0 1210 |
900 |
|
Datasheet |
GCM | Tape & Reel (TR) | Active | 0.012 µF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.104" (2.65mm) | - | - |
|
|
GRM32E5C3A123JWA1LCAP CER 0.012UF 1KV C0G/NP0 1210 |
840 |
|
Datasheet |
GRM | Tape & Reel (TR) | Active | 0.012 µF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.104" (2.65mm) | - | - |
-2,70mm-C-Series.jpg)
|
C5750X7R2A684M160KACAP CER 0.68UF 100V X7R 2220 |
2,169 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 0.68 µF | ±20% | 100V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.071" (1.80mm) | - | - |
|
|
KGM31AR71E106MUCAP CER 10UF 25V X7R 1206 |
903 |
|
Datasheet |
KGM - X7R | Tape & Reel (TR) | Active | 10 µF | ±20% | 25V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.075" (1.90mm) | - | - |
|
W2L1ZC104MAT1SCAP CER 0.1UF 10V X7R 0508 |
6,960 |
|
Datasheet |
IDC, W | Tape & Reel (TR) | Active | 0.1 µF | ±20% | 10V | X7R | -55°C ~ 125°C | Low ESL (Multi-Terminal) | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0508 (1220 Metric) | 0.050" L x 0.080" W (1.27mm x 2.03mm) | - | 0.022" (0.55mm) | - | - |
-2,80mm-C-Series.jpg)
|
C3225X7S1H475K230AECAP CER 4.7UF 50V X7S 1210 |
1,710 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 4.7 µF | ±10% | 50V | X7S | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.098" (2.50mm) | - | - |
|
|
FK22X7R1C226MR000CAP CER 22UF 16V X7R RADIAL |
1,633 |
|
Datasheet |
FK | Bulk | Not For New Designs | 22 µF | ±20% | 16V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.295" L x 0.157" W (7.50mm x 4.00mm) | 0.315" (8.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
|
30LVT47-RCAP CER 470PF 400VAC X7R RADIAL |
783 |
|
Datasheet |
Cera-Mite 30LV | Bulk | Active | 470 pF | ±10% | 400VAC | X7R | -30°C ~ 125°C | - | X1, Y2 | Safety | - | Through Hole | Radial, Disc | 0.331" Dia (8.40mm) | 0.457" (11.60mm) | - | 0.252" (6.40mm) | Straight |
-2.6.jpg)
|
CGA8P2C0G2A683J250KACAP CER 0.068UF 100V C0G 1812 |
609 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 0.068 µF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.110" (2.80mm) | - | - |
Series.jpg)
|

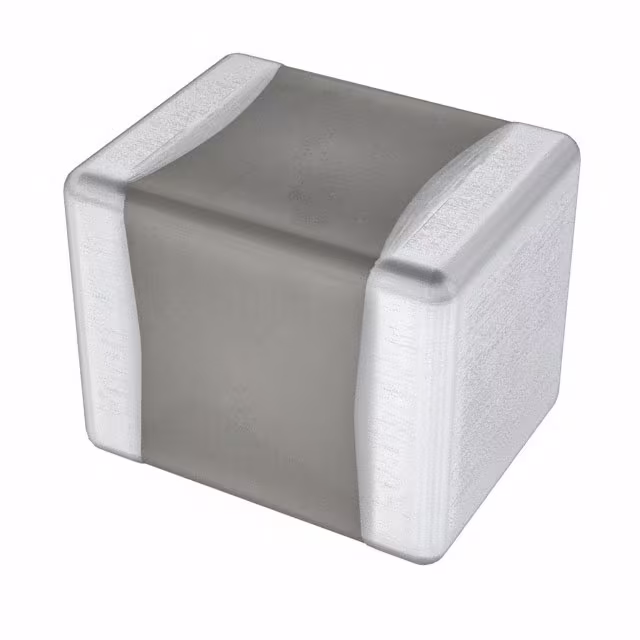

KVF250L225M32NHT00CAP CER 2.2UF 25V X8L 1210 |
560 |
|
Datasheet |
KVF | Tape & Reel (TR) | Active | 2.2 µF | ±20% | 25V | X8L | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.102" (2.60mm) | - | - |
-4,70x2,00x2,15mm.jpg)
|
C1808C100KHGAC7800CAP CER 10PF 3KV C0G/NP0 1808 |
1,964 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 10 pF | ±10% | 3000V (3kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.185" L x 0.079" W (4.70mm x 2.00mm) | - | 0.069" (1.75mm) | - | - |
|
|
C1210C471KDGACAUTOCAP CER 470PF 1KV C0G/NP0 1210 |
1,639 |
|
Datasheet |
SMD Auto C0G HV | Tape & Reel (TR) | Active | 470 pF | ±10% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.075" (1.90mm) | - | - |
|
|
KVF500L105M32NHT00CAP CER 1UF 50V X8L 1210 |
1,630 |
|
Datasheet |
KVF | Tape & Reel (TR) | Active | 1 µF | ±20% | 50V | X8L | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.102" (2.60mm) | - | - |
