Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
564R30TSSD10CAP CER 1000PF 3KV Y5S RADIAL |
1,000 |
|
Datasheet |
Cera-Mite 564R | Bulk | Active | 1000 pF | ±20% | 3000V (3kV) | Y5S | -25°C ~ 105°C | - | - | General Purpose | - | Through Hole | Radial, Disc | 0.402" Dia (10.20mm) | 0.591" (15.00mm) | - | 0.252" (6.40mm) | Straight |
|
GRM32D5C2J153GWA1LCAP CER 0.015UF 630V C0GNP0 1210 |
831 |
|
Datasheet |
GRM | Tape & Reel (TR) | Active | 0.015 µF | ±2% | 630V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.089" (2.25mm) | - | - |
|
SR655C105KAATR1CAP CER 1UF 50V X7R RADIAL |
439 |
|
Datasheet |
SkyCap® SR | Tape & Reel (TR) | Active | 1 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.300" L x 0.150" W (7.62mm x 3.81mm) | 0.400" (10.16mm) | - | 0.200" (5.08mm) | Formed Leads - Kinked |
 2.5.jpg)
|
CGA6M3X8R2A474M200ABCAP CER 0.47UF 100V X8R 1210 |
409 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 0.47 µF | ±20% | 100V | X8R | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.087" (2.20mm) | - | - |
-2,00mm-Tan.jpg)
|
1210Y5000104KSTCAP CER 0.1UF 500V X7R 1210 |
3,900 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 500V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.079" (2.00mm) | - | - |
|
FA22X7R1H335KNU06CAP CER 3.3UF 50V X7R RADIAL |
2,470 |
|
Datasheet |
FA | Cut Tape (CT) | Not For New Designs | 3.3 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.295" L x 0.177" W (7.50mm x 4.50mm) | 0.335" (8.50mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
|
FA22X7R2E474KNU06CAP CER 0.47UF 250V X7R RADIAL |
2,375 |
|
Datasheet |
FA | Cut Tape (CT) | Active | 0.47 µF | ±10% | 250V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.295" L x 0.177" W (7.50mm x 4.50mm) | 0.335" (8.50mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
KGF43GR71H474KVCAP CER 0.47UF 50V X7R 1812 |
2,192 |
|
Datasheet |
FLEXITERM® | Tape & Reel (TR) | Active | 0.47 µF | ±10% | 50V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.040" (1.02mm) | - | - |
|
|
C1812C333MCRACTUCAP CER 0.033UF 500V X7R 1812 |
1,850 |
|
Datasheet |
SMD Comm X7R HV | Tape & Reel (TR) | Active | 0.033 µF | ±20% | 500V | X7R | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.061" (1.55mm) | - | - |
|
FA11NP02A683JNU06CAP CER 0.068UF 100V NP0 RADIAL |
1,486 |
|
Datasheet |
FA | Cut Tape (CT) | Active | 0.068 µF | ±5% | 100V | C0G, NP0 | -55°C ~ 150°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.217" L x 0.157" W (5.50mm x 4.00mm) | 0.276" (7.00mm) | - | 0.098" (2.50mm) | Formed Leads |
|
FA20NP02A683JNU06CAP CER 0.068UF 100V NP0 RADIAL |
1,460 |
|
Datasheet |
FA | Cut Tape (CT) | Active | 0.068 µF | ±5% | 100V | C0G, NP0 | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.217" L x 0.157" W (5.50mm x 4.00mm) | 0.276" (7.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
FA22X7R1H335KNU00CAP CER 3.3UF 50V X7R RADIAL |
1,019 |
|
Datasheet |
FA | Bulk | Not For New Designs | 3.3 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.295" L x 0.177" W (7.50mm x 4.50mm) | 0.335" (8.50mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
-3,50mm_BN.jpg)
|
885012010003CAP CER 10000PF 25V C0G/NP0 1812 |
989 |
|
Datasheet |
WCAP-CSGP | Tape & Reel (TR) | Active | 10000 pF | ±5% | 25V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.053" (1.35mm) | - | - |
|
|
562RX5FBA102EG102JCAP CER 1000PF 1KV X5F RADIAL |
987 |
|
Datasheet |
Cera-Mite 562R | Bulk | Active | 1000 pF | ±10% | 1000V (1kV) | X5F | -55°C ~ 105°C | - | - | General Purpose | - | Through Hole | Radial, Disc | - | - | - | - | Straight |
-3,20x1,60x1,35mm.jpg)
|
C1206X475K4RAC7800CAP CER 4.7UF 16V X7R 1206 |
487 |
|
Datasheet |
SMD Comm X7R Flex | Tape & Reel (TR) | Active | 4.7 µF | ±10% | 16V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | - | 0.053" (1.35mm) | - | - |
.jpg)
|
0402BB223K500YTCAP CER 0.022UF 50V X7R 0402 |
5,643 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 0.022 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.040" L x 0.020" W (1.02mm x 0.51mm) | - | 0.024" (0.61mm) | - | - |
|
|
CAN12X223KARACTUCAP CER 1206 22NF 250VAC X7R |
3,935 |
|
Datasheet |
CAN SMD Indust X7R | Tape & Reel (TR) | Active | 0.022 µF | ±10% | 250VAC | X7R | -55°C ~ 125°C | Low ESL, Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | - | 0.075" (1.90mm) | - | - |
|
SR151A101GARTR2CAP CER 100PF 100V C0G/NP0 RAD |
3,228 |
|
Datasheet |
SkyCap® SR | Tape & Reel (TR) | Active | 100 pF | ±2% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.150" L x 0.100" W (3.81mm x 2.54mm) | 0.150" (3.81mm) | - | 0.100" (2.54mm) | Straight |
.jpg)
|
MM055C224KCZ2ACAP CER 0.22UF 50V X7R 0805 |
1,896 |
|
Datasheet |
MM | Tape & Reel (TR) | Active | 0.22 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | Medical, Non-Critical | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | - | 0.029" (0.74mm) | - | - |
|

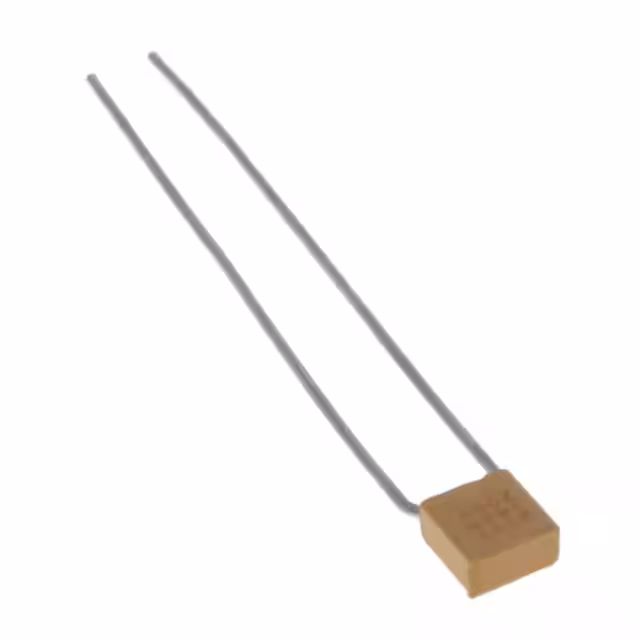

CK05BX820KCAP CER 82PF 200V BX RADIAL |
563 |
|
Datasheet |
Military, MIL-C-11015, CK05 | Bulk | Active | 82 pF | ±10% | 200V | BX | -55°C ~ 125°C | - | - | High Reliability | - | Through Hole | Radial | 0.190" L x 0.090" W (4.83mm x 2.29mm) | 0.245" (6.22mm) | - | 0.200" (5.08mm) | Formed Leads |
