Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WKO332MCPCJ0KRCAP CER 3300PF 440VAC Y5U RADIAL |
4,051 |
|
Datasheet |
WKO | Bulk | Active | 3300 pF | ±20% | 440VAC | Y5U (E) | -40°C ~ 125°C | - | X1, Y2 | Safety | - | Through Hole | Radial, Disc | 0.591" Dia (15.00mm) | 0.709" (18.00mm) | - | 0.295" (7.50mm) | Straight |
-3,20x2,50x2,80mm.jpg)
|
C1210C102JCGAC7800CAP CER 1000PF 500V NP0 1210 |
1,930 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 1000 pF | ±5% | 500V | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.075" (1.90mm) | - | - |
-4,50x6,40x1,55mm.jpg)
|
C1825C103KCRAC7800CAP CER 10000PF 500V X7R 1825 |
1,534 |
|
Datasheet |
SMD Comm X7R HV | Tape & Reel (TR) | Active | 10000 pF | ±10% | 500V | X7R | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.177" L x 0.252" W (4.50mm x 6.40mm) | - | 0.061" (1.55mm) | - | - |
|
C317C471KDR5TACAP CER 470PF 1KV X7R RADIAL |
548 |
|
Datasheet |
GoldMax 300 Comm X7R HV | Bulk | Active | 470 pF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial | 0.150" L x 0.120" W (3.81mm x 3.14mm) | 0.200" (5.08mm) | - | 0.200" (5.08mm) | Formed Leads |
|
C1812C682KGRACTUCAP CER 6800PF 2KV X7R 1812 |
498 |
|
Datasheet |
SMD Comm X7R HV | Tape & Reel (TR) | Active | 6800 pF | ±10% | 2000V (2kV) | X7R | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.106" (2.70mm) | - | - |
|
CBR08C240JAGACCAP CER 24PF 250V C0G/NP0 0805 |
6,378 |
|
Datasheet |
CBR-SMD RF C0G | Tape & Reel (TR) | Active | 24 pF | ±5% | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.037" (0.95mm) | - | - |
-LD-Series.jpg)
|

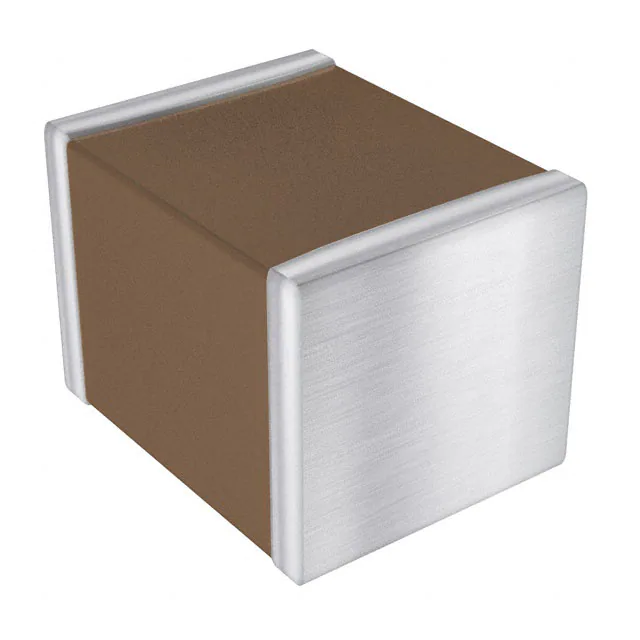

LD10YC475KAB2ACAP CER 4.7UF 16V X7R 1210 |
3,344 |
|
Datasheet |
LD | Tape & Reel (TR) | Active | 4.7 µF | ±10% | 16V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.090" (2.29mm) | - | - |
-2,54mm-Tan.jpg)
|
1808JA250561JGTS2XCAP CER 560PF 250VAC C0GNP0 1808 |
2,895 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 560 pF | ±5% | 250VAC | C0G, NP0 | -55°C ~ 125°C | DC Annex H, Humidity 3B Annex I, High Voltage | X2 | Safety | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.177" L x 0.079" W (4.50mm x 2.00mm) | - | 0.059" (1.50mm) | - | - |
|
FG22C0G2A104JNT06CAP CER 0.1UF 100V C0G RADIAL |
1,346 |
|
Datasheet |
FG | Cut Tape (CT) | Active | 0.1 µF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.295" L x 0.177" W (7.50mm x 4.50mm) | 0.335" (8.50mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
|
C1812C124KARACTUCAP CER 0.12UF 250V X7R 1812 |
1,000 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 0.12 µF | ±10% | 250V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.043" (1.10mm) | - | - |
-2.2.jpg)
|
CGA8M3X7S2A335K200KBCAP CER 3.3UF 100V X7S 1812 |
1,547 |
|
Datasheet |
CGA | Tape & Reel (TR) | Not For New Designs | 3.3 µF | ±10% | 100V | X7S | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.087" (2.20mm) | - | - |
-1,55mm-C-Series.jpg)
|
C4532C0G2A473K200KACAP CER 0.047UF 100V C0G 1812 |
790 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 0.047 µF | ±10% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.087" (2.20mm) | - | - |
|
|
KGM43FR72A684KVCAP CER 0.68UF 100V X7R 1812 |
648 |
|
Datasheet |
KGM - X7R | Tape & Reel (TR) | Active | 0.68 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.087" (2.21mm) | - | - |
|
|
C4532C0G1H224K320KACAP CER 0.22UF 50V C0G 1812 |
524 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 0.22 µF | ±10% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.138" (3.50mm) | - | - |
Series.jpg)
|

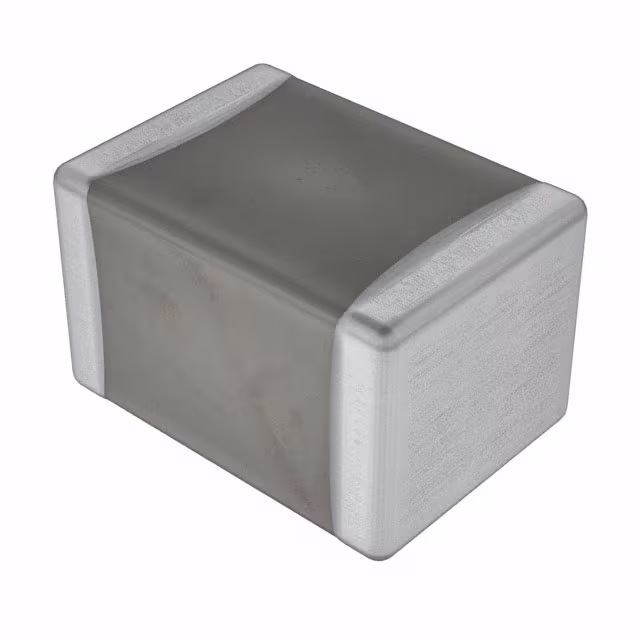

KVF500L225M43NHT00CAP CER 2.2UF 50V X8L 1812 |
259 |
|
Datasheet |
KVF | Tape & Reel (TR) | Active | 2.2 µF | ±20% | 50V | X8L | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.180" L x 0.126" W (4.57mm x 3.20mm) | - | 0.110" (2.80mm) | - | - |
|
|
C4532C0G1H154K250KACAP CER 0.15UF 50V C0G 1812 |
250 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 0.15 µF | ±10% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.110" (2.80mm) | - | - |
-1,00x0,50x0,55mm.jpg)
|
C0402H152J3GAFT1K0CAP CER 1500PF 25V C0G/NP0 0402 |
2,423 |
|
Datasheet |
SMD Indust C0G HT200C | Tape & Reel (TR) | Active | 1500 pF | ±5% | 25V | C0G, NP0 | -55°C ~ 200°C | Low ESL, High Temperature | - | Downhole | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
C1206C184J3JACTUCAP CER 0.18UF 25V U2J 1206 |
1,999 |
|
Datasheet |
SMD Comm U2J | Tape & Reel (TR) | Active | 0.18 µF | ±5% | 25V | U2J | -55°C ~ 125°C | Low ESL, Low Dissipation Factor | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.035" (0.88mm) | - | - |
|
GRM32D5C2J183GWA1LCAP CER 0.018UF 630V C0GNP0 1210 |
810 |
|
Datasheet |
GRM | Tape & Reel (TR) | Active | 0.018 µF | ±2% | 630V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.089" (2.25mm) | - | - |
|
RDER72J154K5B1H03BCAP CER 0.15UF 630V X7R RADIAL |
403 |
|
Datasheet |
RDE | Bulk | Active | 0.15 µF | ±10% | 630V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.295" L x 0.157" W (7.50mm x 4.00mm) | 0.315" (8.00mm) | - | 0.197" (5.00mm) | Straight |
