Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KR355LD7LP684KV01KCAP CER 0.68UF 450V X7T SMD |
2,000 |
|
Datasheet |
KR3 | Tape & Reel (TR) | Active | 0.68 µF | ±10% | 450V | X7T | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | SMD, J-Lead | 0.240" L x 0.209" W (6.10mm x 5.30mm) | - | 0.118" (3.00mm) | - | J-Lead |
|
FA22C0G2J473JNU06CAP CER 0.047UF 630V C0G RADIAL |
642 |
|
Datasheet |
FA | Cut Tape (CT) | Active | 0.047 µF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.295" L x 0.177" W (7.50mm x 4.50mm) | 0.335" (8.50mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
|
KR355LD7LP684KV01LCAP CER 0.68UF 450V X7T SMD |
387 |
|
Datasheet |
KR3 | Tape & Reel (TR) | Active | 0.68 µF | ±10% | 450V | X7T | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | SMD, J-Lead | 0.240" L x 0.209" W (6.10mm x 5.30mm) | - | 0.118" (3.00mm) | - | J-Lead |
|
CKG32KC0G2J223J335AHCAP CER 0.022UF 630V C0G SMD |
2,253 |
|
Datasheet |
MEGACAP, CKG | Tape & Reel (TR) | Active | 0.022 µF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | SMD, J-Lead | 0.142" L x 0.102" W (3.60mm x 2.60mm) | - | 0.136" (3.45mm) | - | J-Lead |
-2,70mm-C-Series.jpg)
|
C5750X7T2W684K200KACAP CER 0.68UF 450V X7T 2220 |
1,223 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 0.68 µF | ±10% | 450V | X7T | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.087" (2.20mm) | - | - |
|
|
CKG32KC0G2W223J335AHCAP CER 0.022UF 450V C0G SMD |
980 |
|
Datasheet |
MEGACAP, CKG | Tape & Reel (TR) | Active | 0.022 µF | ±5% | 450V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | SMD, J-Lead | 0.142" L x 0.102" W (3.60mm x 2.60mm) | - | 0.136" (3.45mm) | - | J-Lead |
|
|
C5750X7T2J474M250KCCAP CER 0.47UF 630V X7T 2220 |
973 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 0.47 µF | ±20% | 630V | X7T | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.110" (2.80mm) | - | - |
|
|
CKG32KC0G2E333J335AHCAP CER 0.033UF 250V C0G SMD |
928 |
|
Datasheet |
MEGACAP, CKG | Tape & Reel (TR) | Active | 0.033 µF | ±5% | 250V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | SMD, J-Lead | 0.142" L x 0.102" W (3.60mm x 2.60mm) | - | 0.136" (3.45mm) | - | J-Lead |
|
|
C5750X6S2W105M250KACAP CER 1UF 450V X6S 2220 |
506 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 1 µF | ±20% | 450V | X6S | -55°C ~ 105°C | - | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.110" (2.80mm) | - | - |
|
|
C5750X7T2J334M200KCCAP CER 0.33UF 630V X7T 2220 |
324 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 0.33 µF | ±20% | 630V | X7T | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.087" (2.20mm) | - | - |
|
|
C5750X7T2W684M200KACAP CER 0.68UF 450V X7T 2220 |
270 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 0.68 µF | ±20% | 450V | X7T | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.087" (2.20mm) | - | - |
-3,20mm-Tan.jpg)
|
1812Y6300104KJTCAP CER 0.1UF 630V X7R 1812 |
968 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 630V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.098" (2.50mm) | - | - |
|
|
C1825C154KCRACTUCAP CER 0.15UF 500V X7R 1825 |
1,992 |
|
Datasheet |
SMD Comm X7R HV | Tape & Reel (TR) | Active | 0.15 µF | ±10% | 500V | X7R | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.177" L x 0.252" W (4.50mm x 6.40mm) | - | 0.071" (1.80mm) | - | - |
|
|
C5750C0G2W104K280KACAP CER 0.1UF 450V C0G 2220 |
1,841 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 0.1 µF | ±10% | 450V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.122" (3.10mm) | - | - |
|
C1210C225M5N2CAUTOCAP CER 2.2UF 50V X8L SMD |
265 |
|
Datasheet |
KPS SMD Auto X8L HT150C | Tape & Reel (TR) | Active | 2.2 µF | ±20% | 50V | X8L | -55°C ~ 150°C | Low ESL (Stacked), High Temperature | AEC-Q200 | Automotive, Bypass, Decoupling, Boardflex Sensitive | - | Surface Mount, MLCC | Stacked SMD, 2 J-Lead | 0.138" L x 0.102" W (3.50mm x 2.60mm) | - | 0.248" (6.30mm) | - | J-Lead |
|
C340C684K1R5TACAP CER 0.68UF 100V X7R RADIAL |
128 |
|
Datasheet |
GoldMax 300 Comm X7R | Bulk | Active | 0.68 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.290" L x 0.160" W (7.36mm x 4.07mm) | 0.460" (11.68mm) | - | 0.200" (5.08mm) | Formed Leads |
|
1812Y1K00393KZTCAP CER 0.039UF 1KV 1812 |
893 |
|
Datasheet |
Hiteca™ | Tape & Reel (TR) | Active | 0.039 µF | ±10% | 1000V (1kV) | - | -55°C ~ 125°C | Low ESL, Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.126" (3.20mm) | - | - |
-3,20x2,50x0,88mm.jpg)
|
C1210C333J1GACAUTOCAP CER 0.033UF 100V C0G 1210 |
3,945 |
|
Datasheet |
SMD Auto C0G | Tape & Reel (TR) | Active | 0.033 µF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.035" (0.88mm) | - | - |
|
|
GRM32E5C3A223FWAAKCAP CER 0.022UF 1KV C0G/NP0 1210 |
3,480 |
|
Datasheet |
GRM | Tape & Reel (TR) | Active | 0.022 µF | ±1% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.112" (2.85mm) | - | - |
|

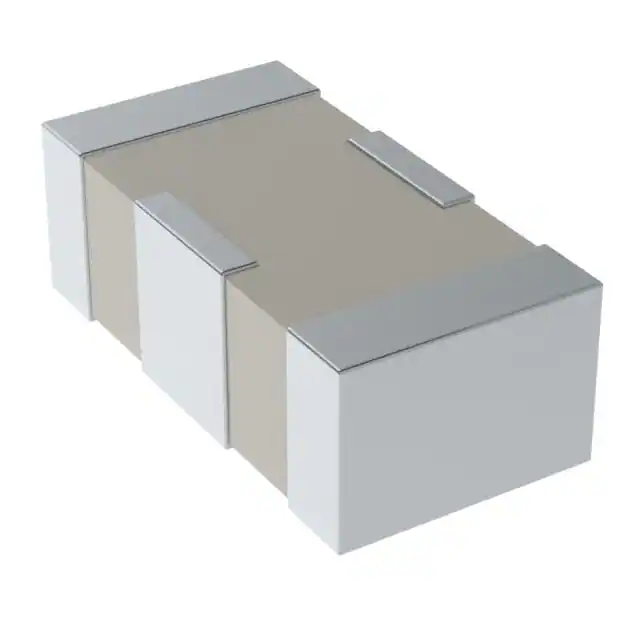

1206Y0500154METE03CAP CER 0.15UF 50V X7R 1206 |
1,870 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Active | 0.15 µF | ±20% | 50V | X7R | -55°C ~ 125°C | Low ESL (X2Y), Soft Termination | AEC-Q200 | Automotive, Bypass, Decoupling, Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.051" (1.30mm) | - | - |
