Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CKG45KC0G2E683J290JJCAP CER 0.068UF 250V C0G/NP0 SMD |
843 |
|
Datasheet |
CKG | Tape & Reel (TR) | Active | 0.068 µF | ±5% | 250V | C0G, NP0 | -55°C ~ 125°C | Low ESL | AEC-Q200 | Automotive, SMPS Filtering, Boardflex Sensitive | - | Surface Mount, MLCC | SMD, J-Lead | 0.197" L x 0.138" W (5.00mm x 3.50mm) | - | 0.118" (3.00mm) | - | J-Lead |
-3,20mm-Tan.jpg)
|
1812Y3K00221KNTCAP CER 220PF 3KV X8R 1812 |
371 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Active | 220 pF | ±10% | 3000V (3kV) | X8R | -55°C ~ 150°C | Soft Termination, High Temperature | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.098" (2.50mm) | - | - |
-4,50x6,40x1,55mm.jpg)
|
C1825C123JDGAC7800CAP CER 0.012UF 1KV C0G/NP0 1825 |
635 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 0.012 µF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.177" L x 0.252" W (4.50mm x 6.40mm) | - | 0.061" (1.55mm) | - | - |
-1,30mm.jpg)
|
CDR31BP470BFUS7185CAP CER 47PF 100V BP 0805 |
200 |
|
Datasheet |
Military, MIL-PRF-55681, CDR31 | Tape & Reel (TR) | Active | 47 pF | ±1% | 100V | BP | -55°C ~ 125°C | - | - | High Reliability | S (0.001%) | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.051" (1.30mm) | - | - |
|
HV1825A391JXHATHVCAP CER 390PF 3KV C0G/NP0 1825 |
1,988 |
|
Datasheet |
HV | Tape & Reel (TR) | Active | 390 pF | ±5% | 3000V (3kV) | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.177" L x 0.252" W (4.50mm x 6.40mm) | - | 0.106" (2.70mm) | - | - |
|
FG23X7T2E155KNT06CAP CER 1.5UF 250V X7T RAD |
1,000 |
|
Datasheet |
FG | Cut Tape (CT) | Active | 1.5 µF | ±10% | 250V | X7T | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.335" L x 0.217" W (8.50mm x 5.50mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
|
FG23X7R1E226MNT06CAP CER 22UF 25V X7R RAD |
990 |
|
Datasheet |
FG | Cut Tape (CT) | Active | 22 µF | ±20% | 25V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.335" L x 0.217" W (8.50mm x 5.50mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
|
FG23X7T2E155KNT00CAP CER 1.5UF 250V X7T RADIAL |
315 |
|
Datasheet |
FG | Bulk | Active | 1.5 µF | ±10% | 250V | X7T | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.335" L x 0.217" W (8.50mm x 5.50mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
-2,54.jpg)
|
1825GC223KAZ2ACAP CER SMD |
240 |
|
Datasheet |
FLEXITERM® | Tape & Reel (TR) | Active | 0.022 µF | ±10% | 2000V (2kV) | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.181" L x 0.248" W (4.60mm x 6.30mm) | - | - | - | - |
|
GR343DD72E334KW01KCAP CER 0.33UF 250V X7T 1812 |
3,450 |
|
Datasheet |
GR3 | Tape & Reel (TR) | Active | 0.33 µF | ±10% | 250V | X7T | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.079" (2.00mm) | - | - |
-2,70mm.jpg)
|
AMK325AC6157MM-PCAP CER 150UF 4V X6S 1210 |
1,971 |
|
Datasheet |
M | Tape & Reel (TR) | Active | 150 µF | ±20% | 4V | X6S | -55°C ~ 105°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
|
C2220X944KCRLCAUTOCAP CER 0.94UF 500V X7R 2220 |
260 |
|
Datasheet |
KONNEKT Auto X7R | Tape & Reel (TR) | Active | 0.94 µF | ±10% | 500V | X7R | -55°C ~ 125°C | Low ESL (Stacked), Soft Termination, High Voltage | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.232" L x 0.197" W (5.90mm x 5.00mm) | - | 0.217" (5.50mm) | - | - |
-2,54mm-Tan.jpg)
|
2211JA250471JGTSYXCAP CER 470PF 250VAC C0GNP0 2211 |
1,320 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 470 pF | ±5% | 250VAC | C0G, NP0 | -55°C ~ 125°C | DC Annex H, Humidity 3B Annex I, High Voltage | X1, Y2 | Safety | - | Surface Mount, MLCC | 2211 (5728 Metric) | 0.224" L x 0.110" W (5.70mm x 2.80mm) | - | 0.100" (2.54mm) | - | - |
.jpg)
|

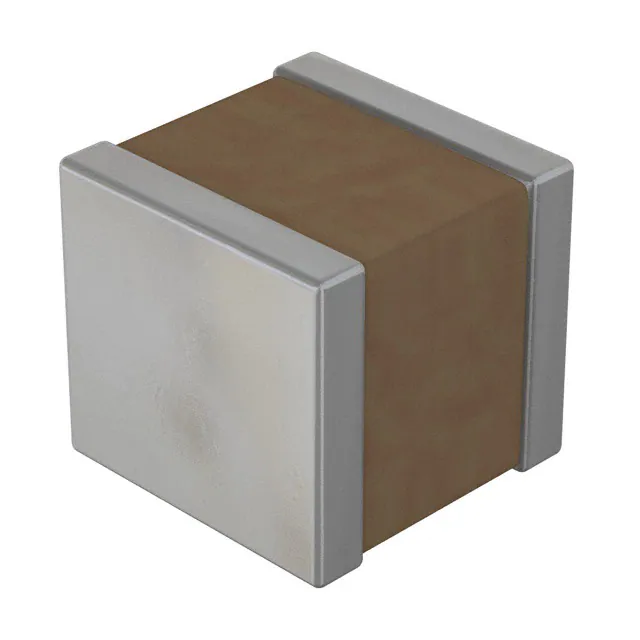

RF1111X104K500KX102TCAP CER 0.1UF 50V BX 1111 |
1,452 |
|
Datasheet |
RF | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 50V | BX | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
KTD501B684M76A0T00CAP CER 0.68UF 500V X7R RADIAL |
1,480 |
|
Datasheet |
NTD | Cut Tape (CT) | Active | 0.68 µF | ±20% | 500V | X7R | -55°C ~ 125°C | - | - | SMPS Filtering | - | Through Hole | Radial | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) | - | 0.197" (5.00mm) | Straight |
|
KCM55L5C3A153JDL1LCAP CER 0.015UF 1KV C0G/NP0 SMD |
400 |
|
Datasheet |
KCM | Tape & Reel (TR) | Active | 0.015 µF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | SMD, J-Lead | 0.240" L x 0.201" W (6.10mm x 5.10mm) | - | 0.122" (3.10mm) | - | J-Lead |
-2.3.jpg)
|
CGA9M4X7T2W684M200KACAP CER 0.68UF 450V X7T 2220 |
690 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 0.68 µF | ±20% | 450V | X7T | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.087" (2.20mm) | - | - |
|
|
CGA9M1X7T2J334M200KCCAP CER 0.33UF 630V X7T 2220 |
282 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 0.33 µF | ±20% | 630V | X7T | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.087" (2.20mm) | - | - |
|
C2220C473J1GACTUCAP CER 0.047UF 100V C0GNP0 2220 |
564 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 0.047 µF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.045" (1.15mm) | - | - |
|
|
C1812C202JFGACAUTOCAP CER 2000PF 1.5KV C0G 1812 |
430 |
|
Datasheet |
SMD Auto C0G HV | Tape & Reel (TR) | Active | 2000 pF | ±5% | 1500V (1.5kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.087" (2.20mm) | - | - |
