Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C5750C0G2E154J230KECAP CER 0.15UF 250V C0G/NP0 2220 |
922 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 0.15 µF | ±5% | 250V | C0G, NP0 | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.102" (2.60mm) | - | - |
.jpg)
|
0402BB223K500NGTCAP CER 0.022UF 50V X7R 0402 |
8,713 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 0.022 µF | ±10% | 50V | X7R | -55°C ~ 125°C | Gold Flash Termination | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.040" L x 0.020" W (1.02mm x 0.51mm) | - | 0.024" (0.61mm) | - | - |
|
ES2211N330K502NTMCAP CER 33PF 250VAC C0G/NP0 2211 |
18,501 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | 33 pF | ±10% | 250VAC | C0G, NP0 | -55°C ~ 125°C | - | X1, Y2 | Safety | - | Surface Mount, MLCC | 2211 (5728 Metric) | 0.220" L x 0.110" W (5.58mm x 2.79mm) | - | 0.110" (2.79mm) | - | - |
|

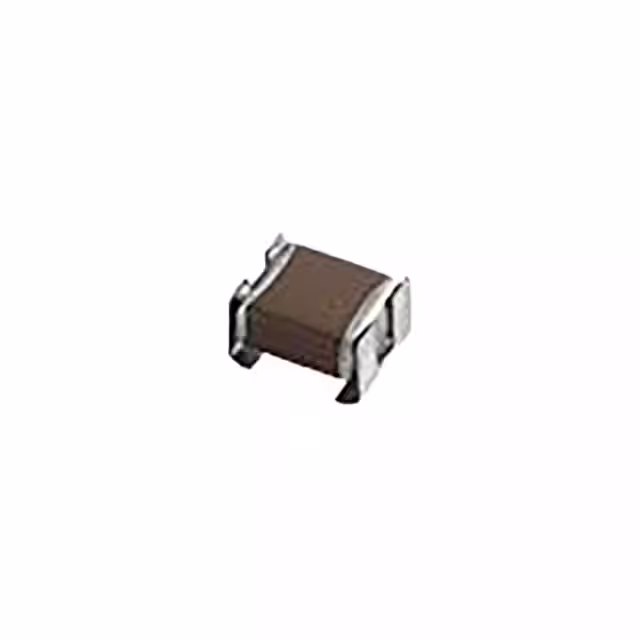

KCM55L7U2J473JDL1KCAP CER 47000PF 630V U2J 2220 |
2,077 |
|
Datasheet |
KCM | Tape & Reel (TR) | Active | 0.047 µF | ±5% | 630V | U2J | -55°C ~ 125°C | - | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | SMD, J-Lead | 0.240" L x 0.209" W (6.10mm x 5.30mm) | - | 0.197" (5.00mm) | - | J-Lead |
|
GRM32E5C3A153FWAAKCAP CER 0.015UF 1KV C0G/NP0 1210 |
3,980 |
|
Datasheet |
GRM | Tape & Reel (TR) | Active | 0.015 µF | ±1% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.112" (2.85mm) | - | - |
|
|
GCM32E5C3A153FX0AKCAP CER 0.015UF 1KV C0G/NP0 1210 |
3,330 |
|
Datasheet |
GCM | Tape & Reel (TR) | Active | 0.015 µF | ±1% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.112" (2.85mm) | - | - |
|
|
C2220C102JBGACTUCAP CER 1000PF 630V C0G/NP0 2220 |
1,834 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 1000 pF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.071" (1.80mm) | - | - |
-2.2.jpg)
|
CGA6P1X8R1E106K250ADCAP CER 10UF 25V X8R 1210 EPOXY |
1,175 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 10 µF | ±10% | 25V | X8R | -55°C ~ 150°C | Epoxy Mountable, High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC, Epoxy | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
|
|
GRM32E5C3A153FWAALCAP CER 0.015UF 1KV C0G/NP0 1210 |
1,000 |
|
Datasheet |
GRM | Tape & Reel (TR) | Active | 0.015 µF | ±1% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.112" (2.85mm) | - | - |
-4,50x3,20x2,7mm.jpg)
|
C1812C822JBGACAUTOCAP CER 8200PF 630V C0G/NP0 1812 |
361 |
|
Datasheet |
SMD Auto C0G HV | Tape & Reel (TR) | Active | 8200 pF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.106" (2.70mm) | - | - |
|
|
C1812C944KARLCTUCAP CER 0.94UF 250V X7R 1812 |
450 |
|
Datasheet |
KONNEKT Comm X7R | Tape & Reel (TR) | Active | 0.94 µF | ±10% | 250V | X7R | -55°C ~ 125°C | Low ESL (Stacked) | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.150" (3.80mm) | - | - |
|
KRM55R5C3A223JDL1LCAP CER 0.022UF 1KV C0G/NP0 SMD |
400 |
|
Datasheet |
KRM | Tape & Reel (TR) | Active | 0.022 µF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | - | - | Boardflex Sensitive | - | Surface Mount, MLCC | SMD, J-Lead | 0.240" L x 0.201" W (6.10mm x 5.10mm) | - | 0.154" (3.90mm) | - | J-Lead |
|
|
KR355QD7LQ564KV01LCAP CER 0.56UF 630V X7T SMD |
400 |
|
Datasheet |
KR3 | Tape & Reel (TR) | Active | 0.56 µF | ±10% | 630V | X7T | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | SMD, J-Lead | 0.240" L x 0.209" W (6.10mm x 5.30mm) | - | 0.154" (3.90mm) | - | J-Lead |
|
|
C1812X681JDGACAUTOCAP CER 1812 680PF 1000V C0G 5% |
600 |
|
Datasheet |
SMD Auto C0G HV Flex | Tape & Reel (TR) | Active | 680 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.061" (1.55mm) | - | - |
|
|
C1812C663KFRLCTUCAP CER 0.066UF 1.5KV X7R 1812 |
289 |
|
Datasheet |
KONNEKT Comm X7R | Tape & Reel (TR) | Active | 0.066 µF | ±10% | 1500V (1.5kV) | X7R | -55°C ~ 125°C | Low ESL (Stacked), High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.217" (5.50mm) | - | - |
.jpg)
|
0805BW106K160YX040TCAP CER 10UF 16V X5R 0805 |
2,344 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 10 µF | ±10% | 16V | X5R | -55°C ~ 85°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.080" L x 0.050" W (2.03mm x 1.27mm) | - | 0.040" (1.02mm) | - | - |
-1,80mm-C-Series.jpg)
|
C1825C474J5RAC7800CAP CER 0.47UF 50V X7R 1825 |
2,980 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 0.47 µF | ±5% | 50V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.177" L x 0.252" W (4.50mm x 6.40mm) | - | 0.049" (1.25mm) | - | - |
|
CKG45KC0G2J333J290JJCAP CER 0.033UF 630V C0G/NP0 SMD |
990 |
|
Datasheet |
CKG | Tape & Reel (TR) | Active | 0.033 µF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | Low ESL | AEC-Q200 | Automotive, SMPS Filtering, Boardflex Sensitive | - | Surface Mount, MLCC | SMD, J-Lead | 0.197" L x 0.138" W (5.00mm x 3.50mm) | - | 0.118" (3.00mm) | - | J-Lead |
|
CKG32KC0G2J333J335AHCAP CER 0.033UF 630V C0G SMD |
958 |
|
Datasheet |
MEGACAP, CKG | Tape & Reel (TR) | Active | 0.033 µF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | SMD, J-Lead | 0.142" L x 0.102" W (3.60mm x 2.60mm) | - | 0.136" (3.45mm) | - | J-Lead |
|
|
CKG32KC0G2A683J335AHCAP CER 0.068UF 100V C0G SMD |
902 |
|
Datasheet |
MEGACAP, CKG | Tape & Reel (TR) | Active | 0.068 µF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | SMD, J-Lead | 0.142" L x 0.102" W (3.60mm x 2.60mm) | - | 0.136" (3.45mm) | - | J-Lead |
