Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-2.2.jpg)
|
CGA6P3X8R1C106K250ADCAP CER 10UF 16V X8R 1210 EPOXY |
1,980 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 10 µF | ±10% | 16V | X8R | -55°C ~ 150°C | Epoxy Mountable, High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC, Epoxy | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
-3,20x1,60x1,80mm.jpg)
|
C1206C473F3GECAUTOCAP CER 1206 47NF 25V C0G 1% |
1,762 |
|
Datasheet |
ESD SMD Auto C0G | Tape & Reel (TR) | Active | 0.047 µF | ±1% | 25V | C0G, NP0 | -55°C ~ 125°C | Low ESL, Low ESR | AEC-Q200 | Automotive, ESD Protection | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|
C1812C102JFTAC7800CAP CER 1000PF 1.5KV X8G 1812 |
940 |
|
Datasheet |
SMD Auto X8G HT150C HV | Tape & Reel (TR) | Active | 1000 pF | ±5% | 1500V (1.5kV) | X8G | -55°C ~ 150°C | Low ESL, High Voltage, High Temperature | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.061" (1.55mm) | - | - |
-4,50x3,20x2,7mm.jpg)
|
C1812J105K5RACAUTOCAP CER 1UF 50V X7R 1812 |
808 |
|
Datasheet |
SMD Auto X7R FO | Tape & Reel (TR) | Active | 1 µF | ±10% | 50V | X7R | -55°C ~ 125°C | Open Mode, Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.075" (1.90mm) | - | - |
|
|
KR355LD7LQ474KV01LCAP CER 0.47UF 630V X7T SMD |
348 |
|
Datasheet |
KR3 | Tape & Reel (TR) | Active | 0.47 µF | ±10% | 630V | X7T | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | SMD, J-Lead | 0.240" L x 0.209" W (6.10mm x 5.30mm) | - | 0.118" (3.00mm) | - | J-Lead |
.jpg)
|
0805D101J101KHTCAP CER 100PF 100V C0G/NP0 0805 |
1,915 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 100 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 200°C | High Temperature | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.080" L x 0.050" W (2.03mm x 1.27mm) | - | 0.054" (1.37mm) | - | - |
|
C340C185K5R5TACAP CER 1.8UF 50V X7R RADIAL |
140 |
|
Datasheet |
GoldMax 300 Comm X7R | Bulk | Active | 1.8 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Through Hole | Radial | 0.290" L x 0.160" W (7.36mm x 4.07mm) | 0.500" (12.70mm) | - | 0.200" (5.08mm) | Straight |
.jpg)
|
C1210X475J5RACAUTOCAP CER 4.7UF 50V X7R 1210 |
589 |
|
Datasheet |
SMD Auto X7R Flex | Tape & Reel (TR) | Active | 4.7 µF | ±5% | 50V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.130" L x 0.102" W (3.30mm x 2.60mm) | - | 0.110" (2.80mm) | - | - |
|
|
GRM32E5C3A183FWAAKCAP CER 0.018UF 1KV C0G/NP0 1210 |
3,980 |
|
Datasheet |
GRM | Tape & Reel (TR) | Active | 0.018 µF | ±1% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.112" (2.85mm) | - | - |
.jpg)
|

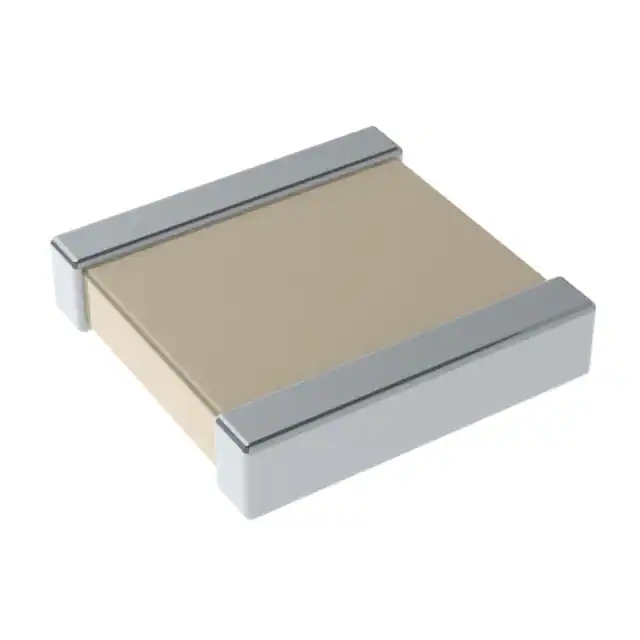

C2225X153KHRACAUTOCAP CER 0.015UF 3KV X7R 2225 |
465 |
|
Datasheet |
SMD Auto X7R HV Flex | Tape & Reel (TR) | Active | 0.015 µF | ±10% | 3000V (3kV) | X7R | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.232" L x 0.252" W (5.90mm x 6.40mm) | - | 0.106" (2.70mm) | - | - |
|
CKG45KC0G2E683J290JHCAP CER 0.068UF 250V C0G/NP0 SMD |
500 |
|
Datasheet |
CKG | Tape & Reel (TR) | Active | 0.068 µF | ±5% | 250V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | SMPS Filtering, Boardflex Sensitive | - | Surface Mount, MLCC | SMD, J-Lead | 0.197" L x 0.138" W (5.00mm x 3.50mm) | - | 0.118" (3.00mm) | - | J-Lead |
|
|
C1812F105K5RACAUTOCAP CER 1UF 50V X7R 1812 |
273 |
|
Datasheet |
SMD Auto X7R FO | Tape & Reel (TR) | Active | 1 µF | ±10% | 50V | X7R | -55°C ~ 125°C | Open Mode | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.075" (1.90mm) | - | - |
-4,50x6,40x1,55mm.jpg)
|
C1825C472MGRAC7800CAP CER 4700PF 2KV X7R 1825 |
8,683 |
|
Datasheet |
SMD Comm X7R HV | Tape & Reel (TR) | Active | 4700 pF | ±20% | 2000V (2kV) | X7R | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.177" L x 0.252" W (4.50mm x 6.40mm) | - | 0.061" (1.55mm) | - | - |
|
|
GCM32E5C3A123FX01KCAP CER 0.012UF 1KV C0G/NP0 1210 |
3,993 |
|
Datasheet |
GCM | Tape & Reel (TR) | Active | 0.012 µF | ±1% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.104" (2.65mm) | - | - |
|
|
GRM32E5C3A123FWA1KCAP CER 0.012UF 1KV C0G/NP0 1210 |
3,930 |
|
Datasheet |
GRM | Tape & Reel (TR) | Active | 0.012 µF | ±1% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.104" (2.65mm) | - | - |
|
|
GCM32E5C3A123FX01LCAP CER 0.012UF 1KV C0G/NP0 1210 |
1,000 |
|
Datasheet |
GCM | Tape & Reel (TR) | Active | 0.012 µF | ±1% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.104" (2.65mm) | - | - |
|
|
GRM32E5C3A123FWA1LCAP CER 0.012UF 1KV C0G/NP0 1210 |
1,000 |
|
Datasheet |
GRM | Tape & Reel (TR) | Active | 0.012 µF | ±1% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.104" (2.65mm) | - | - |
|
FG23X7R2A335KNT06CAP CER 3.3UF 100V X7R RAD |
994 |
|
Datasheet |
FG | Cut Tape (CT) | Active | 3.3 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.335" L x 0.217" W (8.50mm x 5.50mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
-1,80mm-C-Series.jpg)
|
C1825C104JCRAC7800CAP CER 0.1UF 500V X7R 1825 |
985 |
|
Datasheet |
SMD Comm X7R HV | Tape & Reel (TR) | Active | 0.1 µF | ±5% | 500V | X7R | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.177" L x 0.252" W (4.50mm x 6.40mm) | - | 0.071" (1.80mm) | - | - |
|
KCM55L5C3A183JDL1LCAP CER 0.018UF 1KV C0G/NP0 SMD |
260 |
|
Datasheet |
KCM | Tape & Reel (TR) | Active | 0.018 µF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | SMD, J-Lead | 0.240" L x 0.201" W (6.10mm x 5.10mm) | - | 0.122" (3.10mm) | - | J-Lead |
