Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-4,50x3,20x2,7mm.jpg)
|
C1812J105J1RAC7800CAP CER 1UF 100V X7R 1812 |
1,072 |
|
Datasheet |
SMD Comm X7R FO | Tape & Reel (TR) | Active | 1 µF | ±5% | 100V | X7R | -55°C ~ 125°C | Open Mode, Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.071" (1.80mm) | - | - |
.jpg)
|
1206BW226M100NGX040TCAP CER 22UF 10V X5R 1206 |
10,010 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 22 µF | ±20% | 10V | X5R | -55°C ~ 85°C | Bonding Mountable, Gold Flash Termination | - | SMPS Filtering | - | Surface Mount, MLCC, Epoxy | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.040" (1.02mm) | - | - |
|
C1825X473KDRACTUCAP CER 0.047UF 1KV X7R 1825 |
600 |
|
Datasheet |
SMD Comm X7R HV Flex | Tape & Reel (TR) | Active | 0.047 µF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.181" L x 0.252" W (4.60mm x 6.40mm) | - | 0.071" (1.80mm) | - | - |
.jpg)
|
C2225C682KFGACAUTOCER CAP |
153 |
|
Datasheet |
SMD Auto C0G HV | Tape & Reel (TR) | Active | 6800 pF | ±10% | 1500V (1.5kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.220" L x 0.252" W (5.60mm x 6.40mm) | - | 0.106" (2.70mm) | - | - |
.jpg)
|
KTS251B155M76N0T00CAP CER 1.5UF 250V X7R 3025 |
279 |
|
Datasheet |
NTS | Tape & Reel (TR) | Active | 1.5 µF | ±20% | 250V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 3025 (7563 Metric) | 0.295" L x 0.248" W (7.50mm x 6.30mm) | - | 0.138" (3.50mm) | - | - |
|
KTJ500B156M55BFT00CAP CER 15UF 50V X7R SMD |
3,740 |
|
Datasheet |
KTJ, NTJ | Tape & Reel (TR) | Active | 15 µF | ±20% | 50V | X7R | -55°C ~ 125°C | Low ESL (Stacked) | - | Bypass, Decoupling | - | Surface Mount, MLCC | Stacked SMD, 2 J-Lead | 0.236" L x 0.209" W (6.00mm x 5.30mm) | - | 0.217" (5.50mm) | - | J-Lead |
|
|
SR301A103JARTCAP CER RADIAL |
1,000 |
|
Datasheet |
SkyCap® SR | Bulk | Active | 10000 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.300" L x 0.150" W (7.62mm x 3.81mm) | 0.360" (9.14mm) | - | 0.200" (5.08mm) | Straight |
|
|
SR305A223JARCAP CER RADIAL |
968 |
|
Datasheet |
SkyCap® SR | Bulk | Active | 0.022 µF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.300" L x 0.150" W (7.62mm x 3.81mm) | 0.360" (9.14mm) | - | 0.200" (5.08mm) | Straight |
.jpg)
|
C1812X105K5RACAUTOCAP CER 1UF 50V X7R 1812 |
1,000 |
|
Datasheet |
SMD Auto X7R Flex | Tape & Reel (TR) | Active | 1 µF | ±10% | 50V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.055" (1.40mm) | - | - |
|
FA23X7R2A335KNU06CAP CER 3.3UF 100V X7R RAD |
1,117 |
|
Datasheet |
FA | Cut Tape (CT) | Active | 3.3 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.335" L x 0.217" W (8.50mm x 5.50mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
SR325C105KAACAP CER 1UF 50V X7R RADIAL |
1,000 |
|
Datasheet |
SkyCap® SR | Bulk | Active | 1 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.300" L x 0.150" W (7.62mm x 3.81mm) | 0.390" (9.91mm) | - | 0.200" (5.08mm) | Formed Leads - Kinked |
|
SR201A332FARCAP CER 3300PF 100V NP0 RADIAL |
947 |
|
Datasheet |
SkyCap® SR | Bulk | Active | 3300 pF | ±1% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.200" (5.08mm) | - | 0.100" (2.54mm) | Straight |
-2,70mm-C-Series.jpg)
|
C5750X7S3D103K250KECAP CER 10000PF 2KV X7S 2220 |
347 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 10000 pF | ±10% | 2000V (2kV) | X7S | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.110" (2.80mm) | - | - |
-3,20x2,50x2,80mm.jpg)
|
C1210C104K5GACAUTOCAP CER 0.1UF 50V C0G/NP0 1210 |
2,787 |
|
Datasheet |
SMD Auto C0G | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.055" (1.40mm) | - | - |
|
MD012A101KABCAP CER 100PF 200V NP0 2-DIP |
200 |
|
Datasheet |
DIPGuard® MD | Tube | Active | 100 pF | ±10% | 200V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | 2-DIP | 0.260" L x 0.100" W (6.60mm x 2.54mm) | 0.175" (4.45mm) | - | 0.325" (8.25mm) | - |
-2,20mm-C-Series.jpg)
|
C3216X6S0J336M160ABCAP CER 33UF 6.3V X6S 1206 |
2,389 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 33 µF | ±20% | 6.3V | X6S | -55°C ~ 105°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|
|
C2225C105J5RACTUCAP CER 1UF 50V X7R 2225 |
1,975 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 1 µF | ±5% | 50V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.220" L x 0.252" W (5.60mm x 6.40mm) | - | 0.045" (1.15mm) | - | - |
.jpg)
|
CC1210JKNPODBN221CAP CER 220PF 2KV C0G/NPO 1210 |
2,095 |
|
Datasheet |
CC | Tape & Reel (TR) | Active | 220 pF | ±5% | 2000V (2kV) | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.057" (1.45mm) | - | - |
|

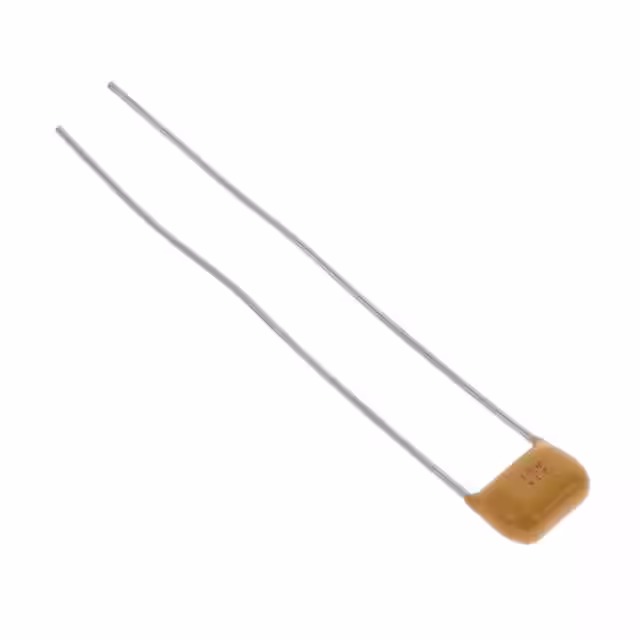

SL307C104MABCAP CER RADIAL |
957 |
|
Datasheet |
SkyCap® SL | Bulk | Active | 0.1 µF | ±20% | 500V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.300" L x 0.150" W (7.62mm x 3.81mm) | 0.360" (9.14mm) | - | 0.200" (5.08mm) | Straight |
|
C1812X242KHRLCAUTOCAP CER 2400PF 3KV X7R 1812 |
333 |
|
Datasheet |
KONNEKT Auto X7R | Tape & Reel (TR) | Active | 2400 pF | ±10% | 3000V (3kV) | X7R | -55°C ~ 125°C | Low ESL (Stacked), Soft Termination, High Voltage | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.150" (3.80mm) | - | - |
