Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-4,2mm-Tan.jpg)
|
2220Y1K00472MXTCAP CER 4700PF 1KV X7R 2220 |
336 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Active | 4700 pF | ±20% | 1000V (1kV) | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.165" (4.20mm) | - | - |
|
C1210C473K1HACTUCAP CER 0.047UF 100V X8R 1210 |
1,403 |
|
Datasheet |
SMD Comm X8R HT150C | Tape & Reel (TR) | Active | 0.047 µF | ±10% | 100V | X8R | -55°C ~ 150°C | Low ESL, High Temperature | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.043" (1.10mm) | - | - |
|
|
1812JA250821JKTSYXB92CAP CER 820PF 250VAC C0GNP0 1812 |
920 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 820 pF | ±5% | 250VAC | C0G, NP0 (1B) | -55°C ~ 125°C | DC Annex H, Humidity 3B Annex I, High Voltage | AEC-Q200, X1, Y2 | Safety, Automotive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.195" L x 0.126" W (4.95mm x 3.20mm) | - | 0.110" (2.80mm) | - | - |
|
SR657C104KARTR1CAP CER 0.1UF 500V X7R RADIAL |
1,546 |
|
Datasheet |
SkyCap® SR | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 500V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.300" L x 0.150" W (7.62mm x 3.81mm) | 0.400" (10.16mm) | - | 0.200" (5.08mm) | Formed Leads - Kinked |
-1,80mm-C-Series.jpg)
|
C1825C105J5RAC7800CAP CER 1UF 50V X7R 1825 |
998 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 1 µF | ±5% | 50V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.177" L x 0.252" W (4.50mm x 6.40mm) | - | 0.049" (1.25mm) | - | - |
|
|
C1812X333KBGACTUCAP CER 0.033UF 630V C0G 1812 |
888 |
|
Datasheet |
SMD Comm C0G HV Flex | Tape & Reel (TR) | Active | 0.033 µF | ±10% | 630V | C0G, NP0 | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.087" (2.20mm) | - | - |
|
CBR08C680FAGACCAP CER 68PF 250V C0G/NP0 0805 |
413 |
|
Datasheet |
CBR-SMD RF C0G | Tape & Reel (TR) | Active | 68 pF | ±1% | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.037" (0.95mm) | - | - |
|
SR307C104KARTR1CAP CER 0.1UF 500V X7R RADIAL |
3,179 |
|
Datasheet |
SkyCap® SR | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 500V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.300" L x 0.150" W (7.62mm x 3.81mm) | 0.360" (9.14mm) | - | 0.200" (5.08mm) | Straight |
|
|
CBR08C360FAGACCAP CER 36PF 250V C0G/NP0 0805 |
3,950 |
|
Datasheet |
CBR-SMD RF C0G | Tape & Reel (TR) | Active | 36 pF | ±1% | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.037" (0.95mm) | - | - |
|

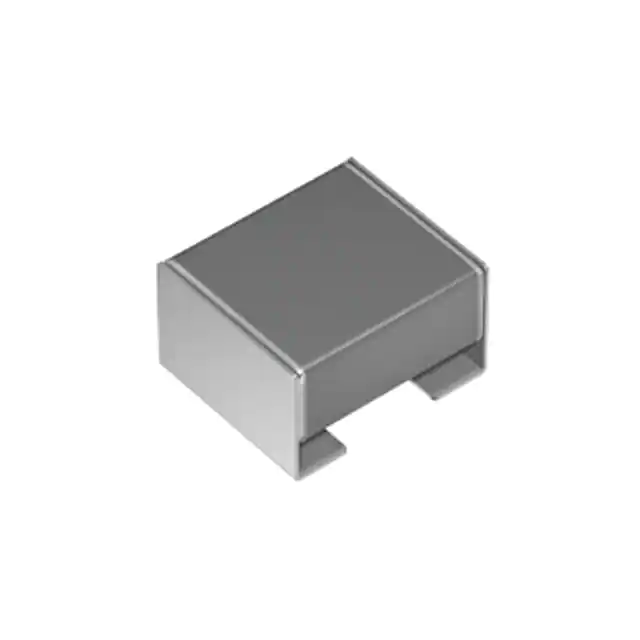

CKG57KC0G2J683J335JHCAP CER 0.068UF 630V C0G/NP0 SMD |
881 |
|
Datasheet |
CKG | Tape & Reel (TR) | Active | 0.068 µF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | SMPS Filtering, Boardflex Sensitive | - | Surface Mount, MLCC | SMD, J-Lead | 0.236" L x 0.197" W (6.00mm x 5.00mm) | - | 0.138" (3.50mm) | - | J-Lead |
|
C2220C226K3R1CAUTOCAP CER 22UF 25V X7R SMD |
370 |
|
Datasheet |
KPS SMD Auto X7R | Tape & Reel (TR) | Active | 22 µF | ±10% | 25V | X7R | -55°C ~ 125°C | Low ESL | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | SMD, J-Lead | 0.236" L x 0.197" W (6.00mm x 5.00mm) | - | 0.150" (3.80mm) | - | J-Lead |
|
|
C1812C221JHGACTUCAP CER 220PF 3KV C0G/NP0 1812 |
163 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 220 pF | ±5% | 3000V (3kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.087" (2.20mm) | - | - |
|
|
C2225C333J5GACTUCAP CER 0.033UF 50V C0G/NP0 2225 |
1,459 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 0.033 µF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.220" L x 0.252" W (5.60mm x 6.40mm) | - | 0.061" (1.55mm) | - | - |
-2,54mm-Tan.jpg)
|
1812JA250561JKTSYXCAP CER 560PF 250VAC C0GNP0 1812 |
991 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 560 pF | ±5% | 250VAC | C0G, NP0 (1B) | -55°C ~ 125°C | DC Annex H, Humidity 3B Annex I, High Voltage | AEC-Q200, X1, Y2 | Safety, Automotive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.195" L x 0.126" W (4.95mm x 3.20mm) | - | 0.100" (2.54mm) | - | - |
|
C2220C226M3RACAUTOCAP CER 22UF 25V X7R 2220 |
449 |
|
Datasheet |
SMD Auto X7R | Tape & Reel (TR) | Active | 22 µF | ±20% | 25V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive, Bypass, Decoupling | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.100" (2.55mm) | - | - |
-1,79-mm-Tan.jpg)
|
111122K00560GQTCAP CER 56PF 2KV C0G/NP0 1111 |
3,202 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | 56 pF | ±2% | 2000V (2kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | General Purpose | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.080" (2.03mm) | - | - |
|
|
C1812C103JBGACTUCAP CER 10000PF 630V C0G 1812 |
450 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 10000 pF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.106" (2.70mm) | - | - |
|
|
C2225X125KARACTUCAP CER 1.2UF 250V X7R 2225 |
480 |
|
Datasheet |
SMD Comm X7R Tip-Ring | Tape & Reel (TR) | Active | 1.2 µF | ±10% | 250V | X7R | -55°C ~ 125°C | Soft Termination | - | Bypass, Decoupling, Boardflex Sensitive | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.232" L x 0.252" W (5.90mm x 6.40mm) | - | 0.061" (1.55mm) | - | - |
|
C2225X824KARACAUTOCAP CER 0.82UF 250V X7R 2225 |
1,650 |
|
Datasheet |
SMD Auto X7R Flex | Tape & Reel (TR) | Active | 0.82 µF | ±10% | 250V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.232" L x 0.252" W (5.90mm x 6.40mm) | - | 0.061" (1.55mm) | - | - |
|
|
C2225X125KARACAUTOCAP CER 1.2UF 250V X7R 2225 |
1,375 |
|
Datasheet |
SMD Auto X7R Flex | Tape & Reel (TR) | Active | 1.2 µF | ±10% | 250V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.232" L x 0.252" W (5.90mm x 6.40mm) | - | 0.061" (1.55mm) | - | - |
