Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LD061C105KAB2A\500CAP CER SMD |
500 |
|
Datasheet |
LD | Tape & Reel (TR) | Active | 1 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.070" (1.78mm) | - | - |
|
|
LD03ZC225KAB2A\500CAP CER SMD |
500 |
|
Datasheet |
LD | Tape & Reel (TR) | Active | 2.2 µF | ±10% | 10V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.90mm) | - | - |
|
LD06ZC106KAB2ACAP CER SMD |
479 |
|
Datasheet |
LD | Tape & Reel (TR) | Active | 10 µF | ±10% | 10V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.070" (1.78mm) | - | - |
|
|
LD063C475KAB2A\500CAP CER 4.7UF 25V X7R 1206 |
474 |
|
Datasheet |
LD | Tape & Reel (TR) | Active | 4.7 µF | ±10% | 25V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.070" (1.78mm) | - | - |
|
|
LD106D476KAB2ACAP CER SMD |
190 |
|
Datasheet |
LD | Tape & Reel (TR) | Active | 47 µF | ±10% | 6.3V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | - | - | - |
.jpg)
|
100B391JTN200XT1KCAP CER 390PF 200V P90 1111 |
1,364 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 390 pF | ±5% | 200V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
CKC33C822KDGACAUTOKC-LINK 3640 8.2NF 1000VDC C0G |
140 |
|
Datasheet |
KC Link Auto C0G | Tape & Reel (TR) | Active | 8200 pF | ±10% | 1000V (1kV) | C0G, NP0 | -55°C ~ 150°C | Low ESL, High Voltage, High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 3640 (9110 Metric) | 0.366" L x 0.402" W (9.30mm x 10.20mm) | - | 0.106" (2.70mm) | - | - |
|
|
100B2R0BP500XT1KCAP CER 2PF 500V P90 1111 |
551 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 2 pF | ±0.1pF | 500V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
|
100B330JP500XTCAP CER 33PF 500V P90 1111 |
730 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 33 pF | ±5% | 500V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
|
100B1R0BTN500XT1KCAP CER 1PF 500V P90 1111 |
1,895 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 1 pF | ±0.1pF | 500V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
-9,30x10,20x2,70mm.jpg)
|
CKC33C224KCGACAUTO7210CAP CER 0.22UF 500V C0G/NP0 3640 |
866 |
|
Datasheet |
KC Link Auto C0G | Tape & Reel (TR) | Active | 0.22 µF | ±10% | 500V | C0G, NP0 | -55°C ~ 150°C | Low ESL, High Voltage, High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 3640 (9110 Metric) | 0.366" L x 0.402" W (9.30mm x 10.20mm) | - | 0.106" (2.70mm) | - | - |
|
|
CKC33C154JWGACTUKC-LINK 3640 150NF 650VDC C0G |
201 |
|
Datasheet |
KC Link Comm C0G | Tape & Reel (TR) | Active | 0.15 µF | ±5% | 650V | C0G, NP0 | -55°C ~ 150°C | Low ESL, High Voltage, High Temperature | - | General Purpose | - | Surface Mount, MLCC | 3640 (9110 Metric) | 0.366" L x 0.402" W (9.30mm x 10.20mm) | - | 0.106" (2.70mm) | - | - |
|
|
C1812C394F3JACTUCAP CER 0.39UF 25V U2J 1812 |
1,495 |
|
Datasheet |
SMD Comm U2J | Tape & Reel (TR) | Active | 0.39 µF | ±1% | 25V | U2J | -55°C ~ 125°C | Low ESL, Low Dissipation Factor | - | General Purpose | - | Surface Mount, MLCC | 1810 (4525 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.043" (1.10mm) | - | - |
|
|
100B390GTN500XT1KCAP CER 39PF 500V P90 1111 |
142 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 39 pF | ±2% | 500V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
CAA572C0G3A663J640LHCAP CER 0.066UF 1KV C0G/NP0 SMD |
733 |
|
Datasheet |
MEGACAP, CA | Tape & Reel (TR) | Active | 0.066 µF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | SMD, J-Lead | 0.240" L x 0.220" W (6.10mm x 5.60mm) | - | 0.272" (6.90mm) | - | J-Lead |
|

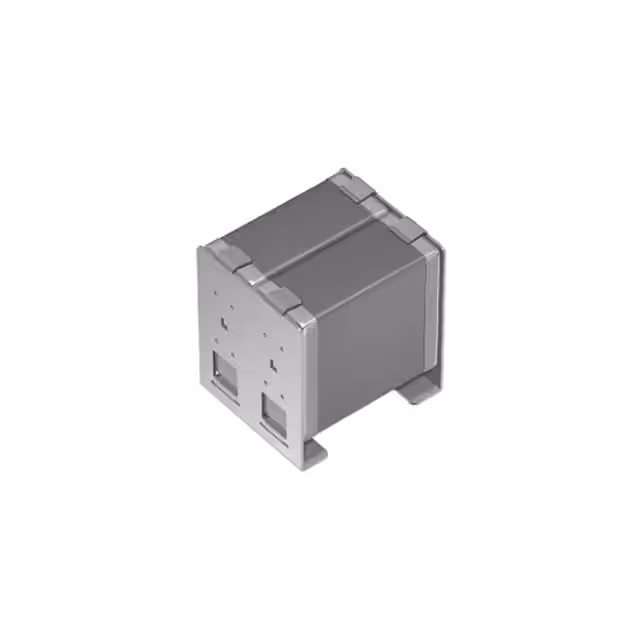

CAA572C0G3A443J640LHCAP CER 0.044UF 1KV C0G NP0 SMD |
603 |
|
Datasheet |
MEGACAP, CA | Tape & Reel (TR) | Active | 0.044 µF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | SMD, J-Lead | 0.240" L x 0.220" W (6.10mm x 5.60mm) | - | 0.272" (6.90mm) | - | J-Lead |
|
SV13CA103JARCAP CER 10000PF 630V NP0 RADIAL |
190 |
|
Datasheet |
SV | Bulk | Active | 10000 pF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial | 0.300" L x 0.200" W (7.62mm x 5.08mm) | 0.360" (9.14mm) | - | 0.200" (5.08mm) | Straight |
|
|
SV13CC224KARCAP CER 0.22UF 630V X7R RADIAL |
279 |
|
Datasheet |
SV | Bulk | Active | 0.22 µF | ±10% | 630V | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial | 0.300" L x 0.200" W (7.62mm x 5.08mm) | 0.360" (9.14mm) | - | 0.200" (5.08mm) | Straight |
|
|
SL502C474KABCAP CER RADIAL |
346 |
|
Datasheet |
SkyCap® SL | Bulk | Active | 0.47 µF | ±10% | 200V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.500" L x 0.200" W (12.70mm x 5.08mm) | 0.560" (14.22mm) | - | 0.400" (10.16mm) | Straight |
|
M3253505E2X225KZMB7189CAP CER 2.2UF 10V X7R 1206 |
885 |
|
Datasheet |
Military, MIL-PRF-32535 | Tape & Reel (TR) | Active | 2.2 µF | ±10% | 10V | X7R | -55°C ~ 125°C | - | - | High Reliability | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.070" (1.78mm) | - | - |
