Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
404027K07P50BQRAF9LMCAP CER 7.5PF 7KV C0G 4040 |
490 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 7.5 pF | ±0.1pF | 7000V (7kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 4040 (1010 Metric) | 0.402" L x 0.402" W (10.20mm x 10.20mm) | - | 0.197" (5.00mm) | - | - |
|
|
404027K02P70BQRAF9LMCAP CER 2.7PF 7KV C0G 4040 |
489 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 2.7 pF | ±0.1pF | 7000V (7kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 4040 (1010 Metric) | 0.402" L x 0.402" W (10.20mm x 10.20mm) | - | 0.197" (5.00mm) | - | - |
|
|
404027K06P20BQRAF9LMCAP CER 6.2PF 7KV C0G 4040 |
489 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 6.2 pF | ±0.1pF | 7000V (7kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 4040 (1010 Metric) | 0.402" L x 0.402" W (10.20mm x 10.20mm) | - | 0.197" (5.00mm) | - | - |
|
|
404027K05P60BQRAF9LMCAP CER 5.6PF 7KV C0G 4040 |
486 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 5.6 pF | ±0.1pF | 7000V (7kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 4040 (1010 Metric) | 0.402" L x 0.402" W (10.20mm x 10.20mm) | - | 0.197" (5.00mm) | - | - |
|
|
404027K05P10BQRAF9LMCAP CER 5.1PF 7KV C0G 4040 |
480 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 5.1 pF | ±0.1pF | 7000V (7kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 4040 (1010 Metric) | 0.402" L x 0.402" W (10.20mm x 10.20mm) | - | 0.197" (5.00mm) | - | - |
|
|
404027K02P40BQRAF9LMCAP CER 2.4PF 7KV C0G 4040 |
476 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 2.4 pF | ±0.1pF | 7000V (7kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 4040 (1010 Metric) | 0.402" L x 0.402" W (10.20mm x 10.20mm) | - | 0.197" (5.00mm) | - | - |
|
|
404027K01P80BQRAF9LMCAP CER 1.8PF 7KV C0G 4040 |
447 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 1.8 pF | ±0.1pF | 7000V (7kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 4040 (1010 Metric) | 0.402" L x 0.402" W (10.20mm x 10.20mm) | - | 0.197" (5.00mm) | - | - |
|
|
404027K06P80BQRAF9LMCAP CER 6.8PF 7KV C0G 4040 |
390 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 6.8 pF | ±0.1pF | 7000V (7kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 4040 (1010 Metric) | 0.402" L x 0.402" W (10.20mm x 10.20mm) | - | 0.197" (5.00mm) | - | - |
|
|
404027K00360GQRAF9LMCAP CER 36PF 7KV C0G 4040 |
459 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 36 pF | ±2% | 7000V (7kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 4040 (1010 Metric) | 0.402" L x 0.402" W (10.20mm x 10.20mm) | - | 0.197" (5.00mm) | - | - |
|
|
404027K00150GQRAF9LMCAP CER 15PF 7KV C0G 4040 |
381 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 15 pF | ±2% | 7000V (7kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 4040 (1010 Metric) | 0.402" L x 0.402" W (10.20mm x 10.20mm) | - | 0.197" (5.00mm) | - | - |
|
|
404027K00910GQRAF9LMCAP CER 91PF 7KV C0G 4040 |
364 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 91 pF | ±2% | 7000V (7kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 4040 (1010 Metric) | 0.402" L x 0.402" W (10.20mm x 10.20mm) | - | 0.197" (5.00mm) | - | - |
|
|
404027K00270GQRAF9LMCAP CER 27PF 7KV C0G 4040 |
318 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 27 pF | ±2% | 7000V (7kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 4040 (1010 Metric) | 0.402" L x 0.402" W (10.20mm x 10.20mm) | - | 0.197" (5.00mm) | - | - |
|
M39014/22-3619CAP CER 2DIP |
198 |
|
Datasheet |
Military, MIL-PRF-39014, CKR05 | Bulk | Active | 3.3 pF | ±0.5pF | 200V | CH | -55°C ~ 125°C | - | - | High Reliability | R (0.01%) | Through Hole | 2-DIP | 0.260" L x 0.092" W (6.60mm x 2.34mm) | 0.175" (4.45mm) | - | 0.035" (0.89mm) | Straight |
-3,20x2,50x0,88mm.jpg)
|
C1210H681F5GAFT0507130CAP CER 680PF 50V C0G/NP0 1210 |
89 |
|
Datasheet |
SMD Indust C0G HT200C | Tape & Reel (TR) | Active | 680 pF | ±1% | 50V | C0G, NP0 | -55°C ~ 200°C | Low ESL, High Temperature | - | Downhole | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.035" (0.88mm) | - | - |
|

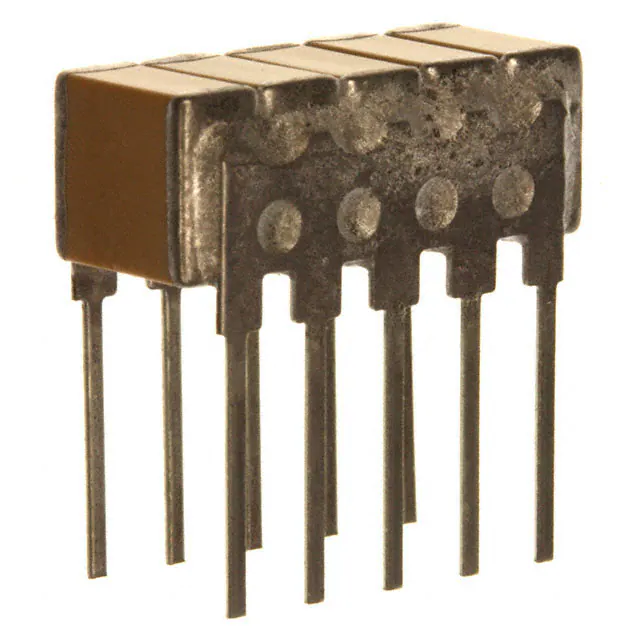

ST205C476MAN05CAP CER 47UF 50V X7R 10DIP |
445 |
|
Datasheet |
TurboCap™ | Bulk | Active | 47 µF | ±20% | 50V | X7R | -55°C ~ 125°C | Low ESL (Stacked) | - | SMPS Filtering, Bypass, Decoupling | - | Through Hole | Stacked DIP, 10 Lead | 0.525" L x 0.300" W (13.34mm x 7.62mm) | 0.220" (5.59mm) | - | 0.220" (5.59mm) | - |
|
|
SV2220BB226M101LLW-5CAP CER 22UF 100V X7R SMD |
48 |
|
Datasheet |
SV2220 | Bulk | Active | 22 µF | ±20% | 100V | X7R | -55°C ~ 125°C | Low ESL (Stacked) | - | SMPS Filtering | - | Surface Mount, MLCC | Stacked SMD, 5 L-Lead | 0.575" L x 0.300" W (14.60mm x 7.62mm) | - | 0.300" (7.62mm) | 0.100" (2.54mm) | L-Lead |
-4,50x3,20x2,7mm.jpg)
|
C1812H122JGGAFT050CAP CER 1200PF 2KV C0G/NP0 1812 |
102 |
|
Datasheet |
SMD Indust C0G HVHT200C | Tape & Reel (TR) | Active | 1200 pF | ±5% | 2000V (2kV) | C0G, NP0 | -55°C ~ 200°C | Low ESL, High Voltage, High Temperature | - | Downhole | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.106" (2.70mm) | - | - |
|
715C20DKD25CAP CER 2500PF 20KV Y5U DISK |
53 |
|
Datasheet |
Cera-Mite 715C | Bulk | Active | 2500 pF | -20%, +80% | 20000V (20kV) | Y5U (E) | -30°C ~ 85°C | High Voltage, Low Dissipation Factor | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 1.551" Dia x 1.000" L (39.40mm x 25.40mm) | - | - | - | - |
|
CHT12C103J3GAFT050CAP CER 10000PF 25V C0G/NP0 1206 |
40 |
|
Datasheet |
C0G HT 260C | Tape & Reel (TR) | Active | 10000 pF | ±5% | 25V | C0G, NP0 | -55°C ~ 260°C | Low ESL, High Temperature | - | Downhole | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.043" (1.10mm) | - | - |
|
|
M39014/22-1156CAP CER 1UF 50V X7R 2-DIP |
332 |
|
Datasheet |
Military, MIL-PRF-39014, CKR22 | Tube | Active | 1 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | High Reliability | R (0.01%) | Through Hole | 2-DIP | 0.260" L x 0.092" W (6.60mm x 2.34mm) | 0.175" (4.45mm) | - | 0.325" (8.25mm) | - |
