Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CHT13C153J3GAFT050CAP CER 0.015UF 25V C0G/NP0 1210 |
40 |
|
Datasheet |
C0G HT 260C | Tape & Reel (TR) | Active | 0.015 µF | ±5% | 25V | C0G, NP0 | -55°C ~ 260°C | Low ESL, High Temperature | - | Downhole | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.055" (1.40mm) | - | - |
|
RLMK501W126K3QN003BCAP CER |
183 |
|
- |
SMPS T-BME | Bulk | Active | 12 µF | ±10% | 500V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 1.449" L x 0.320" W (36.80mm x 8.13mm) | 0.770" (19.57mm) | - | 1.375" (34.92mm) | Straight |
-2,00x1,20x1,00mm.jpg)
|
C0805H103J5GAFT050CAP CER 10000PF 50V C0G/NP0 0805 |
28 |
|
Datasheet |
SMD Indust C0G HT200C | Tape & Reel (TR) | Active | 10000 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 200°C | Low ESL, High Temperature | - | Downhole | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.88mm) | - | - |
|

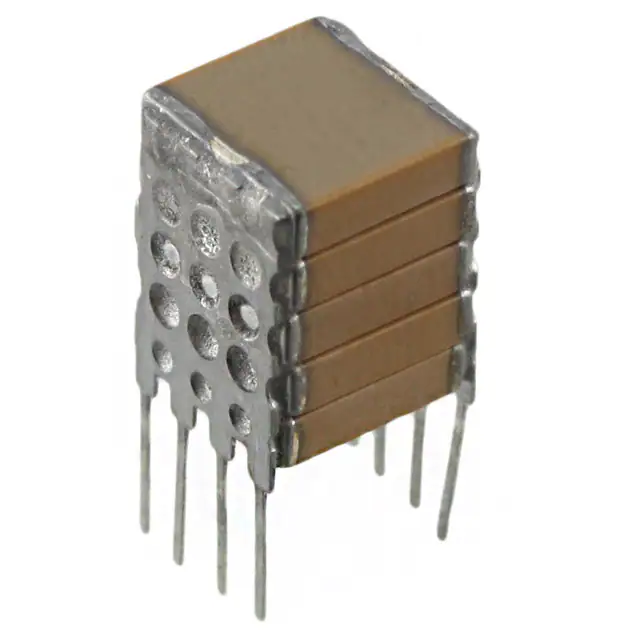

SMX45C505KAN360CAP CER 5UF 50V X7R DIP |
37 |
|
Datasheet |
SMX | Bulk | Active | 5 µF | ±10% | 50V | X7R (VHT) | -55°C ~ 200°C | Low ESL (Stacked), High Temperature | - | SMPS Filtering | - | Through Hole | Stacked DIP, 8 Lead | 0.402" L x 0.441" W (10.20mm x 11.20mm) | 0.360" (9.14mm) | - | 0.400" (10.16mm) | - |
.jpg)
|
CGA4J2X8R1H104M125AECAP CER 0.1UF 50V X8R 0805 |
2,636 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 0.1 µF | ±20% | 50V | X8R | -55°C ~ 150°C | Soft Termination, High Temperature | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.059" (1.50mm) | - | - |
|
C412C153K1R5TA7200CAP CER 0.015UF 100V X7R AXIAL |
5,000 |
|
Datasheet |
AxiMax 400 Comm X7R | Tape & Reel (TR) | Active | 0.015 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Axial | 0.120" Dia x 0.170" L (3.05mm x 4.32mm) | - | - | - | Straight |
|
GA0603Y104KBAAT31GCAP CER 0.1UF 50V X7R 0603 |
8,000 |
|
Datasheet |
GA | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 50V | X7R | -55°C ~ 150°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.038" (0.97mm) | - | - |
|
|
C0402C105K9PAC7411CAP CER 0402 |
1,242,468 |
|
Datasheet |
SMD Comm X5R | Tape & Reel (TR) | Active | 1 µF | ±10% | 6.3V | X5R | -55°C ~ 85°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
CL05B152KB5NNWCCAP CER 1500PF 50V X7R 0402 |
1,999,212 |
|
Datasheet |
CL | Tape & Reel (TR) | Active | 1500 pF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
.jpg)
|
CC0201BRNPO9BNR30CAP CER 0.3PF 50V C0G/NPO 0201 |
29,380 |
|
Datasheet |
CC | Tape & Reel (TR) | Active | 0.3 pF | ±0.1pF | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | - | - | - |
|
CL05B224KO5NNNDCAP CER 0.22UF 16V X7R 0402 |
499,380 |
|
Datasheet |
CL | Tape & Reel (TR) | Active | 0.22 µF | ±10% | 16V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
C0402C470J5GAC7411CAP CER 47PF 50V C0G/NP0 0402 |
497,931 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 47 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | - | - | - |
|
|
CL05C101JB51PNDCAP CER 100PF 50V C0G/NP0 0402 |
491,840 |
|
Datasheet |
CL | Tape & Reel (TR) | Active | 100 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
CC0402KRX5R7BB683CAP CER 0.068UF 16V X5R 0402 |
20,000 |
|
Datasheet |
CC | Tape & Reel (TR) | Active | 0.068 µF | ±10% | 16V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
-0,55mm.jpg)
|
0402N301J500CTCAP CER 300PF 50V C0G/NP0 0402 |
324,080 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 300 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
CL21B105KPFNNNGCAP CER 1UF 10V X7R 0805 |
299,840 |
|
Datasheet |
CL | Tape & Reel (TR) | Active | 1 µF | ±10% | 10V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.053" (1.35mm) | - | - |
|
|
CC0402JPNPO9BN560CAP CER 56PF 50V C0G/NPO 0402 |
299,555 |
|
Datasheet |
CC | Tape & Reel (TR) | Active | 56 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
CC0201JPNPO9BN120CAP CER 12PF 50V C0G/NPO 0201 |
250,000 |
|
Datasheet |
CC | Tape & Reel (TR) | Active | 12 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | 0.013" (0.33mm) | - | - |
|
|
CC0402JPNPO9BN221CAP CER 220PF 50V C0G/NPO 0402 |
247,266 |
|
Datasheet |
CC | Tape & Reel (TR) | Active | 220 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
CL05F104ZO5NNNDCAP CER 0.1UF 16V Y5V 0402 |
245,900 |
|
Datasheet |
CL | Tape & Reel (TR) | Active | 0.1 µF | -20%, +80% | 16V | Y5V (F) | -30°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
