Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C3640C153KGJACAUTOCAP CER 0.015UF 2KV U2J 3640 |
497 |
|
Datasheet |
SMD Auto U2J HV | Tape & Reel (TR) | Active | 0.015 µF | ±10% | 2000V (2kV) | U2J | -55°C ~ 125°C | Low ESL, High Voltage | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 3640 (9110 Metric) | 0.358" L x 0.402" W (9.10mm x 10.20mm) | - | 0.106" (2.70mm) | - | - |
|
C2220C475M1R2L7186CAP CER 4.7UF 100V X7R SMD |
138 |
|
Datasheet |
KPS SMD Comm X7R SnPb | Tape & Reel (TR) | Active | 4.7 µF | ±20% | 100V | X7R | -55°C ~ 125°C | Low ESL (Stacked) | - | Boardflex Sensitive | - | Surface Mount, MLCC | Stacked SMD, 2 J-Lead | 0.236" L x 0.197" W (6.00mm x 5.00mm) | - | 0.217" (5.50mm) | - | J-Lead |
|
|
C3640C153JGJACAUTOCAP CER 0.015UF 2KV U2J 3640 |
430 |
|
Datasheet |
SMD Auto U2J HV | Tape & Reel (TR) | Active | 0.015 µF | ±5% | 2000V (2kV) | U2J | -55°C ~ 125°C | High Voltage | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 3640 (9110 Metric) | 0.358" L x 0.402" W (9.10mm x 10.20mm) | - | 0.106" (2.70mm) | - | - |
|
C2220C226M3R1L7186CAP CER 22UF 25V X7R 2220 |
3,853 |
|
Datasheet |
KPS SMD Comm X7R SnPb | Tape & Reel (TR) | Active | 22 µF | ±20% | 25V | X7R | -55°C ~ 125°C | Low ESL | - | Boardflex Sensitive | - | Surface Mount, MLCC | SMD, J-Lead | 0.236" L x 0.197" W (6.00mm x 5.00mm) | - | 0.150" (3.80mm) | - | J-Lead |
|

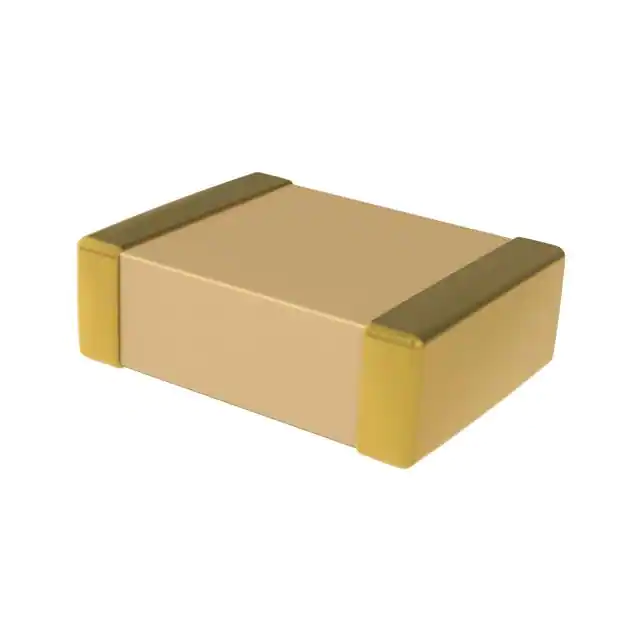

CHT08C472J3GAFT050CAP CER 4700PF 25V C0G/NP0 0805 |
237 |
|
Datasheet |
C0G HT 260C | Tape & Reel (TR) | Active | 4700 pF | ±5% | 25V | C0G, NP0 | -55°C ~ 260°C | Low ESL, High Temperature | - | Downhole | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.043" (1.10mm) | - | - |
|
SE043C106KARCAP CER 10UF 25V X7R RADIAL |
128 |
|
Datasheet |
SE | Bulk | Active | 10 µF | ±10% | 25V | X7R | -55°C ~ 125°C | - | - | SMPS Filtering | - | Through Hole | Radial | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.402" (10.20mm) | - | 0.200" (5.08mm) | Straight |
|
SV13AA102KARCAP CER 1000PF 1KV NP0 RADIAL |
275 |
|
Datasheet |
SV | Bulk | Active | 1000 pF | ±10% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial | 0.300" L x 0.200" W (7.62mm x 5.08mm) | 0.360" (9.14mm) | - | 0.200" (5.08mm) | Straight |
|
2225Y5000474KZTCAP CER 0.47UF 500V 2225 |
795 |
|
Datasheet |
Hiteca™ | Tape & Reel (TR) | Active | 0.47 µF | ±10% | 500V | - | -55°C ~ 125°C | Low ESL, Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.224" L x 0.248" W (5.70mm x 6.30mm) | - | 0.157" (4.00mm) | - | - |
|
|
MR071C474KAACAP CER 0.47UF 100V X7R RADIAL |
228 |
|
Datasheet |
Ceralam® MR | Bulk | Active | 0.47 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.490" L x 0.140" W (12.44mm x 3.55mm) | 0.490" (12.44mm) | - | 0.400" (10.16mm) | Straight |
|
|
C2220H123JDGACTUCAP CER 0.012UF 1KV C0G/NP0 2220 |
290 |
|
Datasheet |
SMD Indust C0G HVHT200C | Tape & Reel (TR) | Active | 0.012 µF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 200°C | Low ESL, High Voltage, High Temperature | - | Downhole | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.106" (2.70mm) | - | - |
|
404022K00512JQRAF9LMCAP CER 5100PF 2KV C0G 4040 |
463 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 5100 pF | ±5% | 2000V (2kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 4040 (1010 Metric) | 0.402" L x 0.402" W (10.20mm x 10.20mm) | - | 0.197" (5.00mm) | - | - |
|
|
404022K00472JQRAF9LMCAP CER 4700PF 2KV C0G 4040 |
461 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 4700 pF | ±5% | 2000V (2kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 4040 (1010 Metric) | 0.402" L x 0.402" W (10.20mm x 10.20mm) | - | 0.197" (5.00mm) | - | - |
|
|
404022500273JQRAF9LMCAP CER 0.027UF 250V C0G SMD |
421 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 0.027 µF | ±5% | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 4040 (1010 Metric) | 0.402" L x 0.402" W (10.20mm x 10.20mm) | - | 0.197" (5.00mm) | - | - |
|
|
404023K00102JQRAF9LMCAP CER 1000PF 3KV C0G 4040 |
398 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 1000 pF | ±5% | 3000V (3kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 4040 (1010 Metric) | 0.402" L x 0.402" W (10.20mm x 10.20mm) | - | 0.197" (5.00mm) | - | - |
|
|
404021K00103JQRAF9LMCAP CER 10000PF 1KV C0G SMD |
392 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 10000 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 4040 (1010 Metric) | 0.402" L x 0.402" W (10.20mm x 10.20mm) | - | 0.197" (5.00mm) | - | - |
|
|
404024K00681JQRAF9LMCAP CER 680PF 4KV C0G 4040 |
366 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 680 pF | ±5% | 4000V (4kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 4040 (1010 Metric) | 0.402" L x 0.402" W (10.20mm x 10.20mm) | - | 0.197" (5.00mm) | - | - |
|
|
404024K00821JQRAF9LMCAP CER 820PF 4KV C0G 4040 |
349 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 820 pF | ±5% | 4000V (4kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 4040 (1010 Metric) | 0.402" L x 0.402" W (10.20mm x 10.20mm) | - | 0.197" (5.00mm) | - | - |
|
|
404027K09P10BQRAF9LMCAP CER 9.1PF 7KV C0G 4040 |
500 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 9.1 pF | ±0.1pF | 7000V (7kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 4040 (1010 Metric) | 0.402" L x 0.402" W (10.20mm x 10.20mm) | - | 0.197" (5.00mm) | - | - |
|
|
404027K03P60BQRAF9LMCAP CER 3.6PF 7KV C0G 4040 |
499 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 3.6 pF | ±0.1pF | 7000V (7kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 4040 (1010 Metric) | 0.402" L x 0.402" W (10.20mm x 10.20mm) | - | 0.197" (5.00mm) | - | - |
|
|
404027K08P20BQRAF9LMCAP CER 8.2PF 7KV C0G 4040 |
494 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 8.2 pF | ±0.1pF | 7000V (7kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 4040 (1010 Metric) | 0.402" L x 0.402" W (10.20mm x 10.20mm) | - | 0.197" (5.00mm) | - | - |
