Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
350MXC180MEFCSN30X25CAP ALUM 180UF 20% 350V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 180 µF | ±20% | 350 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 920 mA @ 120 Hz | 1.288 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LAR2E561MELB30CAP ALUM 560UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LAR | Bulk | Active | 560 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.25 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
LLG2E681MELB25CAP ALUM 680UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LLG | Bulk | Active | 680 µF | ±20% | 250 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 3.75 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ELG478M063AT2AACAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ELG | Bulk | Active | 4.7 mF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.8 A @ 120 Hz | 3.248 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
380LX681M200J032CAP ALUM 680UF 20% 200V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Active | 680 µF | ±20% | 200 V | 270mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.7 A @ 120 Hz | 3.8 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
SLP822M050H5P3CAP ALUM 8200UF 20% 50V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 8200 µF | ±20% | 50 V | 57mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.85 A @ 120 Hz | 4.81 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
SLP181M385A4P3CAP ALUM 180UF 20% 385V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 180 µF | ±20% | 385 V | 1.843Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 940 mA @ 120 Hz | 1.38 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
SLP181M385E3P3CAP ALUM 180UF 20% 385V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 180 µF | ±20% | 385 V | 1.843Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 880 mA @ 120 Hz | 1.29 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
SLP271M350E3P3CAP ALUM 270UF 20% 350V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 270 µF | ±20% | 350 V | 1.229Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.17 A @ 120 Hz | 1.72 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
380LQ153M035K042CAP ALUM 15000UF 20% 35V SNAP TH |
0 |
|
Datasheet |
380LQ | Bulk | Active | 15000 µF | ±20% | 35 V | 36mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.6 A @ 120 Hz | 6.4 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
381LQ222M100J452CAP ALUM 2200UF 20% 100V SNAP TH |
0 |
|
Datasheet |
381LQ | Bulk | Active | 2200 µF | ±20% | 100 V | 113mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.6 A @ 120 Hz | 2.99 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
MAL214699508E3CAP ALUM 3300UF 20% 16V SMD |
0 |
|
Datasheet |
146 CTI | Tape & Reel (TR) | Active | 3300 µF | ±20% | 16 V | - | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.05 A @ 100 Hz | 1.5 A @ 100 kHz | 50 mOhms | - | 0.709" Dia (18.00mm) | 0.689" (17.50mm) | 0.709" L x 0.709" W (18.00mm x 18.00mm) | Surface Mount | |
|
|
MAL214699009E3CAP ALUM 1200UF 20% 35V SMD |
0 |
|
Datasheet |
146 CTI | Tape & Reel (TR) | Active | 1200 µF | ±20% | 35 V | - | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 975 mA @ 100 Hz | 1.5 A @ 100 kHz | 50 mOhms | - | 0.709" Dia (18.00mm) | 0.689" (17.50mm) | 0.709" L x 0.709" W (18.00mm x 18.00mm) | Surface Mount | |
|
MAL214699711E3CAP ALUM 330UF 20% 80V SMD |
0 |
|
Datasheet |
146 CTI | Tape & Reel (TR) | Active | 330 µF | ±20% | 80 V | - | 2500 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 540 mA @ 100 Hz | 900 mA @ 100 kHz | 160 mOhms | - | 0.709" Dia (18.00mm) | 0.689" (17.50mm) | 0.709" L x 0.709" W (18.00mm x 18.00mm) | Surface Mount | |
|
MAL214699909E3CAP ALUM 220UF 20% 100V SMD |
0 |
|
Datasheet |
146 CTI | Tape & Reel (TR) | Active | 220 µF | ±20% | 100 V | - | 2500 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 390 mA @ 100 Hz | 650 mA @ 100 kHz | 300 mOhms | - | 0.709" Dia (18.00mm) | 0.689" (17.50mm) | 0.709" L x 0.709" W (18.00mm x 18.00mm) | Surface Mount | |
|
LGJ2D681MELC20CAP ALUM 680UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LGJ | Bulk | Active | 680 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.52 A @ 120 Hz | 2.28 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
PEH506UBD3220M2CAP ALUM SNAP-IN 85C |
0 |
|
Datasheet |
PEH506 | Box | Active | 220 µF | ±20% | 350 V | 600mOhm @ 100Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.3 A @ 100 Hz | 5.3 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

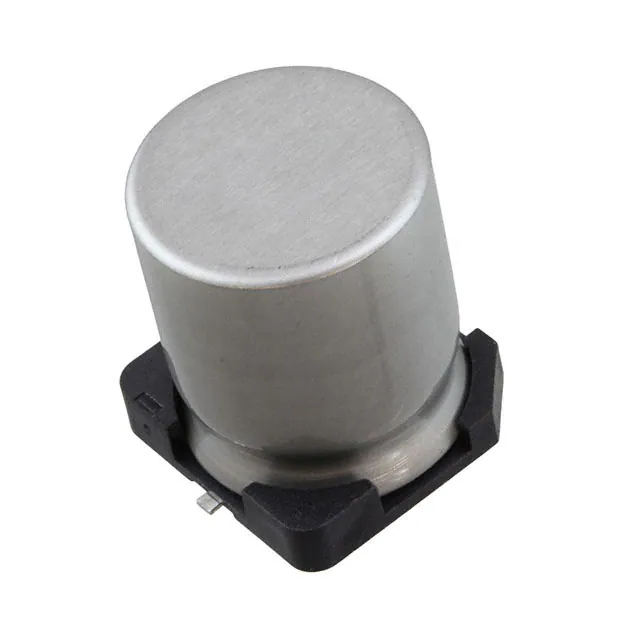

10TLV6800M18X21.5CAP ALUM 6800UF 20% 10V SMD |
0 |
|
Datasheet |
TLV | Tape & Reel (TR) | Active | 6800 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.584 A @ 120 Hz | 2.64 A @ 100 kHz | 28 mOhms | - | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
350BXC100MEFC18X25CAP ALUM 100UF 20% 350V RADIAL |
0 |
|
Datasheet |
BXC | Bulk | Active | 100 µF | ±20% | 350 V | - | 12000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
380LX123M025J032CAP ALUM 12000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Obsolete | 12000 µF | ±20% | 25 V | 50mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.1 A @ 120 Hz | 4.7 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole |
