Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
511D475M100AA4DCAP ALUM 4.7UF 20% 100V RADIAL |
0 |
|
Datasheet |
511D | Bulk | Active | 4.7 µF | ±20% | 100 V | 30.79Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 41 mA @ 120 Hz | 106 mA @ 40 kHz | 4.21 Ohms | 0.098" (2.50mm) | 0.236" Dia (6.00mm) | 0.472" (12.00mm) | - | Through Hole | |
|
TE1160ECAP ALUM 50UF 16V AXIAL TH |
0 |
|
Datasheet |
TE | Bulk | Active | 50 µF | -10%, +75% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.315" Dia x 0.689" L (8.00mm x 17.50mm) | - | - | Through Hole | |
|
|
TE1207.5ECAP ALUM 30UF 25V AXIAL TH |
0 |
|
Datasheet |
TE | Bulk | Active | 30 µF | -10%, +75% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.315" Dia x 0.689" L (8.00mm x 17.50mm) | - | - | Through Hole | |
|
|
TE1207ECAP ALUM 25UF 25V AXIAL TH |
0 |
|
Datasheet |
TE | Bulk | Active | 25 µF | -10%, +75% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.315" Dia x 0.689" L (8.00mm x 17.50mm) | - | - | Through Hole | |
|
|
TE1304.2ECAP ALUM 15UF 50V AXIAL TH |
0 |
|
Datasheet |
TE | Bulk | Active | 15 µF | -10%, +75% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.315" Dia x 0.689" L (8.00mm x 17.50mm) | - | - | Through Hole | |
|
160MXC820MEFCSN22X45CAP ALUM 820UF 20% 160V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 820 µF | ±20% | 160 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 3 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
16MXC10000MEFC20X35CAP ALUM 10000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 10000 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.15 A @ 120 Hz | 2.4725 A @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
200VXH680MEFC25X35CAP ALUM 680UF 20% 200V SNAP TH |
0 |
|
Datasheet |
VXH | Bulk | Active | 680 µF | ±20% | 200 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.11 A @ 120 Hz | 3.165 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
250MXC560MEFC25X40CAP ALUM 560UF 20% 250V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 560 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.8 A @ 120 Hz | 2.7 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
250VXR470MEFC25X40CAP ALUM 470UF 20% 250V SNAP TH |
0 |
|
Datasheet |
VXR | Bulk | Not For New Designs | 470 µF | ±20% | 250 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 2.1 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
400VXR120MEFC25X30CAP ALUM 120UF 20% 400V SNAP TH |
0 |
|
Datasheet |
VXR | Bulk | Not For New Designs | 120 µF | ±20% | 400 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 750 mA @ 120 Hz | 1.05 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
450KXF68MEFC25X20CAP ALUM 68UF 20% 450V SNAP TH |
0 |
|
Datasheet |
KXF | Bulk | Active | 68 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 500 mA @ 120 Hz | 700 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
PEH506PAF4150M2CAP ALUM SNAP-IN 85C |
0 |
|
Datasheet |
PEH506 | Box | Active | 1.5 mF | ±20% | 100 V | 140mOhm @ 100Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.8 A @ 100 Hz | 6.9 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
160MXC1000MEFC30X30CAP ALUM 1000UF 20% 160V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 1000 µF | ±20% | 160 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.25 A @ 120 Hz | 3.375 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
220USG680MEFC30X25CAP ALUM 680UF 20% 220V SNAP TH |
0 |
|
Datasheet |
USG | Bulk | Active | 680 µF | ±20% | 220 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.46 A @ 120 Hz | 3.69 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL213846152E3CAP ALUM 1500UF 20% 25V SNAP TH |
0 |
|
Datasheet |
138 AML | Tape & Reel (TR) | Active | 1500 µF | ±20% | 25 V | 170mOhm @ 100kHz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 1.02 A @ 100 Hz | - | 150 mOhms | - | 0.591" Dia (15.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
|
LSG271M2P---3035SCAP ALUM 420V POLAR |
0 |
|
- |
LSG | Active | 270 µF | ±20% | 420 V | 737mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.06 A @ 120 Hz | 1.5158 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | ||
|
450USG180MEFCSN22X40CAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Datasheet |
USG | Bulk | Active | 180 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 1.96 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL204311151E3CAP ALUM 150UF 160V AXIAL TH |
0 |
|
Datasheet |
043 ASH | Tape & Box (TB) | Active | 150 µF | -10%, +50% | 160 V | 1Ohm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 760 mA @ 100 Hz | - | 700 mOhms | - | 0.709" Dia x 1.496" L (18.00mm x 38.00mm) | - | - | Through Hole | |
|

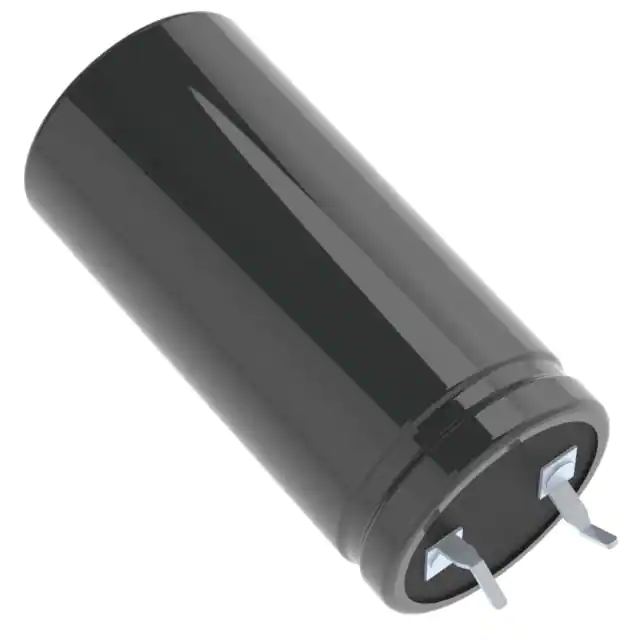

LKS2A122MESYCAP ALUM 1200UF 20% 100V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 1200 µF | ±20% | 100 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.15 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.654" (42.00mm) | - | Through Hole |
