Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B43624C9187M000CAP ALUM 180UF 20% 400V SNAP TH |
0 |
|
Datasheet |
B43624 | Bulk | Active | 180 µF | ±20% | 400 V | 480mOhm @ 100Hz | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.31 A @ 100 Hz | - | 680 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL204246159E3CAP ALUM 15UF 400V AXIAL TH |
0 |
|
Datasheet |
042 ASH | Tape & Box (TB) | Active | 15 µF | -10%, +50% | 400 V | 5Ohm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 210 mA @ 100 Hz | - | 3.1 Ohms | 0.689" (17.50mm) | 0.591" Dia (15.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
B41252B4399M000CAP ALUM 39000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
B41252 | Bulk | Active | 39000 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.1 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
EKMS161VSN102MR25SCAP ALUM 1000UF 20% 160V SNAP TH |
0 |
|
Datasheet |
KMS | Bulk | Active | 1000 µF | ±20% | 160 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 3.75 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.083" (27.50mm) | - | Through Hole | |
|
ELD108M200AS5AVCAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ELD | Bulk | Active | 1 mF | ±20% | 200 V | 199mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.32 A @ 120 Hz | 3.248 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LAS2G121MELZ30CAP ALUM 120UF 20% 400V SNAP TH |
0 |
|
Datasheet |
LAS | Bulk | Active | 120 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 760 mA @ 120 Hz | 874 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

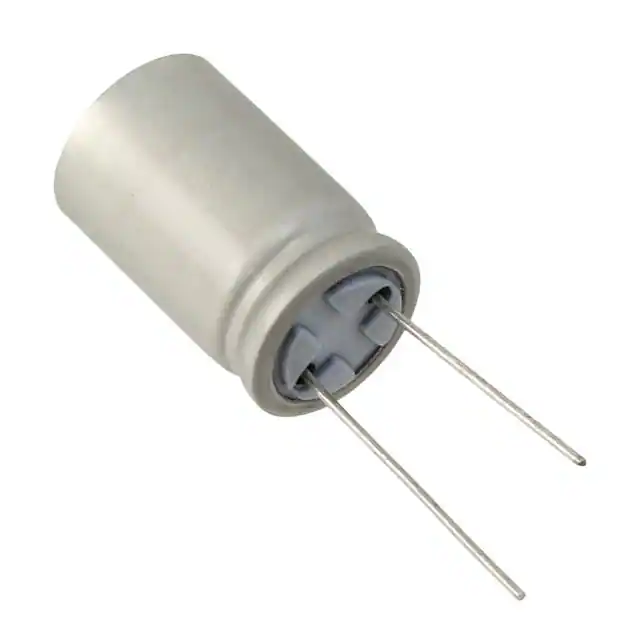

UBX1E471MHL1TNCAP ALUM 470UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
UBX | Cut Tape (CT) | Active | 470 µF | ±20% | 25 V | - | 2000 Hrs @ 150°C | -55°C ~ 150°C | Polar | - | Automotive | 400 mA @ 120 Hz | 800 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
|
100USC2200MEFC22X45CAP ALUM 2200UF 20% 100V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 2200 µF | ±20% | 100 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.12 A @ 120 Hz | 3.588 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
10VXG8200MEFC22X25CAP ALUM 8200UF 20% 10V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 8200 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.36 A @ 120 Hz | 1.564 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
220USG680MEFC25X30CAP ALUM 680UF 20% 220V SNAP TH |
0 |
|
Datasheet |
USG | Bulk | Active | 680 µF | ±20% | 220 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.46 A @ 120 Hz | 3.69 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
350MXC270MEFC25X40CAP ALUM 270UF 20% 350V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 270 µF | ±20% | 350 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.18 A @ 120 Hz | 1.652 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
35MXG2700MEFCSN20X25CAP ALUM 2700UF 20% 35V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 2700 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.29 A @ 120 Hz | 1.4835 A @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
420MXH180MEFC25X25CAP ALUM 180UF 20% 420V SNAP TH |
0 |
|
Datasheet |
MXH | Bulk | Active | 180 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
80VXG1500MEFC25X30CAP ALUM 1500UF 20% 80V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 1500 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.74 A @ 120 Hz | 2.001 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
B43641A9227M057CAP ALUM 220UF 20% 400V SNAP TH |
0 |
|
Datasheet |
B43641 | Bulk | Active | 220 µF | ±20% | 400 V | 420mOhm @ 100Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.17 A @ 100 Hz | - | 620 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
EKMS421VSN181MP40SCAP ALUM 180UF 20% 420V SNAP TH |
0 |
|
Datasheet |
KMS | Bulk | Active | 180 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.04 A @ 120 Hz | 1.4872 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.673" (42.50mm) | - | Through Hole | |
|
|
ELG227M400AT2AACAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ELG | Bulk | Active | 220 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 1.595 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
LSR181M2W---3525SCAP ALUM 450V POLAR |
0 |
|
- |
LSR | Active | 180 µF | ±20% | 450 V | 664mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.6 A @ 120 Hz | 2.24 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | ||
|
|
B43548B6107M060CAP ALUM 500V POLAR |
0 |
|
Datasheet |
B43548 | Bulk | Active | 100 µF | ±20% | 500 V | 690mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | 970 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
B43643A9227M057CAP ALUM 220UF 20% 400V SNAP TH |
0 |
|
Datasheet |
B43643 | Bulk | Active | 220 µF | ±20% | 400 V | 420mOhm @ 100Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.17 A @ 100 Hz | - | 600 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole |
