Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

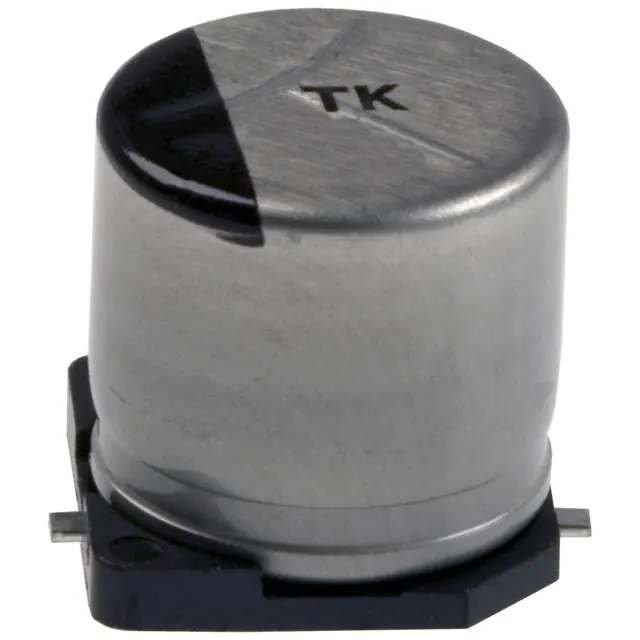

EEE-TK1A332AMCAP ALUM 3300UF 20% 10V SMD |
0 |
|
Datasheet |
TK | Tape & Reel (TR) | Active | 3300 µF | ±20% | 10 V | 75mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 975 mA @ 120 Hz | 1.3 A @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.650" (16.50mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
|
EEE-TK1C222AMCAP ALUM 2200UF 20% 16V SMD |
0 |
|
Datasheet |
TK | Tape & Reel (TR) | Active | 2200 µF | ±20% | 16 V | 75mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 975 mA @ 120 Hz | 1.3 A @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.650" (16.50mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
|
EEE-TK1K221AMCAP ALUM 220UF 20% 80V SMD |
0 |
|
Datasheet |
TK | Tape & Reel (TR) | Active | 220 µF | ±20% | 80 V | 280mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 300 mA @ 120 Hz | 400 mA @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.650" (16.50mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
250MXC470MEFCSN25X35CAP ALUM 470UF 20% 250V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 470 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.57 A @ 120 Hz | 2.355 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
PEH536RBE3470M2CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH536 | Box | Active | 470 µF | ±20% | 200 V | 270mOhm @ 100Hz | 4600 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 100 Hz | 8.1 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
LSM331M2V---3530SCAP ALUM 350V POLAR |
0 |
|
- |
LSM | Active | 330 µF | ±20% | 350 V | 603mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.33 A @ 120 Hz | 1.862 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | ||
|
|
LSG392M1K---3045SCAP ALUM 80V POLAR |
0 |
|
- |
LSG | Active | 3.9 mF | ±20% | 80 V | 85mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.89 A @ 120 Hz | 3.468 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | ||
|
160MXG820MEFCSN22X35CAP ALUM 820UF 20% 160V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 820 µF | ±20% | 160 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.1 A @ 120 Hz | 3.15 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
B43644E2397M067CAP ALUM 250V POLAR |
0 |
|
Datasheet |
B43644 | Bulk | Active | 390 µF | ±20% | 250 V | 200mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.41 A @ 100 Hz | - | 290 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
PEH536YBD3100M2CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH536 | Box | Active | 100 µF | ±20% | 450 V | 730mOhm @ 100Hz | 4600 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 700 mA @ 100 Hz | 5.2 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL213218331E3CAP ALUM 330UF 63V AXIAL TH |
0 |
|
Datasheet |
132 ALL-DIN | Bulk | Active | 330 µF | -10%, +50% | 63 V | 340mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 600 mA @ 100 Hz | - | - | - | 0.709" Dia x 1.181" L (18.00mm x 30.00mm) | - | - | Through Hole | |
|
LP562M035E3P3CAP ALUM 5600UF 20% 35V SNAP TH |
0 |
|
Datasheet |
LP | Bulk | Active | 5600 µF | ±20% | 35 V | 74mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.05 A @ 120 Hz | 2.255 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
LPX471M200C3P3CAP ALUM 470UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LPX | Bulk | Active | 470 µF | ±20% | 200 V | 423mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.8 A @ 120 Hz | 1.98 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
|
220MXC470MEFCSN30X25CAP ALUM 470UF 20% 220V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 470 µF | ±20% | 220 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.48 A @ 120 Hz | 2.22 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
SLP561M250E5P3CAP ALUM 560UF 20% 250V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 560 µF | ±20% | 250 V | 355mOhm | 3000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
SLPX122M180E5P3CAP ALUM 1200UF 20% 180V SNAP TH |
0 |
|
Datasheet |
SLPX | Bulk | Active | 1200 µF | ±20% | 180 V | 166mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.55 A @ 120 Hz | 5.22 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
SLPX122M180H3P3CAP ALUM 1200UF 20% 180V SNAP TH |
0 |
|
Datasheet |
SLPX | Bulk | Active | 1200 µF | ±20% | 180 V | 166mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.49 A @ 120 Hz | 5.13 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
SLP332M080H3P3CAP ALUM 3300UF 20% 80V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 3300 µF | ±20% | 80 V | 101mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.6 A @ 120 Hz | 3.25 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
|
381LQ473M010K032CAP ALUM 47000UF 20% 10V SNAP TH |
0 |
|
Datasheet |
381LQ | Bulk | Active | 47000 µF | ±20% | 10 V | 24mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.2 A @ 120 Hz | 4.83 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
380LQ272M100H052CAP ALUM 2700UF 20% 100V SNAP TH |
0 |
|
Datasheet |
380LQ | Bulk | Obsolete | 2700 µF | ±20% | 100 V | 123mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.71 A @ 120 Hz | 4.27 A @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole |
