Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELXM251VSN681MQ50SCAP ALUM 680UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LXM | Bulk | Active | 680 µF | ±20% | 250 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.91 A @ 120 Hz | 2.865 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
ELXM421VSN221MQ50SCAP ALUM 220UF 20% 420V SNAP TH |
0 |
|
Datasheet |
LXM | Bulk | Active | 220 µF | ±20% | 420 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.19 A @ 120 Hz | 1.7017 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 2.047" (52.00mm) | - | Through Hole | |
|
250MXC560MEFCSN30X30CAP ALUM 560UF 20% 250V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 560 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.8 A @ 120 Hz | 2.7 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
SLPX122M220E4P3CAP ALUM 1200UF 20% 220V SNAP TH |
0 |
|
Datasheet |
SLPX | Bulk | Active | 1200 µF | ±20% | 220 V | 166mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.72 A @ 120 Hz | 5.47 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
380LQ103M063K452CAP ALUM 10000UF 20% 63V SNAP TH |
0 |
|
Datasheet |
380LQ | Bulk | Active | 10000 µF | ±20% | 63 V | 41mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.52 A @ 120 Hz | 7.5 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
381LQ152M180K052CAP ALUM 1500UF 20% 180V SNAP TH |
0 |
|
Datasheet |
381LQ | Bulk | Active | 1500 µF | ±20% | 180 V | 133mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 3.5 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|

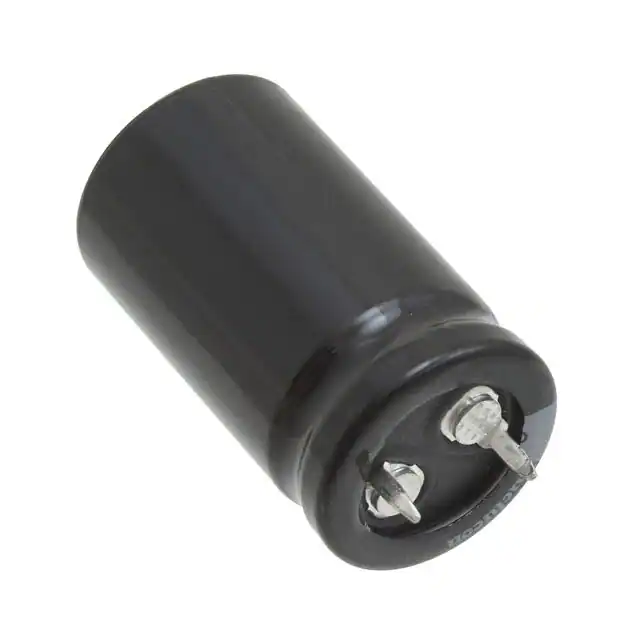

LGU2F391MELCCAP ALUM 390UF 20% 315V SNAP TH |
0 |
|
Datasheet |
LGU | Bulk | Active | 390 µF | ±20% | 315 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.47 A @ 120 Hz | 2.1021 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
400MXG150MEFCSN22X30CAP ALUM 150UF 20% 400V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 150 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
381LX122M160J052CAP ALUM 1200UF 20% 160V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Obsolete | 1200 µF | ±20% | 160 V | 166mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.2 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|

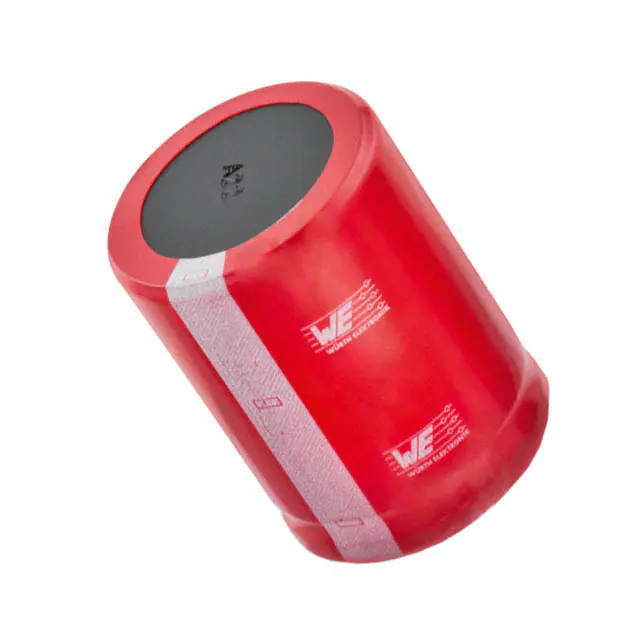

861221385012CAP ALUM 220UF 20% 400V SNAP TH |
0 |
|
Datasheet |
WCAP-AIE8 | Tray | Active | 220 µF | ±20% | 400 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.66 A @ 120 Hz | 2.2908 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL211847681E3CAP ALUM 680UF 20% 40V TH |
0 |
|
Datasheet |
118 AHT | Tape & Reel (TR) | Active | 680 µF | ±20% | 40 V | 255mOhm @ 100Hz | 8000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | 810 mA @ 100 Hz | - | 230 mOhms | - | 0.591" Dia (15.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|

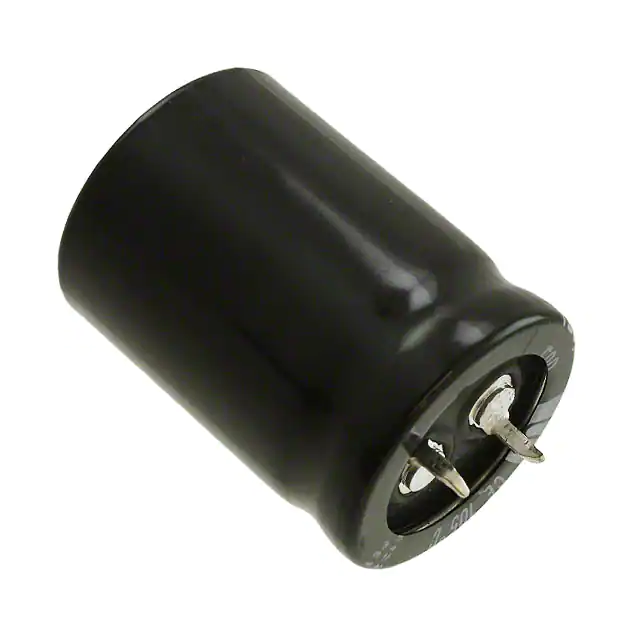

LGN2P561MELA35CAP ALUM 560UF 20% 220V SNAP TH |
11 |
|
Datasheet |
LGN | Bulk | Active | 560 µF | ±20% | 220 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.61 A @ 120 Hz | 2.415 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
B41790A7278Q001CAP ALUM 2700UF 40V TH |
0 |
|
Datasheet |
B41790 | Tray | Active | 2700 µF | -10%, +30% | 40 V | 40mOhm @ 100Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 6.5 A @ 10 kHz | 17 mOhms | 0.364" (9.25mm) | 0.709" Dia (18.00mm) | 1.535" (39.00mm) | - | Through Hole | |
|
ALC80A331BB200CAP ALUM 330UF 20% 200V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 330 µF | ±20% | 200 V | 645.4mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.31 A @ 100 Hz | 2.85 A @ 10 kHz | 388 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
PEH536SBG3470M2CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH536 | Box | Active | 470 µF | ±20% | 250 V | 210mOhm @ 100Hz | 4600 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 100 Hz | 9.9 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LPX331M250C3P3CAP ALUM 330UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LPX | Bulk | Active | 330 µF | ±20% | 250 V | 603mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 1.87 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
AEB106M2WR44T-FCAP ALUM 10UF 20% 450V SMD |
0 |
|
Datasheet |
AEB | Tape & Reel (TR) | Obsolete | 10 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 155 mA @ 120 Hz | 310 mA @ 100 kHz | 3 Ohms | - | 0.709" Dia (18.00mm) | 0.650" (16.50mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
|
AEB336M2ER44T-FCAP ALUM 33UF 20% 250V SMD |
0 |
|
Datasheet |
AEB | Tape & Reel (TR) | Obsolete | 33 µF | ±20% | 250 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 308 mA @ 120 Hz | 560 mA @ 100 kHz | 850 mOhms | - | 0.709" Dia (18.00mm) | 0.650" (16.50mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
|
AEB476M2DR44T-FCAP ALUM 47UF 20% 200V SMD |
0 |
|
Datasheet |
AEB | Tape & Reel (TR) | Obsolete | 47 µF | ±20% | 200 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 330 mA @ 120 Hz | 600 mA @ 100 kHz | 800 mOhms | - | 0.709" Dia (18.00mm) | 0.650" (16.50mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
|
AEB686M2CR44T-FCAP ALUM 68UF 20% 160V SMD |
0 |
|
Datasheet |
AEB | Tape & Reel (TR) | Obsolete | 68 µF | ±20% | 160 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 412.5 mA @ 120 Hz | 750 mA @ 100 kHz | 800 mOhms | - | 0.709" Dia (18.00mm) | 0.650" (16.50mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount |
