Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL225769101E3CAP ALUM 100UF 20% 500V SNAP TH |
0 |
|
- |
257 PRM-SI | Box | Active | 100 µF | ±20% | 500 V | 2.1Ohm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 970 mA @ 100 Hz | 1.358 A @ 10 kHz | 1.82 Ohms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
MAL225749101E3CAP ALUM 100UF 20% 500V SNAP TH |
0 |
|
- |
257 PRM-SI | Box | Active | 100 µF | ±20% | 500 V | 2.11Ohm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 980 mA @ 100 Hz | 1.372 A @ 10 kHz | 1.83 Ohms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
EMVA6R3GDA103MMN0SCAP ALUM 10000UF 20% 6.3V SMD |
0 |
|
Datasheet |
Alchip™- MVA | Tape & Reel (TR) | Obsolete | 10000 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2 A @ 120 Hz | 2.16 A @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.846" (21.50mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|

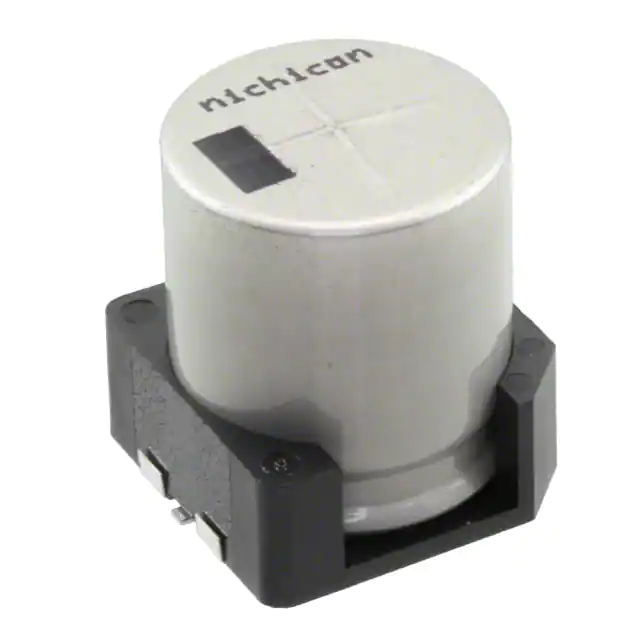

UUE1V102MRS1MSCAP ALUM 1000UF 20% 35V SMD |
0 |
|
Datasheet |
UUE | Tape & Reel (TR) | Obsolete | 1000 µF | ±20% | 35 V | - | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | 1.218 A @ 120 Hz | 1.4 A @ 100 kHz | - | - | 0.787" Dia (20.00mm) | 0.886" (22.50mm) | 0.831" L x 0.831" W (21.10mm x 21.10mm) | Surface Mount | |
|
450VXH180MEFCSN30X25CAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Datasheet |
VXH | Bulk | Active | 180 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.17 A @ 120 Hz | 1.638 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
B43547A5187M062CAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Datasheet |
B43547 | Tray | Active | 180 µF | ±20% | 450 V | 420mOhm @ 100Hz | 8000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.28 A @ 100 Hz | - | 610 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
B43547A5187M067CAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Datasheet |
B43547 | Tray | Active | 180 µF | ±20% | 450 V | 420mOhm @ 100Hz | 8000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.28 A @ 100 Hz | - | 610 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
EKMS3B1VSN471MR30SCAP ALUM 470UF 20% 315V SNAP TH |
0 |
|
Datasheet |
KMS | Bulk | Active | 470 µF | ±20% | 315 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.73 A @ 120 Hz | 2.4739 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.280" (32.50mm) | - | Through Hole | |
|
EKMT421VSN151MP35SCAP ALUM 150UF 20% 420V SNAP TH |
0 |
|
Datasheet |
KMT | Bulk | Active | 150 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.21 A @ 120 Hz | 1.7303 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
LLG2G391MELB30CAP ALUM 390UF 20% 400V SNAP TH |
0 |
|
Datasheet |
LLG | Bulk | Active | 390 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.717 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
381LX331M315K032CAP ALUM 330UF 20% 315V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Active | 330 µF | ±20% | 315 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.7 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
380LQ152M200K052CAP ALUM 1500UF 20% 200V SNAP TH |
0 |
|
Datasheet |
380LQ | Bulk | Active | 1500 µF | ±20% | 200 V | 130mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.87 A @ 120 Hz | 5.12 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
380LQ471M400A032CAP ALUM 470UF 20% 400V SNAP TH |
0 |
|
Datasheet |
380LQ | Bulk | Active | 470 µF | ±20% | 400 V | 420mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.39 A @ 120 Hz | 3.35 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LGG2C152MELB35CAP ALUM 1500UF 20% 160V SNAP TH |
0 |
|
Datasheet |
LGG | Bulk | Active | 1500 µF | ±20% | 160 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 3.75 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LKG1V222MESBCKCAP ALUM 2200UF 20% 35V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 2200 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.95 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
80MXG3300MEFCSN35X25CAP ALUM 3300UF 20% 80V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 3300 µF | ±20% | 80 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.64 A @ 120 Hz | 3.036 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ELG229M035AS6AACAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ELG | Bulk | Active | 22 mF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.9 A @ 120 Hz | 5.684 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
EMVE101GRA101MLH0SCAP ALUM 100UF 20% 100V SMD |
0 |
|
Datasheet |
Alchip™- MVE | Cut Tape (CT) | Active | 100 µF | ±20% | 100 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 450 mA @ 120 Hz | - | - | - | 0.630" Dia (16.00mm) | 0.650" (16.50mm) | 0.669" L x 0.669" W (17.00mm x 17.00mm) | Surface Mount | |
|
380LQ391M350J042CAP ALUM 390UF 20% 350V SNAP TH |
0 |
|
Datasheet |
380LQ | Bulk | Active | 390 µF | ±20% | 350 V | 510mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.06 A @ 120 Hz | 2.88 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
SLPX122M200C9P3CAP ALUM 1200UF 20% 200V SNAP TH |
0 |
|
Datasheet |
SLPX | Bulk | Active | 1200 µF | ±20% | 200 V | 166mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.61 A @ 120 Hz | 5.31 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.969" (50.00mm) | - | Through Hole |
