Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLP272M100E7P3CAP ALUM 2700UF 20% 100V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 2700 µF | ±20% | 100 V | 98mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.86 A @ 120 Hz | 3.58 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
381LX561M250J032CAP ALUM 560UF 20% 250V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Active | 560 µF | ±20% | 250 V | 355mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.8 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ELXM221VSN821MQ50SCAP ALUM 820UF 20% 220V SNAP TH |
0 |
|
Datasheet |
LXM | Bulk | Active | 820 µF | ±20% | 220 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.1 A @ 120 Hz | 3.15 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 2.047" (52.00mm) | - | Through Hole | |
|

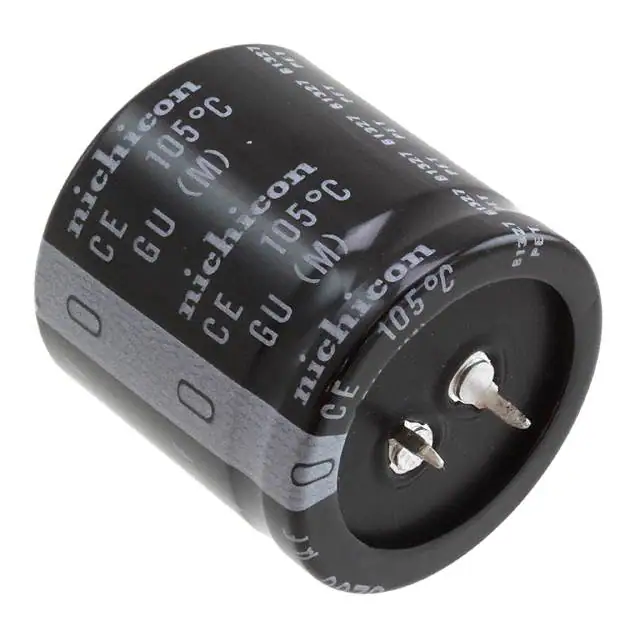

LGU1E183MELCCAP ALUM 18000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
LGU | Bulk | Active | 18000 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.84 A @ 120 Hz | 4.416 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LLS1C563MELCCAP ALUM 56000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
LLS | Bulk | Active | 56000 µF | ±20% | 16 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.96 A @ 120 Hz | 8.8435 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
B43634B5227M002CAP ALUM 220UF 20% 450V SNAP TH |
0 |
|
Datasheet |
B43634 | Bulk | Active | 220 µF | ±20% | 450 V | 480mOhm @ 100Hz | 8000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.57 A @ 100 Hz | 7 A @ 10 kHz | 730 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
ESMH201VNN272MA60WCAP ALUM 2700UF 20% 200V SNAP TH |
0 |
|
Datasheet |
SMH | Bulk | Active | 2700 µF | ±20% | 200 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.441" (62.00mm) | - | Through Hole | |
|
|
200VXG1000MEFC25X45CAP ALUM 1000UF 20% 200V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 1000 µF | ±20% | 200 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.62 A @ 120 Hz | 3.93 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
315VXS220MEFC22X35CAP ALUM 220UF 20% 315V SNAP TH |
0 |
|
Datasheet |
VXS | Bulk | Not For New Designs | 220 µF | ±20% | 315 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.32 A @ 120 Hz | 1.848 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
80KXF560MEFC20X20CAP ALUM 560UF 20% 80V SNAP TH |
0 |
|
Datasheet |
KXF | Bulk | Active | 560 µF | ±20% | 80 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 700 mA @ 120 Hz | 805 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
180MXC1200MEFC35X30CAP ALUM 1200UF 20% 180V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 1200 µF | ±20% | 180 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.6 A @ 120 Hz | 3.9 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
200VXH1000MEFC30X35CAP ALUM 1000UF 20% 200V SNAP TH |
0 |
|
Datasheet |
VXH | Bulk | Active | 1000 µF | ±20% | 200 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.45 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
315VXR470MEFC30X45CAP ALUM 470UF 20% 315V SNAP TH |
0 |
|
Datasheet |
VXR | Bulk | Not For New Designs | 470 µF | ±20% | 315 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 1.96 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
420USG330MEFC30X35CAP ALUM 330UF 20% 420V SNAP TH |
0 |
|
Datasheet |
USG | Bulk | Active | 330 µF | ±20% | 420 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.17 A @ 120 Hz | 3.038 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ERLA211LIN112KR45MCAP ALUM 1100UF 10% 210V SNAP TH |
0 |
|
Datasheet |
RLA | Bulk | Active | 1100 µF | ±10% | 210 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 5.39 A @ 120 Hz | 8.085 A @ 50 kHz | - | 0.559" (14.20mm) | 1.181" Dia (30.00mm) | 1.870" (47.50mm) | - | Through Hole | |
|
ETXH251VSN821MA40SCAP ALUM 820UF 20% 250V SNAP TH |
0 |
|
Datasheet |
TXH | Bulk | Active | 820 µF | ±20% | 250 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.01 A @ 120 Hz | 3.015 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL213845472E3CAP ALUM 4700UF 20% 16V SNAP TH |
0 |
|
Datasheet |
138 AML | Tape & Reel (TR) | Active | 4700 µF | ±20% | 16 V | 100mOhm @ 100kHz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 1.48 A @ 100 Hz | - | 120 mOhms | - | 0.709" Dia (18.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
|
227LMX400M2EDCAP ALUM 220UF 20% 400V SNAP TH |
0 |
|
Datasheet |
LMX | Bulk | Active | 220 µF | ±20% | 400 V | 1.5071Ohm @ 120Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.764 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LKX2G221MESA40CAP ALUM 220UF 20% 400V SNAP TH |
0 |
|
Datasheet |
LKX | Bulk | Active | 220 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | Audio | 1.1 A @ 120 Hz | 1.573 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LAKW6181MELC30CAP ALUM 180UF 20% 420V SNAP TH |
0 |
|
Datasheet |
LAK | Bulk | Active | 180 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 900 mA @ 120 Hz | 1.035 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole |
