Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TE1307E-E3CAP ALUM 50UF 50V AXIAL TH |
0 |
|
Datasheet |
TE | Bulk | Active | 50 µF | - | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | - | - | - | Through Hole | |
|
16MXG10000MEFCSN20X35CAP ALUM 10000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 10000 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.15 A @ 120 Hz | 2.4725 A @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
16VXG27000MEFC35X35CAP ALUM 27000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 27000 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.85 A @ 120 Hz | 4.428 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
250MXC820MEFC25X50CAP ALUM 820UF 20% 250V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 820 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.1 A @ 120 Hz | 3.15 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
315VXH330MEFC30X35CAP ALUM 330UF 20% 315V SNAP TH |
0 |
|
Datasheet |
VXH | Bulk | Active | 330 µF | ±20% | 315 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
350VXR150MEFC25X30CAP ALUM 150UF 20% 350V SNAP TH |
0 |
|
Datasheet |
VXR | Bulk | Not For New Designs | 150 µF | ±20% | 350 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 820 mA @ 120 Hz | 1.148 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL202147332E3CAP ALUM 3300UF 20% 40V SNAP TH |
0 |
|
Datasheet |
021 ASM | Bulk | Active | 3300 µF | ±20% | 40 V | 90mOhm @ 100Hz | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.81 A @ 100 Hz | - | 40 mOhms | 0.768" (19.50mm) | 0.709" Dia (18.00mm) | 1.496" (38.00mm) | - | Through Hole | |
|
|
LSM182M2C---3540SCAP ALUM 160V POLAR |
0 |
|
- |
LSM | Active | 1.8 mF | ±20% | 160 V | 111mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.09 A @ 120 Hz | 4.326 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | ||
|
SLP102M220E4P3CAP ALUM 1000UF 20% 220V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 1000 µF | ±20% | 220 V | 199mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 3.68 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
SLP123M050H4P3CAP ALUM 12000UF 20% 50V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 12000 µF | ±20% | 50 V | 39mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.56 A @ 120 Hz | 5.7 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
30D687M010DD5ACAP ALUM 680UF 20% 10V AXIAL TH |
0 |
|
Datasheet |
30D | Bulk | Active | 680 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.374" Dia x 0.945" L (9.50mm x 24.00mm) | - | - | Through Hole | |
|
ALC80D181CB400CAP ALUM 180UF 20% 400V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 180 µF | ±20% | 400 V | 672mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.32 A @ 100 Hz | 3.93 A @ 10 kHz | 343 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ALC80F181CB400CAP ALUM 180UF 20% 400V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 180 µF | ±20% | 400 V | 672mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.32 A @ 100 Hz | 3.93 A @ 10 kHz | 343 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

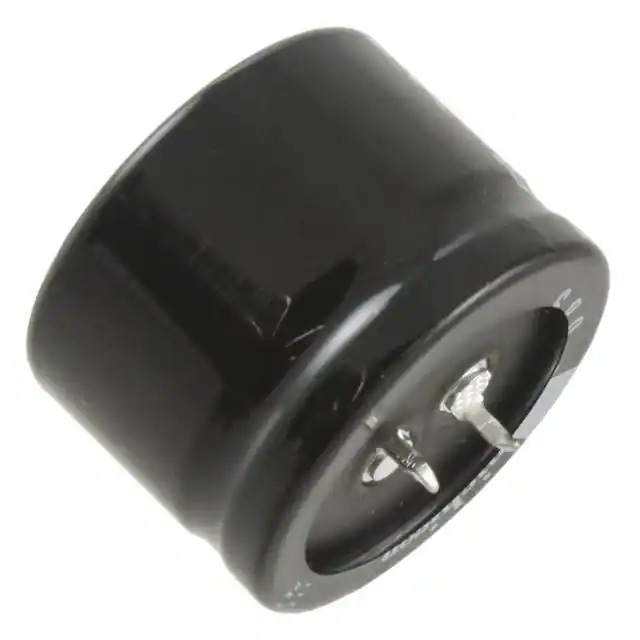

LGUW6221MELCCAP ALUM 220UF 20% 420V SNAP TH |
0 |
|
Datasheet |
LGU | Bulk | Active | 220 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 1.573 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
LKS1H682MESBCAP ALUM 6800UF 20% 50V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 6800 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.15 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.378" (35.00mm) | - | Through Hole | |
.jpg)
|
250USG470MEFCSN20X40CAP ALUM 470UF 20% 250V SNAP TH |
0 |
|
Datasheet |
USG | Bulk | Active | 470 µF | ±20% | 250 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.11 A @ 120 Hz | 3.165 A @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
B41693C0477Q001CAP ALUM 75V POLAR |
0 |
|
Datasheet |
B41693 | Tray | Active | 470 µF | -10%, +30% | 75 V | 140mOhm @ 100Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 4.3 A @ 10 kHz | 48 mOhms | - | 0.709" Dia x 1.535" L (18.00mm x 39.00mm) | - | - | Through Hole | |
|
|
LSM152M2D---3050SCAP ALUM 200V POLAR |
0 |
|
- |
LSM | Active | 1.5 mF | ±20% | 200 V | 88mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.36 A @ 120 Hz | 4.704 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | ||
|
MAL225779101E3CAP ALUM 100UF 20% 500V SNAP TH |
0 |
|
- |
257 PRM-SI | Box | Active | 100 µF | ±20% | 500 V | 2.11Ohm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 980 mA @ 100 Hz | 1.372 A @ 10 kHz | 1.83 Ohms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
MAL225759101E3CAP ALUM 100UF 20% 500V SNAP TH |
0 |
|
- |
257 PRM-SI | Box | Active | 100 µF | ±20% | 500 V | 2.1Ohm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 970 mA @ 100 Hz | 1.358 A @ 10 kHz | 1.82 Ohms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole |
