Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LLG2C182MELB35CAP ALUM 1800UF 20% 160V SNAP TH |
0 |
|
Datasheet |
LLG | Bulk | Active | 1800 µF | ±20% | 160 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.2 A @ 120 Hz | 6.3 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL202149681E3CAP ALUM 680UF 20% 100V SNAP TH |
0 |
|
Datasheet |
021 ASM | Bulk | Active | 680 µF | ±20% | 100 V | 195mOhm @ 100Hz | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.26 A @ 100 Hz | - | 180 mOhms | 0.768" (19.50mm) | 0.709" Dia (18.00mm) | 1.496" (38.00mm) | - | Through Hole | |
|
|
MAL213844682E3CAP ALUM 6800UF 20% 10V SNAP TH |
0 |
|
Datasheet |
138 AML | Tape & Reel (TR) | Active | 6800 µF | ±20% | 10 V | 85mOhm @ 100kHz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 1.88 A @ 100 Hz | - | 110 mOhms | - | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
381LX820M450H022CAP ALUM 82UF 20% 450V SNAP TH |
4 |
|
Datasheet |
381LX | Bulk | Active | 82 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 600 mA @ 120 Hz | 800 mA @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
400USC150MEFC22X35CAP ALUM 150UF 20% 400V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 150 µF | ±20% | 400 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.24 A @ 120 Hz | 1.736 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LQS2V391MELB35CAP ALUM 390UF 20% 350V SNAP TH |
0 |
|
Datasheet |
LQS | Bulk | Active | 390 µF | ±20% | 350 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.859 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL204318339E3CAP ALUM 33UF 385V AXIAL TH |
0 |
|
Datasheet |
043 ASH | Tape & Box (TB) | Active | 33 µF | -10%, +50% | 385 V | 4.5Ohm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 380 mA @ 100 Hz | - | 2.7 Ohms | - | 0.709" Dia x 1.496" L (18.00mm x 38.00mm) | - | - | Through Hole | |
|
|
MAL204318479E3CAP ALUM 47UF 385V AXIAL TH |
0 |
|
Datasheet |
043 ASH | Tape & Box (TB) | Active | 47 µF | -10%, +50% | 385 V | 3.2Ohm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 450 mA @ 100 Hz | - | 2.1 Ohms | - | 0.709" Dia x 1.496" L (18.00mm x 38.00mm) | - | - | Through Hole | |
|
MAL209346181E3CAP ALUM 180UF 20% 400V SNAP TH |
0 |
|
Datasheet |
093 PMG-SI | Tape & Box (TB) | Active | 180 µF | ±20% | 400 V | 810mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.27 A @ 120 Hz | - | 560 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
MAL209356181E3CAP ALUM 180UF 20% 400V SNAP TH |
0 |
|
Datasheet |
093 PMG-SI | Tape & Box (TB) | Active | 180 µF | ±20% | 400 V | 830mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.26 A @ 120 Hz | - | 610 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|

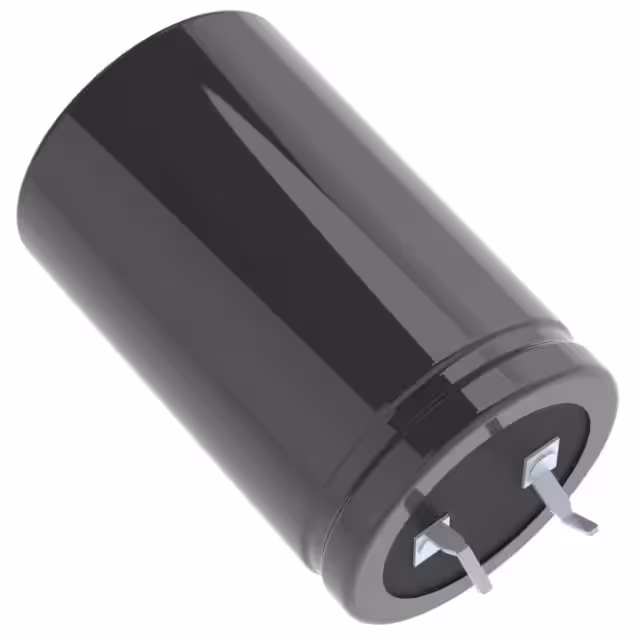

LKS1K332MESACAP ALUM 3300UF 20% 80V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 3300 µF | ±20% | 80 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
LKS1J562MESACAP ALUM 5600UF 20% 63V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 5600 µF | ±20% | 63 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.3 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
ALC40F101BB400CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ALC40 | Box | Active | 100 µF | ±20% | 400 V | 1.193Ohm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 850 mA @ 100 Hz | 2.09 A @ 10 kHz | 788 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
MAL213248331E3CAP ALUM 330UF 63V SNAP TH |
0 |
|
Datasheet |
132 ALL-DIN | Bulk | Active | 330 µF | -10%, +50% | 63 V | 340mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 600 mA @ 100 Hz | - | - | - | 0.709" Dia (18.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
LKX2W151MESA25CAP ALUM 150UF 20% 450V SNAP TH |
0 |
|
Datasheet |
LKX | Bulk | Active | 150 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | Audio | - | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ALC40A151DC500CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ALC40 | Box | Active | 150 µF | ±20% | 500 V | 1.5Ohm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.51 A @ 100 Hz | 2.88 A @ 10 kHz | 1.21 Ohms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
ESMM401VNN681MA50UCAP ALUM 680UF 20% 400V SNAP TH |
0 |
|
- |
SMM | Bulk | Active | 680 µF | ±20% | 400 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.1 A @ 120 Hz | 4.433 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
200HXC560MEFCSN30X25CAP ALUM 560UF 20% 200V SNAP TH |
0 |
|
Datasheet |
HXC | Bulk | Active | 560 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.43 A @ 120 Hz | 3.645 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
ALC70A271BB250CAP ALUM 270UF 20% 250V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 270 µF | ±20% | 250 V | 677.9mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.22 A @ 100 Hz | 2.59 A @ 10 kHz | 393 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
200USG1000MEFCSN22X45CAP ALUM 1000UF 20% 200V SNAP TH |
0 |
|
Datasheet |
USG | Bulk | Active | 1000 µF | ±20% | 200 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.25 A @ 120 Hz | 4.875 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole |
