Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEG124UD2100QT1CAP ALUM AXL GEN PUR 105C |
0 |
|
Datasheet |
PEG124 | Tape & Reel (TR) | Active | 10 µF | -10%, +30% | 350 V | 7.6Ohm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 102 mA @ 100 Hz | 240 mA @ 5 kHz | - | - | 0.512" Dia x 1.142" L (13.00mm x 29.00mm) | - | - | Through Hole | |
|
|
PEH534JCD5100M2CAP ALUM SNAP-IN HIGH RIPPLE |
0 |
|
Datasheet |
PEH534 | Box | Active | 10 mF | ±20% | 35 V | 25mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.1 A @ 100 Hz | 14.3 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

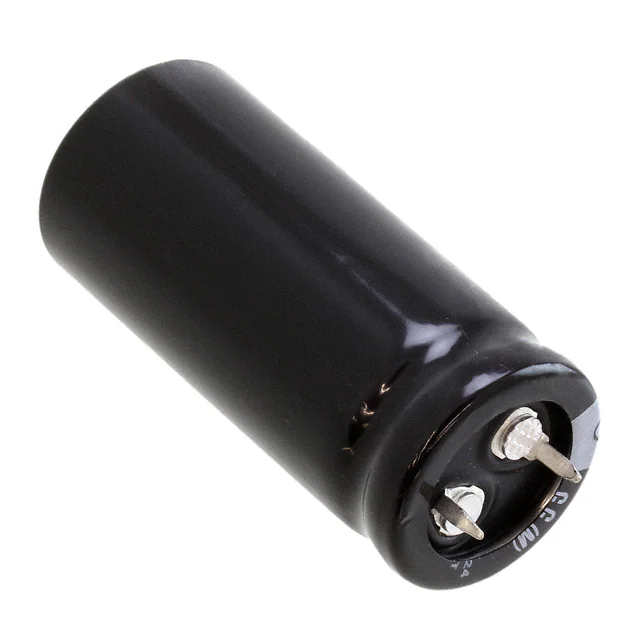

LGGW6271MELZ50CAP ALUM 270UF 20% 420V SNAP TH |
0 |
|
Datasheet |
LGG | Bulk | Active | 270 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.15 A @ 120 Hz | 1.6445 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
381LX102M160J452CAP ALUM 1000UF 20% 160V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Obsolete | 1000 µF | ±20% | 160 V | 199mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 3.1 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ESMR421VSN561MR45SCAP ALUM 560UF 20% 420V SNAP TH |
0 |
|
Datasheet |
SMR | Bulk | Active | 560 µF | ±20% | 420 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.93 A @ 120 Hz | 4.1899 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.870" (47.50mm) | - | Through Hole | |
|
|
200USG470MEFC20X35CAP ALUM 470UF 20% 200V SNAP TH |
0 |
|
Datasheet |
USG | Bulk | Active | 470 µF | ±20% | 200 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.93 A @ 120 Hz | 2.895 A @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
315MXC470MEFC35X30CAP ALUM 470UF 20% 315V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 470 µF | ±20% | 315 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.38 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
350MXC120MEFC22X30CAP ALUM 120UF 20% 350V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 120 µF | ±20% | 350 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 750 mA @ 120 Hz | 1.05 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
420HXG100MEFC20X35CAP ALUM 100UF 20% 420V SNAP TH |
0 |
|
Datasheet |
HXG | Bulk | Active | 100 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.23 A @ 120 Hz | 1.722 A @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
420USH390MEFC22X50CAP ALUM 390UF 20% 420V RADIAL |
0 |
|
Datasheet |
USH | Bulk | Active | 390 µF | ±20% | 420 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
450HXG82MEFC20X30CAP ALUM 82UF 20% 450V SNAP TH |
0 |
|
Datasheet |
HXG | Bulk | Active | 82 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.07 A @ 120 Hz | 1.498 A @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ELH277M450AT3AACAP ALUM SNAP-IN 85C |
0 |
|
Datasheet |
ELH | Bulk | Active | 270 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.465 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
ESMQ500ELL682MP50SCAP ALUM 6800UF 20% 50V RADIAL |
0 |
|
Datasheet |
SMQ | Bulk | Active | 6800 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
PEH532VBF3270M2CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH532 | Box | Active | 270 µF | ±20% | 400 V | 420mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 100 Hz | 3 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LAR2D102MELC25CAP ALUM 1000UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LAR | Bulk | Active | 1000 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.45 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
100MXG2200MEFCSN35X25CAP ALUM 2200UF 20% 100V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 2200 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.55 A @ 120 Hz | 2.9325 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
PEH526KBD4390M3CAP ALUM SNAP-IN HIGH RIPPLE |
0 |
|
Datasheet |
PEH526 | Box | Active | 3.9 mF | ±20% | 40 V | 30mOhm @ 100Hz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 2.8 A @ 100 Hz | 14.3 A @ 5 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
EKMS201VSN122MQ50SCAP ALUM 1200UF 20% 200V SNAP TH |
0 |
|
Datasheet |
KMS | Bulk | Active | 1200 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.78 A @ 120 Hz | 4.17 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 2.067" (52.50mm) | - | Through Hole | |
|
SLPX123M063H4P3CAP ALUM 12000UF 20% 63V SNAP TH |
0 |
|
Datasheet |
SLPX | Bulk | Active | 12000 µF | ±20% | 63 V | 33mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.47 A @ 120 Hz | 8.09 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
|
SLPX123M063H9P3CAP ALUM 12000UF 20% 63V SNAP TH |
0 |
|
Datasheet |
SLPX | Bulk | Active | 12000 µF | ±20% | 63 V | 33mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.76 A @ 120 Hz | 8.45 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.969" (50.00mm) | - | Through Hole |
