Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL215767121E3CAP ALUM 120UF 20% 450V SNAP TH |
0 |
|
Datasheet |
157 PUM-SI | Bulk | Active | 120 µF | ±20% | 450 V | 1.6Ohm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | - | 885 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL215777121E3CAP ALUM 120UF 20% 450V SNAP TH |
0 |
|
Datasheet |
157 PUM-SI | Bulk | Active | 120 µF | ±20% | 450 V | 1.6Ohm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.09 A @ 120 Hz | - | 885 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
MAL215787121E3CAP ALUM 120UF 20% 450V SNAP TH |
0 |
|
Datasheet |
157 PUM-SI | Bulk | Active | 120 µF | ±20% | 450 V | 1.6Ohm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | - | 885 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
ALC40A121CC500CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ALC40 | Box | Active | 120 µF | ±20% | 500 V | 1.85Ohm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.26 A @ 100 Hz | 2.51 A @ 10 kHz | 1.5 Ohms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
200SXC1500MEFCSN35X45CAP ALUM 1500UF 20% 200V SNAP TH |
0 |
|
Datasheet |
SXC | Bulk | Active | 1500 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.08 A @ 120 Hz | 3.6344 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
EKMT421VSN271MQ40SCAP ALUM 270UF 20% 420V SNAP TH |
0 |
|
Datasheet |
KMT | Bulk | Active | 270 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.63 A @ 120 Hz | 2.3309 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.634" (41.50mm) | - | Through Hole | |
|
ALC80C102DF250CAP ALUM 1000UF 20% 250V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 1000 µF | ±20% | 250 V | 178mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.46 A @ 100 Hz | 7.52 A @ 10 kHz | 106 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ALC80D102DF250CAP ALUM 1000UF 20% 250V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 1000 µF | ±20% | 250 V | 178mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.46 A @ 100 Hz | 7.52 A @ 10 kHz | 106 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
ALC80E102DF250CAP ALUM 1000UF 20% 250V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 1000 µF | ±20% | 250 V | 178mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.46 A @ 100 Hz | 7.52 A @ 10 kHz | 106 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ALC80F102DF250CAP ALUM 1000UF 20% 250V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 1000 µF | ±20% | 250 V | 178mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.46 A @ 100 Hz | 7.52 A @ 10 kHz | 106 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
381LQ152M200A022CAP ALUM 1500UF 20% 200V SNAP TH |
0 |
|
Datasheet |
381LQ | Bulk | Obsolete | 1500 µF | ±20% | 200 V | 114mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.8 A @ 120 Hz | 3.92 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
B43641B0477M050CAP ALUM 470UF 20% 420V SNAP TH |
0 |
|
Datasheet |
B43641 | Bulk | Active | 470 µF | ±20% | 420 V | 260mOhm @ 100Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.78 A @ 100 Hz | - | 410 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

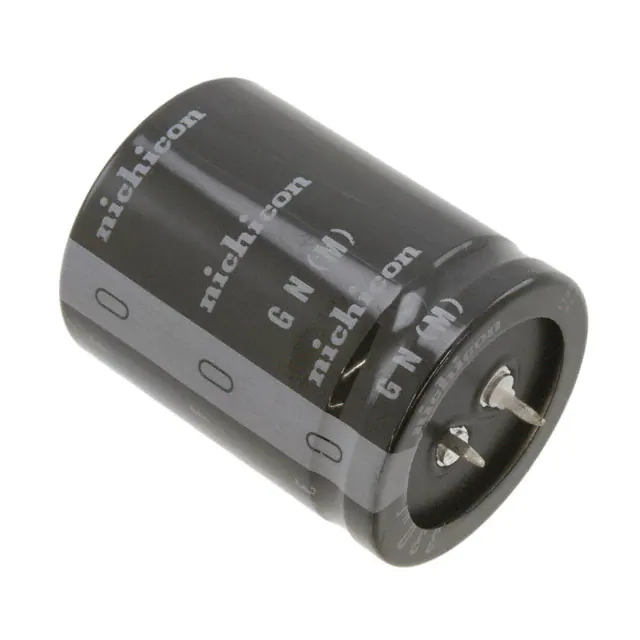

LGN2C272MELC45CAP ALUM 2700UF 20% 160V SNAP TH |
0 |
|
Datasheet |
LGN | Bulk | Active | 2700 µF | ±20% | 160 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.1 A @ 120 Hz | 4.65 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
PEH532PCG4330M2SCAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH532 | Box | Active | 3.3 mF | ±20% | 100 V | 64mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.3 A @ 100 Hz | 8.9 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|

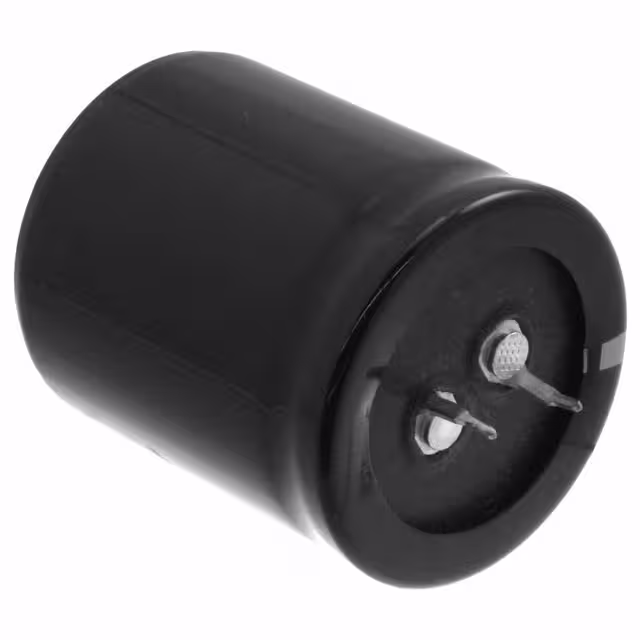

PEH532PDE4330M2CAP ALUM 3300UF 20% 100V SNAP TH |
0 |
|
Datasheet |
PEH532 | Bulk | Active | 3300 µF | ±20% | 100 V | 66mOhm @ 100Hz | 1500 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.2 A @ 100 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
PEH532PCG4330M2CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH532 | Box | Active | 3.3 mF | ±20% | 100 V | 64mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.3 A @ 100 Hz | 8.9 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
B43647A5337M050CAP ALUM 450V POLAR |
0 |
|
Datasheet |
B43647 | Bulk | Active | 330 µF | ±20% | 450 V | 330mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.62 A @ 100 Hz | - | 500 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
B43647B5337M050CAP ALUM 450V POLAR |
0 |
|
Datasheet |
B43647 | Bulk | Active | 330 µF | ±20% | 450 V | 340mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.47 A @ 100 Hz | - | 520 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
PEH227HML4560QE4CAP ALUM 5600UF 25V SOLDER LUG |
0 |
|
Datasheet |
PEH227 | Tray | Active | 5600 µF | -10%, +30% | 25 V | 30mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 2.66 A @ 100 Hz | 7.904 A @ 100 kHz | - | 0.600" (15.24mm) | 0.795" Dia (20.20mm) | 1.130" (28.70mm) | - | Through Hole | |
|
|
350VXH680MEFC30X50CAP ALUM 680UF 20% 350V SNAP TH |
0 |
|
Datasheet |
VXH | Bulk | Active | 680 µF | ±20% | 350 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.43 A @ 120 Hz | 3.402 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole |
