Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
63MXG3900MEFCSN22X40CAP ALUM 3900UF 20% 63V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 3900 µF | ±20% | 63 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.55 A @ 120 Hz | 2.9325 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
350MXC270MEFC30X30CAP ALUM 270UF 20% 350V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 270 µF | ±20% | 350 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.18 A @ 120 Hz | 1.652 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
E82D401VSN102MA65UCAP ALUM SNAP-IN GEN PUR 85C |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
ALF20C391DF400CAP ALUM 390UF 20% 400V PRESS |
0 |
|
Datasheet |
ALF20 | Bulk | Active | 390 µF | ±20% | 400 V | 377mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.19 A @ 100 Hz | 3.96 A @ 10 kHz | 226 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole, Press-Fit | |
|
381LQ561M315J052CAP ALUM 560UF 20% 315V SNAP TH |
0 |
|
Datasheet |
381LQ | Bulk | Active | 560 µF | ±20% | 315 V | 360mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.1 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
EKMS551VSN121MA25SCAP ALUM 120UF 20% 550V SNAP TH |
0 |
|
- |
KMS | Bulk | Active | 120 µF | ±20% | 550 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 880 mA @ 120 Hz | 1.2584 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
B43634B5337M000CAP ALUM 330UF 20% 450V SNAP TH |
0 |
|
Datasheet |
B43634 | Bulk | Active | 330 µF | ±20% | 450 V | 330mOhm @ 100Hz | 8000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.19 A @ 100 Hz | - | 500 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALA7DD391CF500CAP ALUM 390UF 20% 500V SNAP TH |
0 |
|
Datasheet |
ALA7D | Bulk | Active | 390 µF | ±20% | 500 V | 636mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 2.98 A @ 100 Hz | 7.41 A @ 10 kHz | 146.4 mOhms | - | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
ALA7DF391CF500CAP ALUM 390UF 20% 500V SNAP TH |
0 |
|
Datasheet |
ALA7D | Bulk | Active | 390 µF | ±20% | 500 V | 636mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 2.42 A @ 100 Hz | 6.52 A @ 10 kHz | 186.4 mOhms | - | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
PEH228MLQ4120QE4CAP ALUM 1200UF 63V SOLDER LUG |
0 |
|
Datasheet |
PEH228 | Tray | Active | 1200 µF | -10%, +30% | 63 V | 60mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 2.485 A @ 100 Hz | 7.1 A @ 5 kHz | - | 0.600" (15.24mm) | 0.717" Dia (18.20mm) | 1.602" (40.70mm) | - | Through Hole | |
|
|
ALF20C331DD450CAP ALUM 330UF 20% 450V PRESS |
0 |
|
Datasheet |
ALF20 | Bulk | Active | 330 µF | ±20% | 450 V | 364mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.2 A @ 100 Hz | 3.68 A @ 10 kHz | 242 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole, Press-Fit | |
|
|
107TMA400MCAP ALUM 100UF 20% 400V AXIAL TH |
0 |
|
Datasheet |
TMA | Bulk | Active | 100 µF | ±20% | 400 V | 4.145Ohm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Bypass, Decoupling | 330 mA @ 120 Hz | 495 mA @ 50 kHz | - | - | 0.866" Dia x 2.010" L (22.00mm x 51.00mm) | - | - | Through Hole | |
|

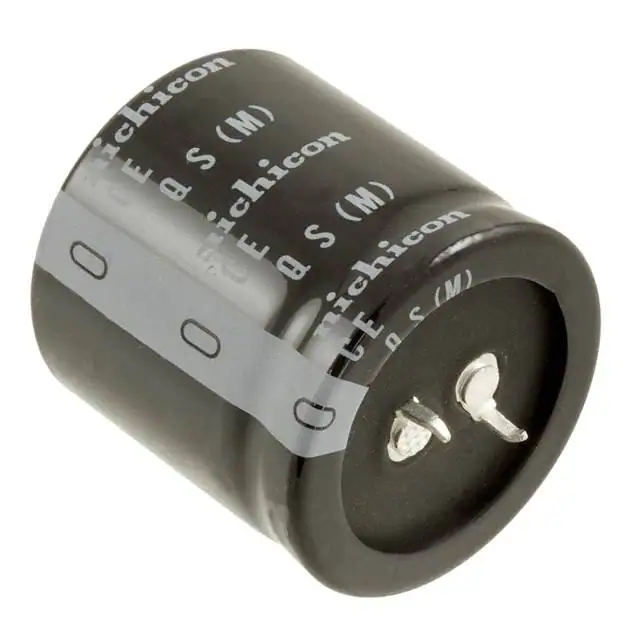

LQS2G471MELC35CAP ALUM 470UF 20% 400V SNAP TH |
0 |
|
Datasheet |
LQS | Bulk | Active | 470 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.68 A @ 120 Hz | 2.002 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ALC70C241EB550CAP ALUM 240UF 20% 550V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 240 µF | ±20% | 550 V | 1.825Ohm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.6 A @ 100 Hz | 2.46 A @ 10 kHz | 1.588 Ohms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ALC70D241EB550CAP ALUM 240UF 20% 550V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 240 µF | ±20% | 550 V | 1.825Ohm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.6 A @ 100 Hz | 2.46 A @ 10 kHz | 1.588 Ohms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALC70E241EB550CAP ALUM 240UF 20% 550V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 240 µF | ±20% | 550 V | 1.825Ohm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.6 A @ 100 Hz | 2.46 A @ 10 kHz | 1.588 Ohms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ALC70F241EB550CAP ALUM 240UF 20% 550V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 240 µF | ±20% | 550 V | 1.825Ohm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.6 A @ 100 Hz | 2.46 A @ 10 kHz | 1.588 Ohms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL211947681E3CAP ALUM 680UF 40V AXIAL TH |
0 |
|
Datasheet |
119 AHT-DIN | Tape & Reel (TR) | Active | 680 µF | -10%, +50% | 40 V | 280mOhm @ 100Hz | 8000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 970 mA @ 100 Hz | - | 220 mOhms | - | 0.709" Dia (18.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
|
MAL211948331E3CAP ALUM 330UF 63V AXIAL TH |
0 |
|
Datasheet |
119 AHT-DIN | Tape & Reel (TR) | Active | 330 µF | -10%, +50% | 63 V | 430mOhm @ 100Hz | 8000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 880 mA @ 100 Hz | - | 230 mOhms | - | 0.709" Dia (18.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
EKMS3B1VSN681MA35SCAP ALUM 680UF 20% 315V SNAP TH |
0 |
|
Datasheet |
KMS | Bulk | Active | 680 µF | ±20% | 315 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.26 A @ 120 Hz | 3.2318 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.476" (37.50mm) | - | Through Hole |
