Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C5750C0G2A154J230KECAP CER 0.15UF 100V C0G/NP0 2220 |
843 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 0.15 µF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.102" (2.60mm) | - | - |
-1,55mm-Tan.jpg)
|
C08BL102X-1ZN-X0TCAP CER 1000PF 100V 0805 |
8,163 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 1000 pF | - | 100V | - | -55°C ~ 125°C | - | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.081" L x 0.051" W (2.06mm x 1.30mm) | - | 0.061" (1.55mm) | - | - |
|
C333C104K1R5TACAP CER 0.1UF 100V X7R RADIAL |
304 |
|
Datasheet |
GoldMax 300 Comm X7R | Bulk | Active | 0.1 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.280" L x 0.160" W (7.11mm x 4.07mm) | 0.400" (10.16mm) | - | 0.200" (5.08mm) | Formed Leads - Kinked |
|

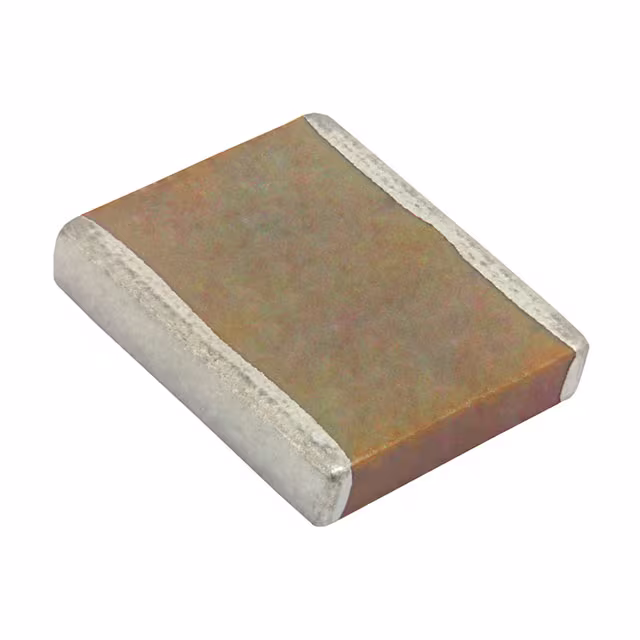

HV2225A470JXMATHVCAP CER 47 PF 5KV C0G 2225 |
196 |
|
Datasheet |
HV | Tape & Reel (TR) | Active | 47 pF | ±5% | 5000V (5kV) | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.220" L x 0.250" W (5.59mm x 6.35mm) | - | 0.106" (2.70mm) | - | - |
-0,56mm.jpg)
|
LD025A101FAB2ACAP CER 100PF 50V C0G/NP0 0402 |
11,718 |
|
Datasheet |
LD | Tape & Reel (TR) | Active | 100 pF | ±1% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.56mm) | - | - |
|
CAN22C334KARACTUCAP CER 0.33UF 250VAC X7R 2225 |
381 |
|
Datasheet |
CAN SMD Indust X7R | Tape & Reel (TR) | Active | 0.33 µF | ±10% | 250VAC | X7R | -55°C ~ 125°C | Low ESL, Low ESR | - | General Purpose | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.220" L x 0.252" W (5.60mm x 6.40mm) | - | 0.087" (2.20mm) | - | - |
|
FA22C0G2W683JNU06CAP CER 0.068UF 450V C0G RADIAL |
2,391 |
|
Datasheet |
FA | Cut Tape (CT) | Active | 0.068 µF | ±5% | 450V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.295" L x 0.177" W (7.50mm x 4.50mm) | 0.335" (8.50mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
564RC0GAA302EL470JCAP CER 47PF 3KV NP0 RADIAL |
975 |
|
Datasheet |
Cera-Mite 564R | Bulk | Active | 47 pF | ±5% | 3000V (3kV) | C0G, NP0 | -25°C ~ 105°C | Low Dissipation Factor | - | General Purpose | - | Through Hole | Radial, Disc | - | - | - | - | Straight |
|
|
FA22NP02E104JRU06CAP CER 0.1UF 250V NP0 RAD |
940 |
|
Datasheet |
FA | Cut Tape (CT) | Active | 0.1 µF | ±5% | 250V | C0G, NP0 | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.295" L x 0.177" W (7.50mm x 4.50mm) | 0.335" (8.50mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
-0,80mm-Tan.jpg)
|
C06BL851X-5ZN-X0TCAP CER 850PF 50V 0603 |
2,080 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 850 pF | - | 50V | - | -55°C ~ 125°C | - | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.060" L x 0.031" W (1.52mm x 0.79mm) | - | 0.030" (0.76mm) | - | - |
-4,50x3,20x2,7mm.jpg)
|
C1812X224J5GAC7800CAP CER 0.22UF 50V C0G/NP0 1812 |
1,787 |
|
Datasheet |
SMD Comm C0G Flex | Tape & Reel (TR) | Active | 0.22 µF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL, Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.071" (1.80mm) | - | - |
|
C330C104K1R5TA7301CAP CER 0.1UF 100V X7R RADIAL |
1,704 |
|
Datasheet |
GoldMax 300 Comm X7R | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.280" L x 0.160" W (7.11mm x 4.07mm) | 0.360" (9.14mm) | - | 0.200" (5.08mm) | Formed Leads |
|
KCA55L7UMF332KL01LCAP CER 3300PF 250V U2J SMD |
1,037 |
|
Datasheet |
KCA | Tape & Reel (TR) | Active | 3300 pF | ±10% | 250V | U2J | -55°C ~ 125°C | - | AEC-Q200, X1, Y2 | Safety, Automotive | - | Surface Mount, MLCC | SMD, J-Lead | 0.240" L x 0.201" W (6.10mm x 5.10mm) | - | 0.118" (3.00mm) | - | J-Lead |
|
|
C2225C225M5UACTUCAP CER 2.2UF 50V Z5U 2225 |
678 |
|
Datasheet |
SMD Comm Z5U | Tape & Reel (TR) | Active | 2.2 µF | ±20% | 50V | Z5U | 10°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.220" L x 0.252" W (5.60mm x 6.40mm) | - | 0.057" (1.45mm) | - | - |
|
|
GCM32E5C3A153FX0ALCAP CER 0.015UF 1KV C0G/NP0 1210 |
561 |
|
Datasheet |
GCM | Tape & Reel (TR) | Active | 0.015 µF | ±1% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.112" (2.85mm) | - | - |
-4,60x6,40x1,65mm.jpg)
|
C1825X684K2RAC7800CAP CER 0.68UF 200V X7R 1825 |
3,810 |
|
Datasheet |
SMD Comm X7R Flex | Tape & Reel (TR) | Active | 0.68 µF | ±10% | 200V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.181" L x 0.252" W (4.60mm x 6.40mm) | - | 0.057" (1.45mm) | - | - |
|
20VLS20-RCAP CER 0.02UF 400VAC Y5V RADIAL |
978 |
|
Datasheet |
Cera-Mite 20VL | Bulk | Active | 0.02 µF | ±20% | 400VAC | Y5V (F) | -30°C ~ 125°C | - | X2 | Safety | - | Through Hole | Radial, Disc | 0.720" Dia (18.30mm) | 0.846" (21.50mm) | - | 0.374" (9.50mm) | Straight |
|
564R30GAS10GJCAP CER 10000PF 3KV Y5U RADIAL |
714 |
|
Datasheet |
Cera-Mite 564R | Bulk | Active | 10000 pF | ±20% | 3000V (3kV) | Y5U | -25°C ~ 105°C | - | - | General Purpose | - | Through Hole | Radial, Disc | 0.787" Dia (20.00mm) | 0.976" (24.80mm) | - | 0.374" (9.50mm) | Straight |
|
CKC18C223JWGACAUTOCAP CER 22NF 650V C0G 1812 |
585 |
|
Datasheet |
KC Link Auto C0G | Tape & Reel (TR) | Active | 0.022 µF | ±5% | 650V | C0G, NP0 | -55°C ~ 150°C | Low ESL, High Voltage, High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.061" (1.55mm) | - | - |
|
|
564R30TSD47CAP CER 4700PF 3KV X7R RADIAL |
483 |
|
Datasheet |
Cera-Mite 564R | Bulk | Active | 4700 pF | ±10% | 3000V (3kV) | X7R | -25°C ~ 105°C | - | - | General Purpose | - | Through Hole | Radial, Disc | 0.720" Dia (18.30mm) | 0.909" (23.10mm) | - | 0.374" (9.50mm) | Straight |
