Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
440LD68-RCAP CER 6800PF 760VAC Y5U RADIAL |
297 |
|
Datasheet |
Cera-Mite 440L | Bulk | Active | 6800 pF | ±20% | 760VAC | Y5U (E) | -30°C ~ 125°C | - | X1, Y1 | Safety | - | Through Hole | Radial, Disc | 0.720" Dia (18.30mm) | 0.846" (21.50mm) | - | 0.374" (9.50mm) | Straight |
|
C1812C943KCGLCAUTOCAP CER 0.094UF 500V C0G 1812 |
203 |
|
Datasheet |
KONNEKT Auto C0G | Tape & Reel (TR) | Active | 0.094 µF | ±10% | 500V | C0G, NP0 | -55°C ~ 125°C | Low ESL (Stacked), High Voltage | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.217" (5.50mm) | - | - |
|
CKG57KX7R1E226M335JHCAP CER 22UF 25V X7R SMD |
3,023 |
|
Datasheet |
MEGACAP, CKG | Tape & Reel (TR) | Active | 22 µF | ±20% | 25V | X7R | -55°C ~ 125°C | Low ESL | - | SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | SMD, J-Lead | 0.236" L x 0.197" W (6.00mm x 5.00mm) | - | 0.138" (3.50mm) | - | J-Lead |
|
CKG32KC0G3A682J335AJCAP CER 6800PF 1KV C0G SMD |
2,460 |
|
Datasheet |
MEGACAP, CKG | Tape & Reel (TR) | Active | 6800 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | AEC-Q200 | Automotive, SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | SMD, J-Lead | 0.142" L x 0.102" W (3.60mm x 2.60mm) | - | 0.136" (3.45mm) | - | J-Lead |
.JPG)
|
HV2220Y471KX6ATHVCAP CER 470 PF 6KV X7R 2220 |
1,638 |
|
Datasheet |
HV | Tape & Reel (TR) | Active | 470 pF | ±10% | 6000V (6kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.220" L x 0.200" W (5.59mm x 5.08mm) | - | 0.106" (2.70mm) | - | - |
-2,29mm.jpg)
|
22205C475KAT2ACAP CER 4.7UF 50V X7R 2220 |
1,253 |
|
Datasheet |
KGM - X7R | Tape & Reel (TR) | Active | 4.7 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.087" (2.21mm) | - | - |
|
|
CKG32KC0G3A472J335AJCAP CER 4700PF 1KV C0G SMD |
630 |
|
Datasheet |
MEGACAP, CKG | Tape & Reel (TR) | Active | 4700 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | AEC-Q200 | Automotive, SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | SMD, J-Lead | 0.142" L x 0.102" W (3.60mm x 2.60mm) | - | 0.136" (3.45mm) | - | J-Lead |
|
C1812C225J3RACTUCAP CER 2.2UF 25V X7R 1812 |
288 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 2.2 µF | ±5% | 25V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.106" (2.70mm) | - | - |
-4,50x3,20x2,7mm.jpg)
|
C1812C105K1RACAUTOCAP CER 1UF 100V X7R 1812 |
355 |
|
Datasheet |
SMD Auto X7R | Tape & Reel (TR) | Active | 1 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive, Bypass, Decoupling | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.065" (1.65mm) | - | - |
|
|
KR355QD7LQ564KV01KCAP CER 0.56UF 630V X7T SMD |
2,000 |
|
Datasheet |
KR3 | Tape & Reel (TR) | Active | 0.56 µF | ±10% | 630V | X7T | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | SMD, J-Lead | 0.240" L x 0.209" W (6.10mm x 5.30mm) | - | 0.154" (3.90mm) | - | J-Lead |
.jpg)
|
800A2R7BT250XT4KCAP CER 2.7PF 250V C0G/NP0 0505 |
274 |
|
Datasheet |
ATC 800A | Tape & Reel (TR) | Active | 2.7 pF | ±0.1pF | 250V | C0G, NP0 | -55°C ~ 125°C | Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0505 (1313 Metric) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | - | 0.057" (1.45mm) | - | - |
|
100A0R7BT150XT1KCAP CER 0.7PF 150V P90 0505 |
3,648 |
|
Datasheet |
Porcelain Superchip® ATC 100A | Tape & Reel (TR) | Active | 0.7 pF | ±0.1pF | 150V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0505 (1313 Metric) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | - | 0.057" (1.45mm) | - | - |
|
SR651C474KARTR1CAP CER 0.47UF 100V X7R RADIAL |
2,326 |
|
Datasheet |
SkyCap® SR | Tape & Reel (TR) | Active | 0.47 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.300" L x 0.150" W (7.62mm x 3.81mm) | 0.400" (10.16mm) | - | 0.200" (5.08mm) | Formed Leads - Kinked |
|
KRM55QR71E226KH01KCAP CER 22UF 25V X7R SMD |
2,090 |
|
Datasheet |
KRM | Tape & Reel (TR) | Active | 22 µF | ±10% | 25V | X7R | -55°C ~ 125°C | - | - | Boardflex Sensitive | - | Surface Mount, MLCC | SMD, J-Lead | 0.240" L x 0.209" W (6.10mm x 5.30mm) | - | 0.154" (3.90mm) | - | J-Lead |
-1,30mm.jpg)
|
CDR31BP330BFUS7185CAP CER 33PF 100V BP 0805 |
244 |
|
Datasheet |
Military, MIL-PRF-55681, CDR31 | Tape & Reel (TR) | Active | 33 pF | ±1% | 100V | BP | -55°C ~ 125°C | - | - | High Reliability | S (0.001%) | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.051" (1.30mm) | - | - |
|
M39014/01-1553VCAP CER 0.1UF 50V BX RADIAL |
700 |
|
Datasheet |
Military, MIL-PRF-39014, CKR05 | Bulk | Active | 0.1 µF | ±10% | 50V | BX | -55°C ~ 125°C | - | - | High Reliability | R (0.01%) | Through Hole | Radial | 0.190" L x 0.090" W (4.83mm x 2.29mm) | 0.200" (5.08mm) | - | 0.200" (5.08mm) | Formed Leads |
|

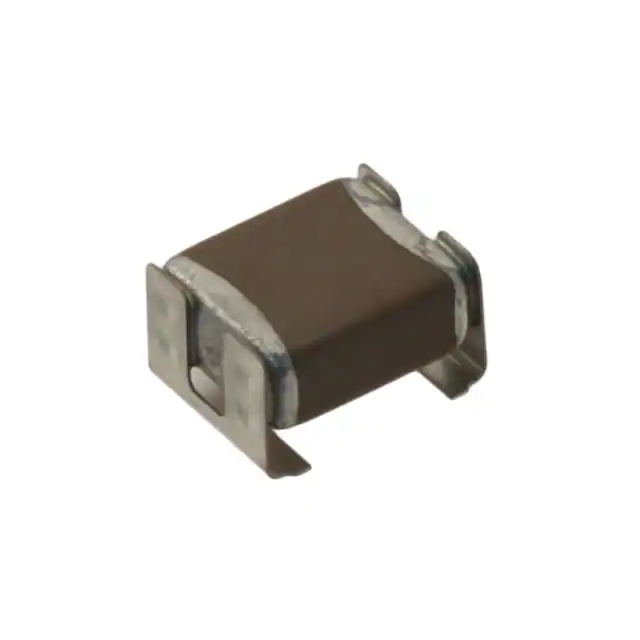

KCM55R5C3A223JDL1LCAP CER 0.022UF 1KV C0G/NP0 SMD |
320 |
|
Datasheet |
KCM | Tape & Reel (TR) | Active | 0.022 µF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | SMD, J-Lead | 0.240" L x 0.201" W (6.10mm x 5.10mm) | - | 0.154" (3.90mm) | - | J-Lead |
-2,70mm-C-Series.jpg)
|
C5750X7T2E155K200KACAP CER 1.5UF 250V X7T 2220 |
1,203 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 1.5 µF | ±10% | 250V | X7T | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.087" (2.20mm) | - | - |
|
|
C5750X7T2E155M200KACAP CER 1.5UF 250V X7T 2220 |
914 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 1.5 µF | ±20% | 250V | X7T | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.087" (2.20mm) | - | - |
|
|
C2220C332JDGACTUCAP CER 3300PF 1KV C0G/NP0 2220 |
757 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 3300 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.071" (1.80mm) | - | - |
