Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

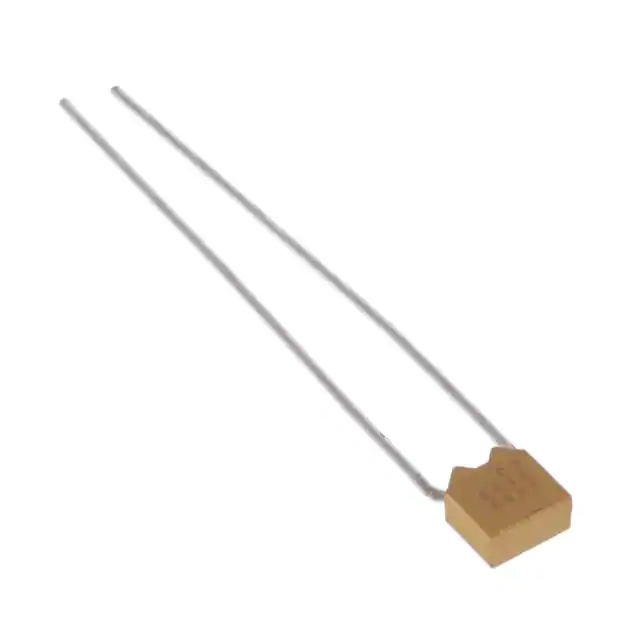

M39014/01-1593VCAP CER 0.1UF 50V BX RADIAL |
373 |
|
Datasheet |
Military, MIL-PRF-39014, CKR05 | Bulk | Active | 0.1 µF | ±10% | 50V | BX | -55°C ~ 125°C | - | - | High Reliability | S (0.001%) | Through Hole | Radial | 0.190" L x 0.090" W (4.83mm x 2.29mm) | 0.200" (5.08mm) | - | 0.200" (5.08mm) | Formed Leads |
|
C2220C122JZGACTUCAP CER 1200PF 2500V C0GNP0 2220 |
310 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 1200 pF | ±5% | 2500V (2.5kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.087" (2.20mm) | - | - |
.jpg)
|
C1812X224J5GACAUTOCAP CER 0.22UF 50V C0G/NP0 1812 |
1,385 |
|
Datasheet |
SMD Auto C0G Flex | Tape & Reel (TR) | Active | 0.22 µF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL, Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.071" (1.80mm) | - | - |
|
|
QEDB501Q300F1GV001ECAP CER 30PF 500V NP0 1111 |
1,183 |
|
Datasheet |
E | Tape & Reel (TR) | Active | 30 pF | ±1% | 500V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, High Voltage | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
-2,70mm-C-Series.jpg)
|
C2220C223JBGACAUTOCAP CER 2220 22NF 630V C0G 5% |
940 |
|
Datasheet |
SMD Auto C0G HV | Tape & Reel (TR) | Active | 0.022 µF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.106" (2.70mm) | - | - |
-2,28mm.jpg)
|
22205C225KAZ2ACAP CER 2.2UF 50V X7R 2220 |
1,463 |
|
Datasheet |
FLEXITERM® | Tape & Reel (TR) | Active | 2.2 µF | ±10% | 50V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.225" L x 0.197" W (5.72mm x 5.00mm) | - | 0.090" (2.28mm) | - | - |
|
|
CKC21C473JWGACTUKC-LINK 2220 47NF 650VDC C0G |
627 |
|
Datasheet |
KC Link Comm C0G | Tape & Reel (TR) | Active | 0.047 µF | ±5% | 650V | C0G, NP0 | -55°C ~ 150°C | Low ESL, High Voltage, High Temperature | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.061" (1.55mm) | - | - |
.JPG)
|
HV1825Y102KXMATHVCAP CER 1000PF 5KV X7R 1825 |
1,337 |
|
Datasheet |
HV | Tape & Reel (TR) | Active | 1000 pF | ±10% | 5000V (5kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.177" L x 0.252" W (4.50mm x 6.40mm) | - | 0.106" (2.70mm) | - | - |
|

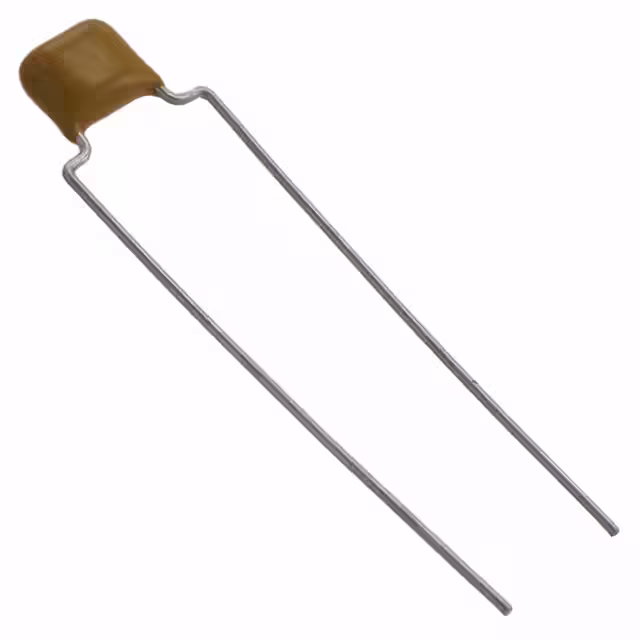

SR505A473JARCAP CER 0.047UF 50V NP0 RADIAL |
635 |
|
Datasheet |
SkyCap® SR | Bulk | Active | 0.047 µF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.500" L x 0.200" W (12.70mm x 5.08mm) | 0.560" (14.22mm) | - | 0.400" (10.16mm) | Straight |
|
AR21AC103K4RCAP CER 10000PF 1KV X7R RADIAL |
525 |
|
Datasheet |
SkyCap® AR | Bulk | Active | 10000 pF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.200" (5.08mm) | - | 0.200" (5.08mm) | Formed Leads - Kinked |
|
|
HV1825Y152KXMATHVCAP CER 1500PF 5KV X7R 1825 |
42,046 |
|
Datasheet |
HV | Tape & Reel (TR) | Active | 1500 pF | ±10% | 5000V (5kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.177" L x 0.252" W (4.50mm x 6.40mm) | - | 0.106" (2.70mm) | - | - |
|
C1812C944KARLCAUTOCAP CER 0.94UF 250V X7R 1812 |
901 |
|
Datasheet |
KONNEKT Auto X7R | Tape & Reel (TR) | Active | 0.94 µF | ±10% | 250V | X7R | -55°C ~ 125°C | Low ESL (Stacked) | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.150" (3.80mm) | - | - |
-2,03mm.jpg)
|
CDR04BX104AKWRCAP CER 0.1UF 50V 10% BX 1812 |
241 |
|
Datasheet |
Military, MIL-PRF-55681, CDR04 | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 50V | BX | -55°C ~ 125°C | - | - | High Reliability | R (0.01%) | Surface Mount, MLCC | 1812 (4532 Metric) | 0.180" L x 0.125" W (4.57mm x 3.18mm) | - | 0.080" (2.03mm) | - | - |
|
|
100A470JT150XT1KCAP CER 47PF 150V P90 0505 |
7,475 |
|
Datasheet |
Porcelain Superchip® ATC 100A | Tape & Reel (TR) | Active | 47 pF | ±5% | 150V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0505 (1313 Metric) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | - | 0.057" (1.45mm) | - | - |
|
|
GRM32D5C3A472FWA1KCAP CER 4700PF 1KV C0G/NP0 1210 |
3,660 |
|
Datasheet |
GRM | Tape & Reel (TR) | Active | 4700 pF | ±1% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.079" (2.00mm) | - | - |
.jpg)
|
1210E103K251KHTCAP CER 10000PF 250V 1210 |
2,420 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 10000 pF | ±10% | 250V | - | -55°C ~ 200°C | High Temperature | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.125" L x 0.100" W (3.18mm x 2.54mm) | - | 0.065" (1.65mm) | - | - |
.jpg)
|
KTS501B684M76N0T00CAP CER 0.68UF 500V X7R 3025 |
1,560 |
|
Datasheet |
NTS | Tape & Reel (TR) | Active | 0.68 µF | ±20% | 500V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 3025 (7563 Metric) | 0.295" L x 0.248" W (7.50mm x 6.30mm) | - | - | - | - |
|
CKC18C472JDGACAUTOCAP CER 4.7NF 1000V C0G 1812 |
1,300 |
|
Datasheet |
KC Link Auto C0G | Tape & Reel (TR) | Active | 4700 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 150°C | Low ESL, High Voltage, High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.055" (1.40mm) | - | - |
|
|
C2220C473J5GACTUCAP CER 0.047UF 50V C0G/NP0 2220 |
2,617 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 0.047 µF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.045" (1.15mm) | - | - |
|
|
CDR04BX104AKSR7189CAP CER 0.1UF 50V BX 1812 |
983 |
|
Datasheet |
Military, MIL-PRF-55681, CDR04 | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 50V | BX | -55°C ~ 125°C | - | - | High Reliability | R (0.01%) | Surface Mount, MLCC | 1812 (4532 Metric) | 0.180" L x 0.125" W (4.57mm x 3.18mm) | - | 0.080" (2.03mm) | - | - |
