Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-4,50x3,20x2,7mm.jpg)
|
C1812X104J1GACAUTOCAP CER 0.1UF 100V C0G/NP0 1812 |
352 |
|
Datasheet |
SMD Auto C0G Flex | Tape & Reel (TR) | Active | 0.1 µF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL, Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.055" (1.40mm) | - | - |
|
CKC21C393JWGACAUTOCAP CER 39NF 650V C0G 2220 |
292 |
|
Datasheet |
KC Link Auto C0G | Tape & Reel (TR) | Active | 0.039 µF | ±5% | 650V | C0G, NP0 | -55°C ~ 150°C | Low ESL, High Voltage, High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.061" (1.55mm) | - | - |
.jpg)
|
0805BW106K160YTCAP CER 10UF 16V X5R 0805 |
11,771 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 10 µF | ±10% | 16V | X5R | -55°C ~ 85°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.080" L x 0.050" W (2.03mm x 1.27mm) | - | 0.054" (1.37mm) | - | - |
-1.8.jpg)
|
CGA9M4X7T2W684K200KACAP CER 0.68UF 450V X7T 2220 |
763 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 0.68 µF | ±10% | 450V | X7T | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.087" (2.20mm) | - | - |
-2.8.jpg)
|
CGA9P1X7T2J474M250KCCAP CER 0.47UF 630V X7T 2220 |
548 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 0.47 µF | ±20% | 630V | X7T | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.110" (2.80mm) | - | - |
.jpg)
|
600F5R6AT250XTCAP CER 5.6PF 250V NP0 0805 |
2,183 |
|
Datasheet |
ATC 600F | Tape & Reel (TR) | Active | 5.6 pF | ±0.05pF | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.24mm) | - | 0.051" (1.30mm) | - | - |
|
C2225X223KGRACTUCAP CER 0.022UF 2KV X7R 2225 |
1,771 |
|
Datasheet |
SMD Comm X7R HV Flex | Tape & Reel (TR) | Active | 0.022 µF | ±10% | 2000V (2kV) | X7R | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | - | Boardflex Sensitive | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.232" L x 0.252" W (5.90mm x 6.40mm) | - | 0.106" (2.70mm) | - | - |
-2,70mm-C-Serics.jpg)
|
C2225C154KDRACAUTOCAP CER 2225 150NF 1000V X7R 10% |
1,363 |
|
Datasheet |
SMD Auto X7R HV | Tape & Reel (TR) | Active | 0.15 µF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | Low ESL, High Voltage | AEC-Q200 | Automotive, Bypass, Decoupling | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.220" L x 0.252" W (5.60mm x 6.40mm) | - | 0.106" (2.70mm) | - | - |
|
|
600F121FT250XT4KCAP CER 120PF 250V NP0 0805 |
4,021 |
|
Datasheet |
ATC 600F | Tape & Reel (TR) | Active | 120 pF | ±1% | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.24mm) | - | 0.051" (1.30mm) | - | - |
|
KCA55Q7UMF472KL01LCAP CER 4700PF 250V U2J SMD |
2,649 |
|
Datasheet |
KCA | Tape & Reel (TR) | Active | 4700 pF | ±10% | 250V | U2J | -55°C ~ 125°C | - | AEC-Q200, X1, Y2 | Safety, Automotive | - | Surface Mount, MLCC | SMD, J-Lead | 0.240" L x 0.201" W (6.10mm x 5.10mm) | - | 0.118" (3.00mm) | - | J-Lead |
|
FG23X7R2A475KNT06CAP CER 4.7UF 100V X7R RAD |
1,084 |
|
Datasheet |
FG | Cut Tape (CT) | Active | 4.7 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.335" L x 0.217" W (8.50mm x 5.50mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
|
C1812C202JFGACTUCAP CER 2000PF 1.5KV C0G 1812 |
366 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 2000 pF | ±5% | 1500V (1.5kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.087" (2.20mm) | - | - |
-5,60x6,40x1,55mm.jpg)
|

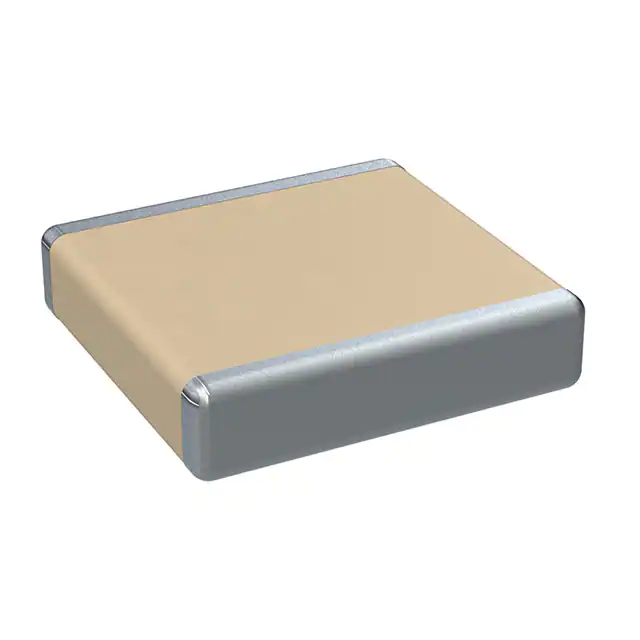

C2225C332KHRACAUTOCAP CER 3300PF 3KV X7R 2225 |
297 |
|
Datasheet |
SMD Auto X7R HV | Tape & Reel (TR) | Active | 3300 pF | ±10% | 3000V (3kV) | X7R | -55°C ~ 125°C | Low ESL, High Voltage | AEC-Q200 | Automotive, Bypass, Decoupling | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.220" L x 0.252" W (5.60mm x 6.40mm) | - | 0.061" (1.55mm) | - | - |
|
|
FG23X7R2A475KNT00CAP CER 4.7UF 100V X7R RADIAL |
175 |
|
Datasheet |
FG | Bulk | Active | 4.7 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.335" L x 0.217" W (8.50mm x 5.50mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
|
C0805R684K3RACTUCAP CER 0.68UF 25V X7R 0805 |
3,675 |
|
Datasheet |
SMD Indust X7R HT175C | Tape & Reel (TR) | Active | 0.68 µF | ±10% | 25V | X7R | -55°C ~ 175°C | Soft Termination, High Temperature | - | Boardflex Sensitive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.055" (1.40mm) | - | - |
|
|
C2220C223JBGACTUCAP CER 0.022UF 630V NP0 2220 |
8,656 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 0.022 µF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.106" (2.70mm) | - | - |
.jpg)
|
0603BW225K160NGTCAP CER 2.2UF 16V X5R 0603 |
4,163 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 2.2 µF | ±10% | 16V | X5R | -55°C ~ 85°C | Bonding Mountable, Gold Flash Termination | - | SMPS Filtering | - | Surface Mount, MLCC, Epoxy | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.89mm) | - | - |
-2,70mm-C-Series.jpg)
|
C2220C104JBGACAUTOCAP CER 0.1UF 630V C0G/NP0 2220 |
486 |
|
Datasheet |
SMD Auto C0G HV | Tape & Reel (TR) | Active | 0.1 µF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.106" (2.70mm) | - | - |
.jpg)
|

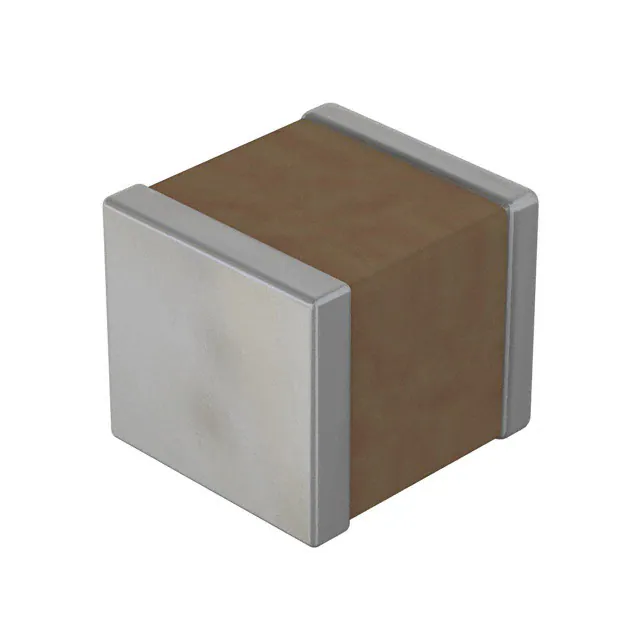

RF0505X103K500KX057TCAP CER 10000PF 50V BX 0505 |
5,000 |
|
Datasheet |
RF | Tape & Reel (TR) | Active | 10000 pF | ±10% | 50V | BX | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0505 (1313 Metric) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | - | 0.057" (1.45mm) | - | - |
|
FA22NP02W683JNU06CAP CER 0.068UF 450V NP0 RAD |
4,083 |
|
Datasheet |
FA | Cut Tape (CT) | Active | 0.068 µF | ±5% | 450V | C0G, NP0 | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.295" L x 0.177" W (7.50mm x 4.50mm) | 0.335" (8.50mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
