Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LGU1V123MELBCAP ALUM 12000UF 20% 35V SNAP TH |
0 |
|
Datasheet |
LGU | Bulk | Active | 12000 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.28 A @ 120 Hz | 3.772 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
80MXC2700MEFCSN25X35CAP ALUM 2700UF 20% 80V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 2700 µF | ±20% | 80 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.39 A @ 120 Hz | 2.7485 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
B43544E2477M067CAP ALUM SNAP |
0 |
|
Datasheet |
B43544 | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
PEH532YAE3120M2CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH532 | Box | Active | 120 µF | ±20% | 450 V | 760mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 700 mA @ 100 Hz | 2 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
380LQ102M160J022CAP ALUM 1000UF 20% 160V SNAP TH |
0 |
|
Datasheet |
380LQ | Bulk | Obsolete | 1000 µF | ±20% | 160 V | 199mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3 A @ 120 Hz | 4.2 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
380LX102M160J452CAP ALUM 1000UF 20% 160V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Obsolete | 1000 µF | ±20% | 160 V | 199mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3 A @ 120 Hz | 4.2 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
380LX103M025A202CAP ALUM 10000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Obsolete | 10000 µF | ±20% | 25 V | 60mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.7 A @ 120 Hz | 3.1 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
380LX472M050A202CAP ALUM 4700UF 20% 50V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Obsolete | 4700 µF | ±20% | 50 V | 80mOhm | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.1 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
381LX151M400H052CAP ALUM 150UF 20% 400V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Obsolete | 150 µF | ±20% | 400 V | 1.326Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 800 mA @ 120 Hz | 1.1 A @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
381LX152M100J042CAP ALUM 1500UF 20% 100V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Obsolete | 1500 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.1 A @ 120 Hz | 3.15 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

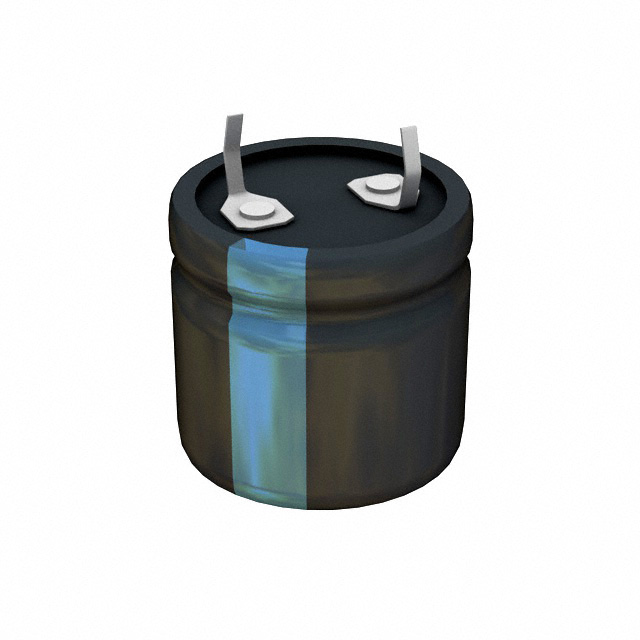

381LX152M100K022CAP ALUM 1500UF 20% 100V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Obsolete | 1500 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.1 A @ 120 Hz | 3.15 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
381LX221M350K022CAP ALUM 220UF 20% 350V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Obsolete | 220 µF | ±20% | 350 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.4 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
381LX391M250K012CAP ALUM 390UF 20% 250V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Obsolete | 390 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.8 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
400HXC100MEFCSN25X25CAP ALUM 100UF 20% 400V SNAP TH |
0 |
|
Datasheet |
HXC | Bulk | Active | 100 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 990 mA @ 120 Hz | 1.386 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ELD227M450AS4AACAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ELD | Bulk | Active | 220 µF | ±20% | 450 V | 1.507Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.38 A @ 120 Hz | 1.932 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
B41505F8228M000CAP ALUM 2200UF 20% 63V SNAP TH |
0 |
|
Datasheet |
B41505 | Bulk | Not For New Designs | 2200 µF | ±20% | 63 V | 80mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.8 A @ 100 Hz | - | 85 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ELXM221VSN561MP50SCAP ALUM 560UF 20% 220V SNAP TH |
0 |
|
Datasheet |
LXM | Bulk | Active | 560 µF | ±20% | 220 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.63 A @ 120 Hz | 2.445 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
100VXG1500MEFCSN22X50CAP ALUM 1500UF 20% 100V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 1500 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 2.3 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
LSM472M1K---3535SCAP ALUM 80V POLAR |
0 |
|
- |
LSM | Active | 4.7 mF | ±20% | 80 V | 71mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.8 A @ 120 Hz | 3.92 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | ||
|
|
B43547A5107M002CAP ALUM SNAP |
0 |
|
Datasheet |
B43547 | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
