Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LLS2Z122MELCCAP ALUM 1200UF 20% 180V SNAP TH |
0 |
|
Datasheet |
LLS | Bulk | Active | 1200 µF | ±20% | 180 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.49 A @ 120 Hz | 5.235 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
MAL211838108E3CAP ALUM 1UF 20% 63V AXIAL TH |
0 |
|
Datasheet |
118 AHT | Cut Tape (CT) | Obsolete | 1 µF | ±20% | 63 V | 110Ohm | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | - | 21.32 mA @ 10 kHz | 22 Ohms | - | 0.256" Dia x 0.709" L (6.50mm x 18.00mm) | - | - | Through Hole | |
|
MAL209453221E3CAP ALUM 220UF 20% 250V SNAP TH |
0 |
|
Datasheet |
094 PME-SI | Tape & Box (TB) | Active | 220 µF | ±20% | 250 V | 410mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.33 A @ 120 Hz | - | 250 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL213847102E3CAP ALUM 1000UF 20% 40V SNAP TH |
0 |
|
Datasheet |
138 AML | Tape & Reel (TR) | Active | 1000 µF | ±20% | 40 V | 170mOhm @ 100kHz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 970 mA @ 100 Hz | - | 140 mOhms | - | 0.591" Dia (15.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
LLG2G271MELZ40CAP ALUM 270UF 20% 400V SNAP TH |
0 |
|
Datasheet |
LLG | Bulk | Active | 270 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.145 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LHM221M2W---2540SCAP ALUM 450V POLAR |
0 |
|
- |
LHM | Active | 220 µF | ±20% | 450 V | 905mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.05 A @ 120 Hz | 1.47 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | ||
|
|
MAL204245229E3CAP ALUM 22UF 350V AXIAL TH |
0 |
|
Datasheet |
042 ASH | Tape & Box (TB) | Active | 22 µF | -10%, +50% | 350 V | 6.8Ohm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 250 mA @ 100 Hz | - | 4.5 Ohms | 0.689" (17.50mm) | 0.591" Dia (15.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
SLP151M420E1P3CAP ALUM 150UF 20% 420V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 150 µF | ±20% | 420 V | 2.212Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 880 mA @ 120 Hz | 1.29 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
108LBB160M2CFCAP ALUM 1000UF 20% 160V SNAP TH |
0 |
|
Datasheet |
LBB | Bulk | Active | 1000 µF | ±20% | 160 V | 165.79mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.02 A @ 120 Hz | 4.4394 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ELXM401VSN181MQ35SCAP ALUM 180UF 20% 400V SNAP TH |
0 |
|
Datasheet |
LXM | Bulk | Active | 180 µF | ±20% | 400 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.01 A @ 120 Hz | 1.4443 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LAS2G820MELZ25CAP ALUM 82UF 20% 400V SNAP TH |
0 |
|
Datasheet |
LAS | Bulk | Active | 82 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 640 mA @ 120 Hz | 736 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|

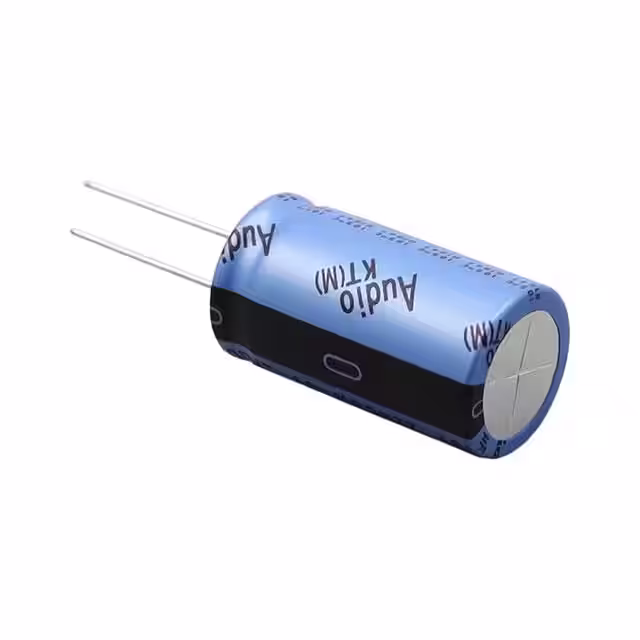

UKT1A223MRDCAP ALUM 22000UF 20% 10V RADIAL |
0 |
|
Datasheet |
UKT | Bulk | Obsolete | 22000 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Audio | 2.65 A @ 120 Hz | 3.048 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.634" (41.50mm) | - | Through Hole | |
|
|
MAL213848471E3CAP ALUM 470UF 20% 63V SNAP TH |
0 |
|
Datasheet |
138 AML | Tape & Reel (TR) | Active | 470 µF | ±20% | 63 V | 260mOhm @ 100kHz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 860 mA @ 100 Hz | - | 160 mOhms | - | 0.591" Dia (15.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
LLG2C122MELB25CAP ALUM 1200UF 20% 160V SNAP TH |
0 |
|
Datasheet |
LLG | Bulk | Active | 1200 µF | ±20% | 160 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.05 A @ 120 Hz | 4.575 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
LLG2Z102MELB25CAP ALUM 1000UF 20% 180V SNAP TH |
0 |
|
Datasheet |
LLG | Bulk | Active | 1000 µF | ±20% | 180 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.65 A @ 120 Hz | 3.975 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
LSG271M2W---2550SCAP ALUM 450V POLAR |
0 |
|
- |
LSG | Active | 270 µF | ±20% | 450 V | 737mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.21 A @ 120 Hz | 1.7303 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | ||
|
|
AFK688M06P44VT-FCAP ALUM 6800UF 20% 6.3V SMD |
0 |
|
Datasheet |
AFK_V | Tape & Reel (TR) | Active | 6800 µF | ±20% | 6.3 V | 35mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 1.35 A @ 120 Hz | - | 35 mOhms | - | 0.630" Dia (16.00mm) | 0.681" (17.30mm) | 0.327" L x 0.374" W (8.30mm x 9.50mm) | Surface Mount | |
|
LKG1J681MESBCKCAP ALUM 680UF 20% 63V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 680 µF | ±20% | 63 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.9 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
ELD187M450AS3AACAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ELD | Bulk | Active | 180 µF | ±20% | 450 V | 1.842Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.24 A @ 120 Hz | 1.736 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
PEH506YAC2680M2CAP ALUM SNAP-IN 85C |
0 |
|
Datasheet |
PEH506 | Box | Active | 68 µF | ±20% | 450 V | 1.3Ohm @ 100Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 800 mA @ 100 Hz | 3.5 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole |
